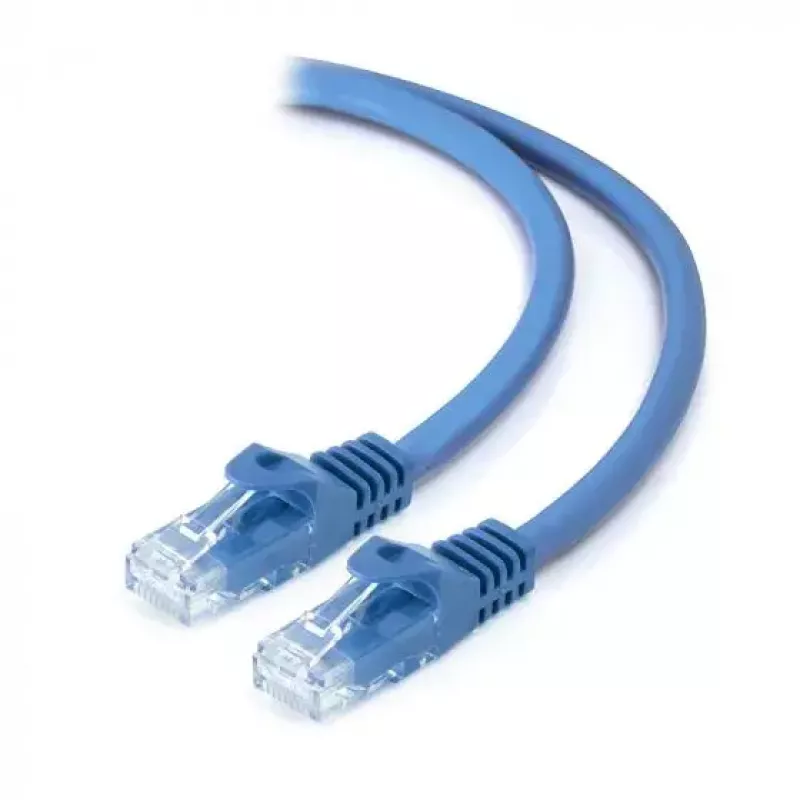

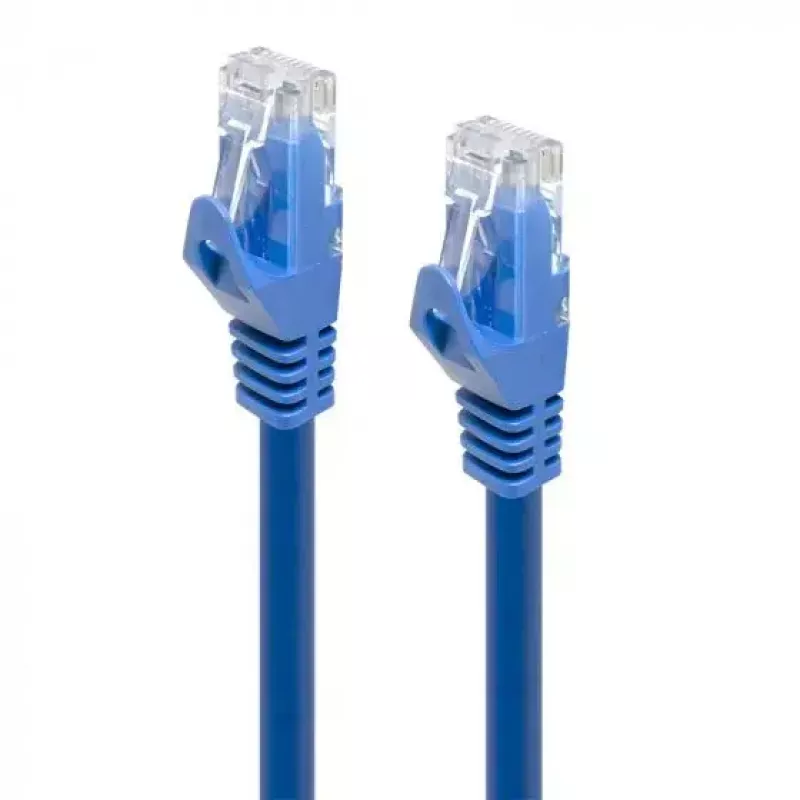

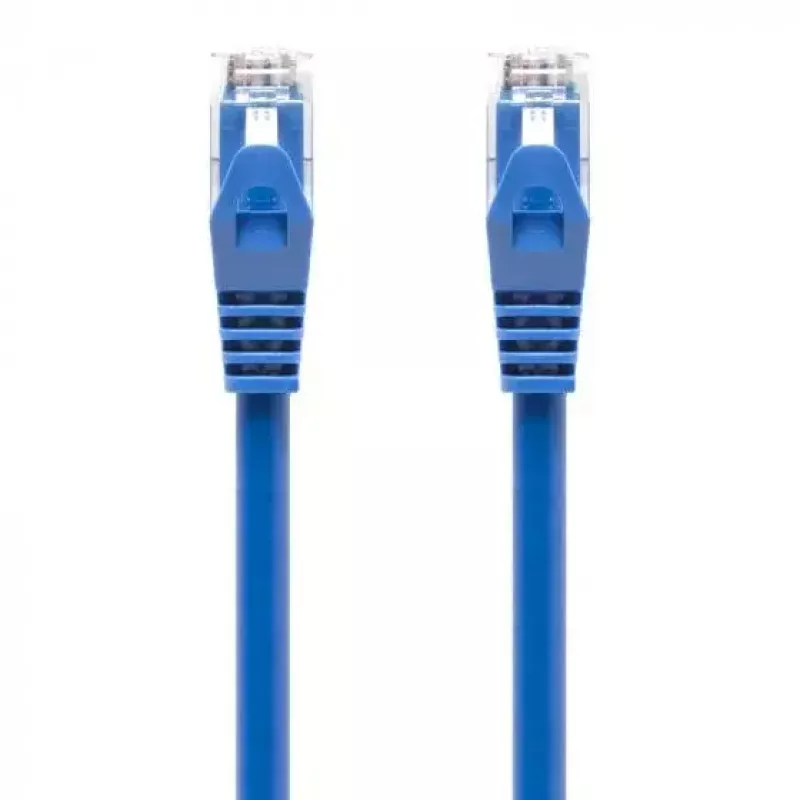

Verkkokaapeli ALOGIC sininen CAT6 LSZH 10 m

The ALOGIC Blue CAT6 LSZH 10m network cable provides a 10-metre connection for Ethernet devices, wired to the 568B standard and compliant with EU specifications. Constructed with four pairs of 24 AWG insulated copper conductors and a central cross separator, the cable is designed to support high-speed and multi-gigabit data transfer while meeting safety requirements using LSZH (Low Smoke Zero Halogen) material. RJ-45 connectors with gold plating deliver reliable contacts for data, voice and video signals.

Advantages

CAT6 construction with a cross separator reduces crosstalk and insertion loss, improving signal integrity and enabling higher data rates up to 1000 Mbit/s. Gold-plated RJ-45 connectors improve contact reliability and transmission clarity. The snagless boot protects connectors during installation, and the LSZH jacket minimises toxic and corrosive gases in the event of fire, making the cable suitable for indoor installations in homes and offices.

Suitable for

• Connecting PCs, switches and routers in home or office networks
• Transferring voice, video and data over Ethernet
• Structured cabling runs where low-smoke, zero-halogen materials are required

Key specifications

• Length: 10 m
• Cable type: CAT6, 4 pairs, 24 AWG
• Wiring: 568B
• Connector: RJ-45 with gold-plated contacts
• Material: LSZH jacket
• Data rate: up to 1000 Mbit/s
• MPN: C6-10B-BLUE

How to use

Connect one RJ-45 connector to your network device (PC, switch or router) and the other end to the corresponding port on the network equipment. Ensure connectors are fully inserted until the latch clicks. Route the cable avoiding sharp bends and mechanical strain; use cable management accessories as needed. For structured installations, follow the 568B wiring standard already implemented in the cable.

Recommendations

For best performance, avoid running the cable parallel to high-voltage power lines and keep bend radius greater than four times the cable diameter. Inspect connectors for damage before installation and replace the cable if the jacket or conductors are compromised.
