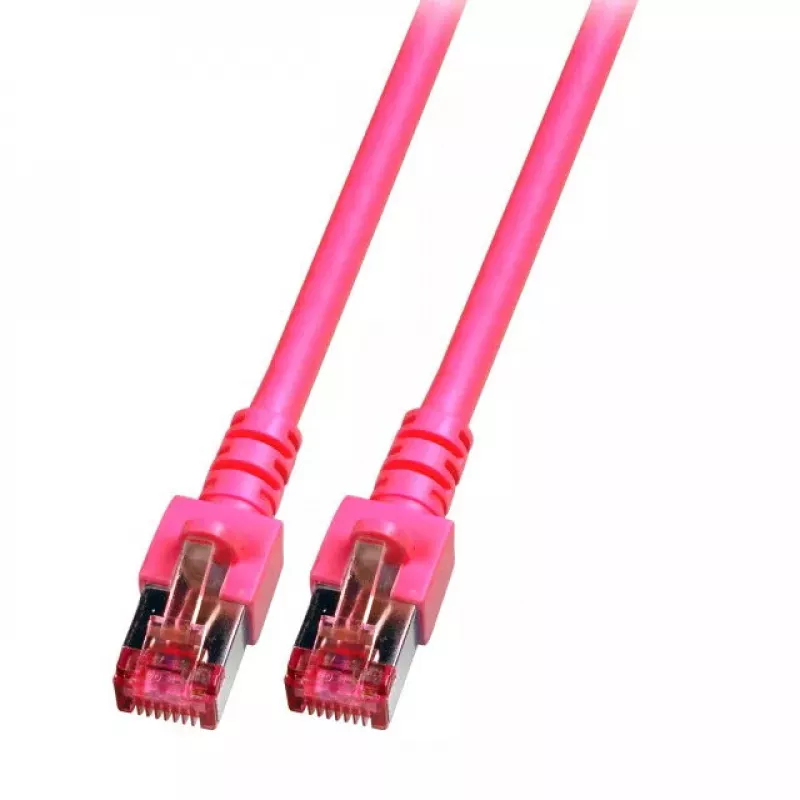

Verkkokaapeli EFB Elektronik K5519.15 RJ-45 Cat6 15 m magenta

1 Gigabit Ethernet Cat.6 250 MHz patch cable with shielded RJ45 connectors and moulded strain relief boot. The cable is S/FTP construction with four twisted pairs (4 x 2) using AWG27/7 conductors and a pitch-in-metal foil (PiMF) shield. It is coded for TIA/EIA 568B wiring and has a diameter of approximately 6.2 mm. The cable meets common fire and safety standards and uses a low-smoke, halogen-free (LSZH) jacket.

Advantages

The shielded S/FTP design and IEC 60603-7-5 compliant RJ45 plugs reduce electromagnetic interference and improve signal integrity for Gigabit Ethernet connections. The LSZH jacket limits harmful gases and smoke in case of fire while meeting IEC 60332-1, IEC 60754-2 and IEC 61034 requirements. Moulded strain relief and latch protection increase connector durability and reduce risk of connector damage during installation and use.

Key specifications

• Category: Cat.6
• Bandwidth: 250 MHz
• Data rate: 1 Gigabit Ethernet
• Connector type: 2 x RJ45 shielded (IEC 60603-7-5)
• Cable structure: S/FTP, 4 x 2 x AWG27/7, PiMF
• Coding: TIA/EIA 568B
• Diameter: Ø ≈ 6.2 mm
• Jacket: LSZH (low smoke, halogen-free)
• Fire and safety: IEC 60332-1, IEC 60754-2, IEC 61034
• Features: Moulded strain relief boot with latch protection

How to use

Terminate each end into RJ45 ports following the TIA/EIA 568B pinout. Insert the shielded RJ45 plugs into compatible shielded ports or patch panels to maintain continuity of the cable shield. Route the cable without sharp bends and avoid tight bends less than the recommended bend radius to preserve performance. Ensure connectors are fully seated until the latch engages; the moulded strain relief reduces stress at the connector during handling.

Recommendations

Use this Cat.6 S/FTP patch cable for reliable 1 Gigabit Ethernet links in environments where EMI protection and low-smoke, halogen-free materials are required, such as offices, data centers, and industrial spaces. Verify that both devices and patch panels support shielded connections to benefit from the cable's shielding.
