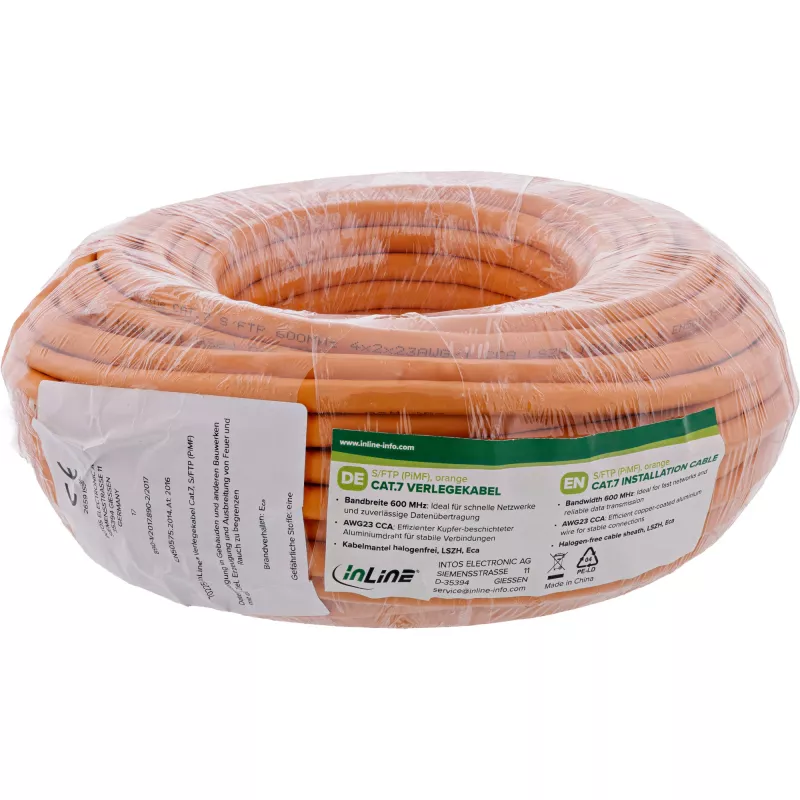

Verkkokaapeli InLine 70250I RJ45 Cat.7 600MHz 1m oranssi

Cost-effective network cabling:High-quality CCA conductor material with 20% copper content offers reliable performance at an attractive price.
Future-proof with 600 MHz performance:Ideal for structured building cabling with Cat.7 standard up to 70 m permanent link.
PoE and PoE+ support:Suitable for modern network applications with IEEE 802.3af and 802.3at – ideal for access points, cameras and IP telephones.

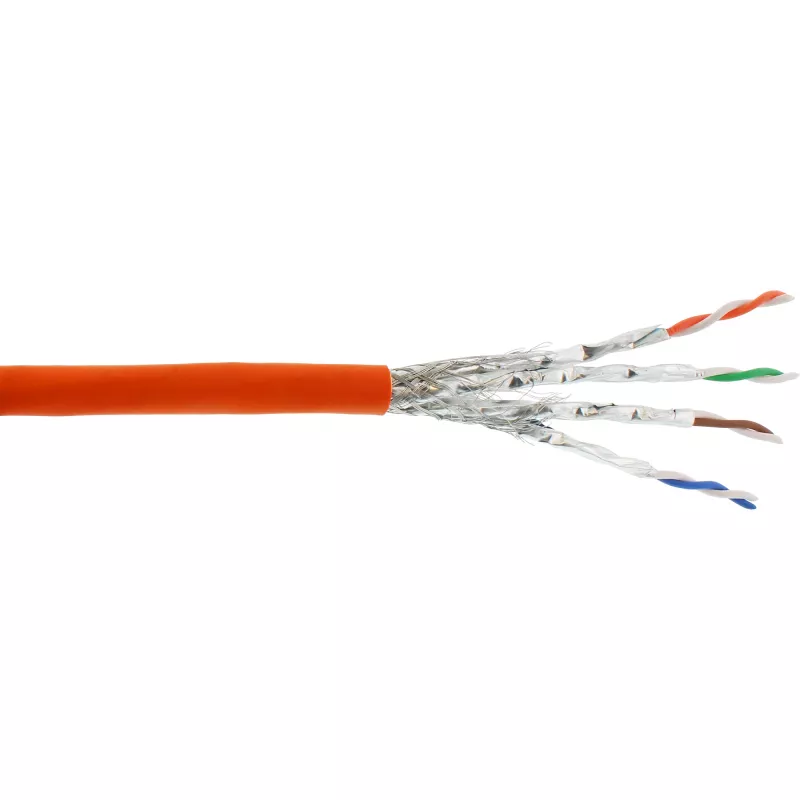

Robust shielding for EMC-critical environments:S/FTP (PiMF) with AL foil and braiding offers high interference immunity.
Halogen-free sheath:Safety in case of fire thanks to reduced smoke emission thanks to LSZH material.

InLine® Cat.7 installation cables with S/FTP construction (PiMF) and AWG23 conductors made of copper-coated aluminium offer a powerful and economical solution for professional network projects. With a transmission frequency of up to 600 MHz and a permanent link length of up to 70 metres, the cables are ideal for structured building cabling in residential and commercial properties.
Thanks to their support for IEEE 802.3af (PoE) and 802.3at (PoE+), the cables enable power-supply devices to be operated directly via the network – without additional power cables. The double shielding consisting of aluminium foil (≥25%) and aluminium-magnesium braiding (≥30%) ensures stable and reliable signal transmission even in interference-prone environments.
The LSZH (Low Smoke Zero Halogen) sheath material used complies with CPR classification Eca and thus offers increased safety in the event of fire. The orange sheathing also ensures quick identification during installation.
The various pre-assembled lengths allow for flexible planning and economical implementation – ideal for professional applications with a focus on price-performance.

Conductor material: copper-coated aluminium (CCA), 20% copper content
Cores: 8 conductors (4 pairs)
AWG: 23
Construction: 1/0.57 mm
Insulation diameter: 1.35 mm
Sheath material: LSZH
Sheath thickness: 0.55 mm ±0.05
Outer diameter: 7.6 mm ±0.3
Shielding: AL foil ≥25%
Braiding: AL-MG ≥30%
PoE support: IEEE 802.3af and 802.3at
Standards: ISO/IEC 11801, EN 50575, IEC 60332-1-2
CPR classification: Eca

InLine 70250I. Cable length: 50 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s, Product colour: Orange

How to use

Connect one RJ45 plug to the network device (router, switch or patch panel) and the other plug to the endpoint (PC, NAS, access point, camera or VoIP phone). Ensure connectors are fully inserted and latched to achieve reliable contact. Route the cable to avoid sharp bends and sources of strong electromagnetic interference; maintain appropriate bend radius and secure the cable to prevent strain on the terminations. For permanent installations, verify compatibility with patch panels and feed-through points used in the structured cabling.

Recommendations

For best signal performance, avoid routing the cable parallel and close to mains power lines and large electrical equipment. Use the cable for indoor installations where halogen-free jackets are required and choose the 1 m length for short patch connections in racks or workstations. When deploying PoE+ devices, confirm the power budget of the switch or injector to ensure proper device operation.
