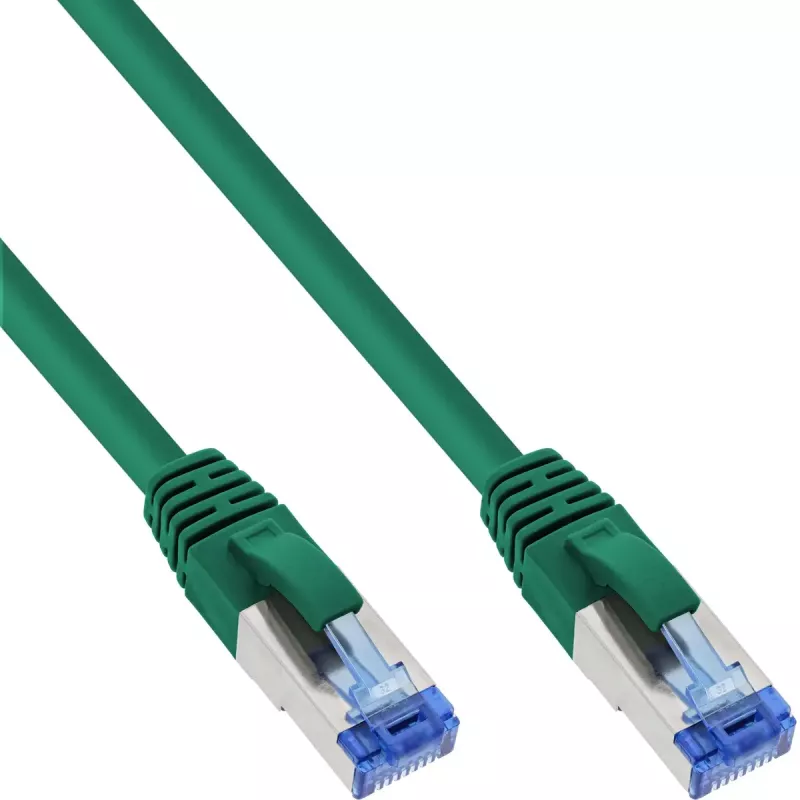

InLine B-76803G Cat6A S/FTP (PiMF) halogeeniton patch-kaapeli, 3 m, vihreä, 25 kpl:n pakkaus

The InLine B-76803G is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 25-pack. It features a solid copper core, overall braided shield with pair-wise foil shielding, and RJ45 connectors with gold-plated contacts.

Key features

• Cat6A S/FTP (PiMF) shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500MHz
• Includes enclosed test report
• PoE/PoE+/PoE++ support
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Max. supported data transfer rate: 10Gb/s

Specifications

• Brand: InLine
• MPN: B-76803G
• Product colour: Green
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper core
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Length: 3m
• Connector type: RJ45 plug straight (both sides)
• Assignment: 1:1
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Compliant with standards: IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Assignment according to TIA/EIA 568B2.1
• Country of origin: Taiwan
