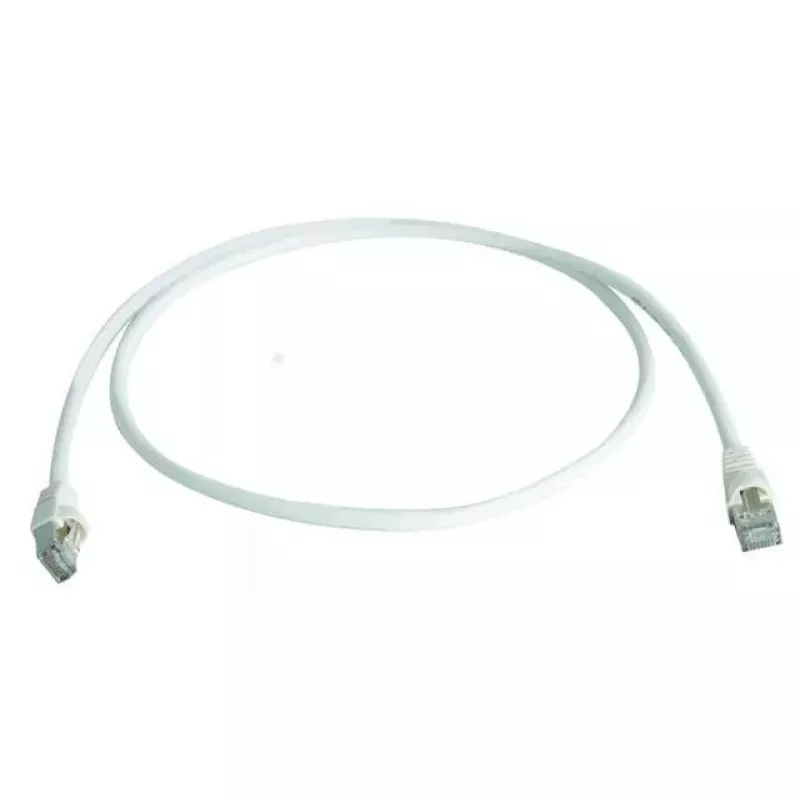

Verkkokaapeli Telegärtner MP8 FS500 LSZH 1 m

The Telegärtner MP8 FS500 LSZH 1m is a Cat6a networking cable with SF/UTP shielding, designed for reliable high-speed data transfer up to 10000 Mbit/s. It comes with moulded RJ-45 plugs featuring copper plating and a strain-relieved moulded boot; the cable jacket and boot are available in PVC or LSZH (Low Smoke Zero Halogen) versions. Colour options include grey, green, red, blue, yellow, black, white and purple, and there are variants with a very short boot for tight spaces.

Advantages

360-degree plug shielding on shielded cable types provides improved EMI protection. The moulded strain relief boot and flexible construction reduce mechanical stress at the connector, while the available 90°, 180° and 270° moulded boot shapes with latch protection enable secure connections in different cable routing situations. LSZH jacket option reduces toxic and corrosive gas emissions in case of fire.

Suitable for

• High-speed Ethernet networks (up to 10 Gbit/s)
• Office and data centre patching
• Installations requiring low-smoke, zero-halogen cabling
• Tight or angled cable runs using 90°/180°/270° boot variants

Key specifications

• Category: Cat6a
• Shielding: SF/UTP (select models shielded)
• Connector: RJ-45 with copper plating
• Length: 1 m
• Data rate: up to 10000 Mbit/s
• Boot types: 90°, 180°, 270°, straight and very short boot variants
• Boot and jacket material: PVC or LSZH
• Colours: grey, green, red, blue, yellow, black, white, purple

How to use

Connect the RJ-45 plugs to compatible Ethernet ports on networking equipment such as switches, routers or network interface cards. Choose the boot orientation (90°, 180°, 270° or straight/very short) that best fits the routing and space constraints. Ensure connectors are fully inserted until the latch clicks to secure the connection. For shielded cable variants, verify proper grounding on both ends if required by the installation.

Recommendations

For best performance, avoid sharp bends and excessive pulling force; maintain bend radii recommended for Cat6a cables and use appropriate cable management. Use the LSZH variant in enclosed or public buildings where reduced smoke and halogen-free materials are required.
