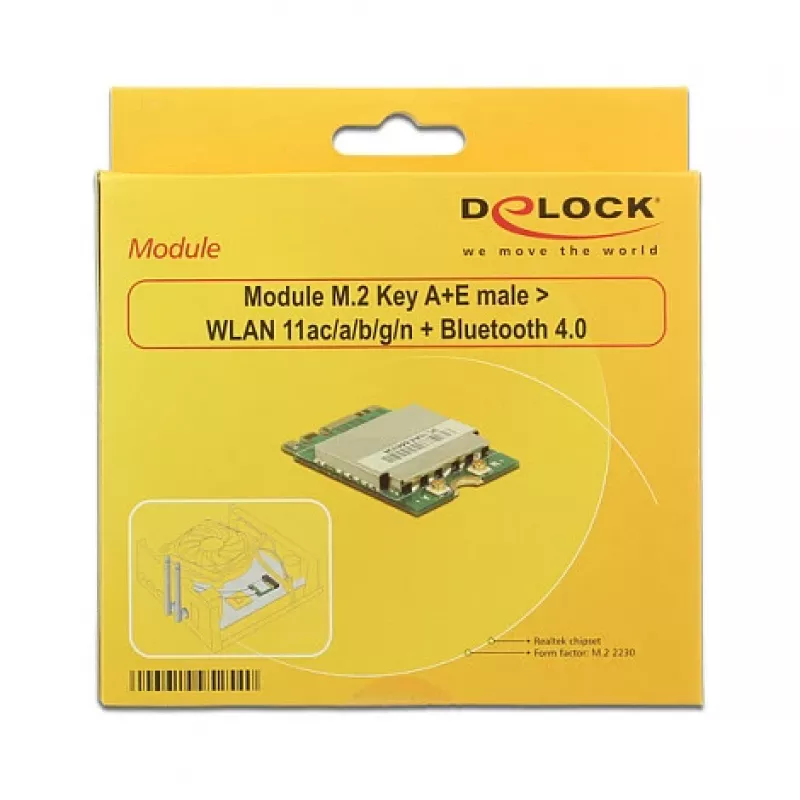

Verkkokortti DeLOCK 95254 WLAN Bluetooth 433,3 Mbit/s

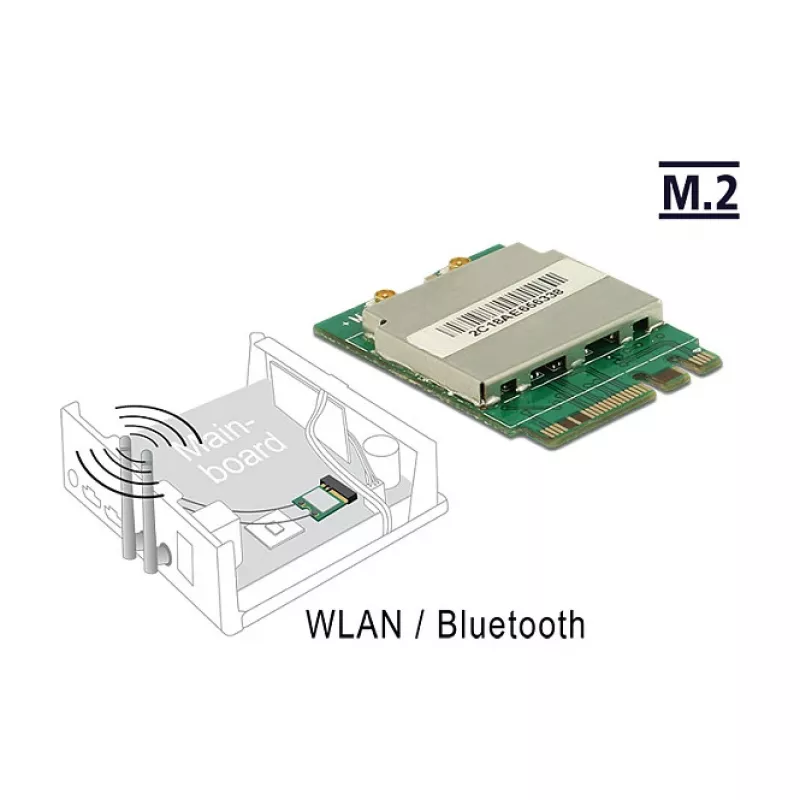

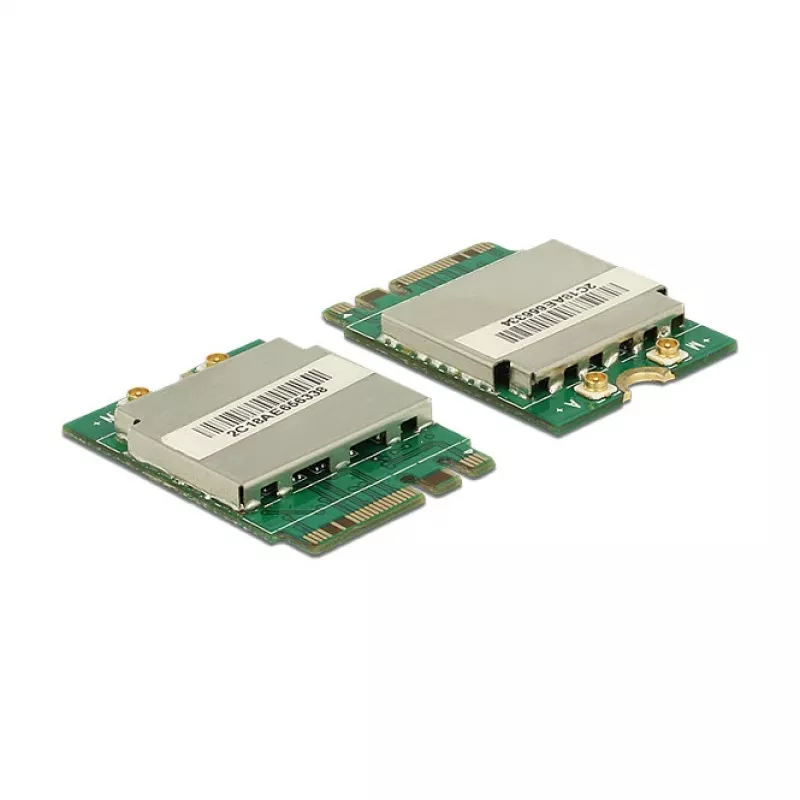

The DeLOCK 95254 is an M.2 network card that fits into M.2 slots with key A or key E and provides combined WLAN and Bluetooth connectivity. The card offers a single-band Wi‑Fi 5 (802.11ac) WLAN interface with a maximum data transfer rate of 433.3 Mbit/s over the 2.4 GHz band and a Bluetooth interface that communicates with the host via USB. The module uses PCIe for the WLAN signal path and presents a compact green and silver M.2 form factor suitable for compact systems and laptops.

Advantages

The module integrates both WLAN and Bluetooth on a single M.2 card, saving board space and simplifying upgrades. WLAN communication is handled via PCIe for efficient throughput while Bluetooth uses a USB interface for broad driver compatibility. The card supports common 802.11 standards ensuring interoperability with a wide range of wireless networks and devices.

Suitable for

Key specifications

How to use

Power down the system and open the chassis or access panel. Locate an available M.2 slot with key A or key E and insert the DeLOCK 95254 module at the correct angle, then secure it with the M.2 screw. Close the chassis and power on the system. Install any required drivers or operating system updates so that the WLAN (PCIe) and Bluetooth (USB) interfaces are recognized and functional. Configure network settings through the operating system’s network manager.

Recommendations

Ensure the host device supports M.2 Key A or E and has driver support for Wi‑Fi 5 (802.11ac) and the Bluetooth profile required by your peripherals. For optimal WLAN performance, place the device in an environment with minimal radio interference and ensure firmware/drivers are up to date.
