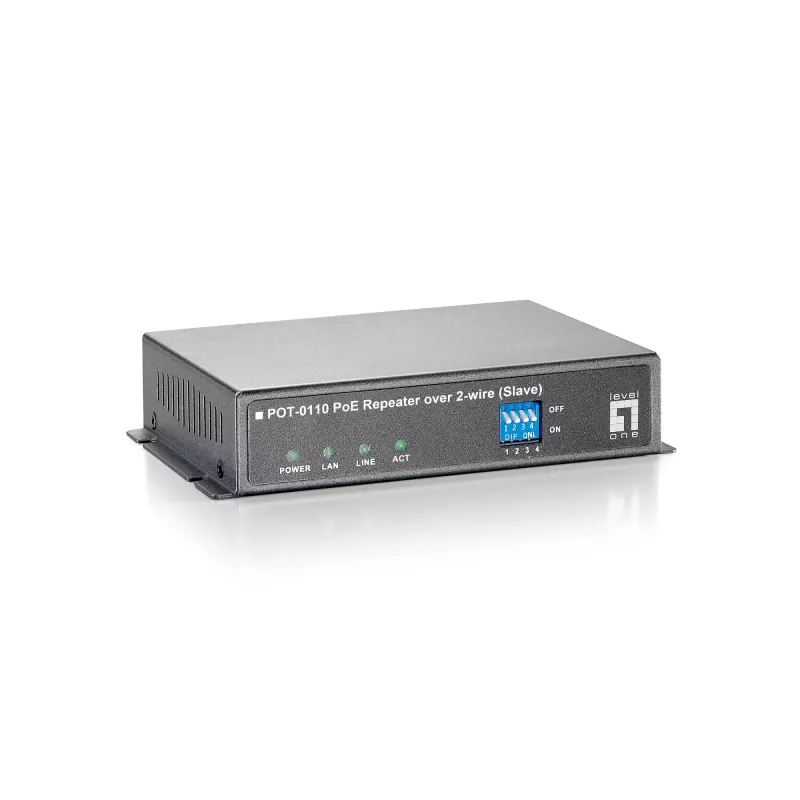

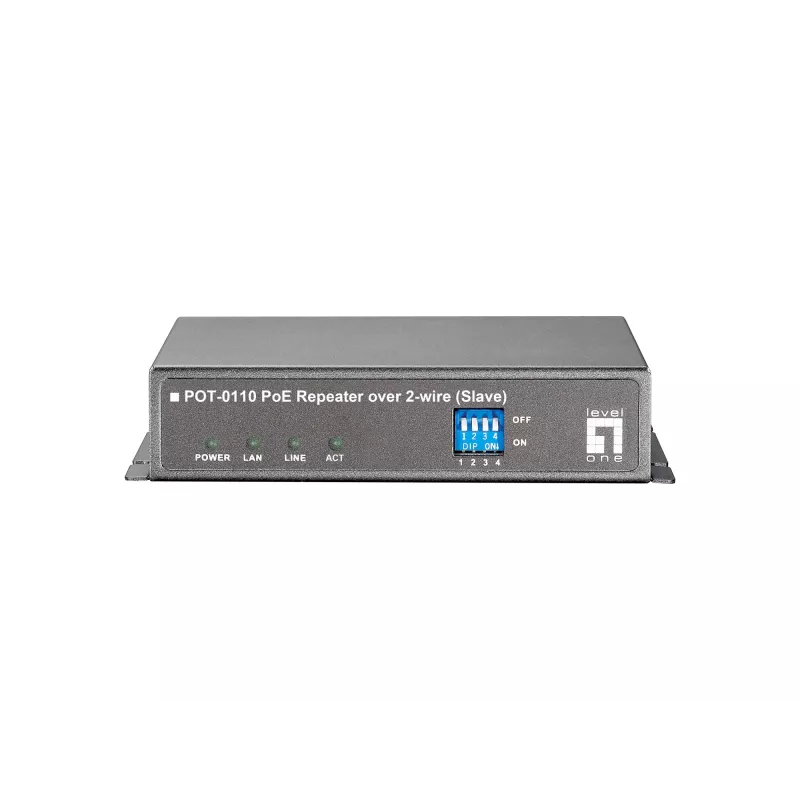

Verkkotoistin LevelOne PoE 2-johdinvastaanotin POT-0110

The LevelOne Network repeater PoE over 2-wire Receiver POT-0110 extends Ethernet and remote Power over Ethernet (PoE) over a single 2-wire line. The system uses a master and a slave unit to transmit data and power up to 400 meters over 24 AWG two-wire cable when paired with a 48 W high-power PoE switch. The receiver supports 10/100Base-T(X) and complies with IEEE 802.3/802.3u standards, delivering up to 60 Mbps full duplex on suitable line conditions and regenerating PoE for remote PD devices.

Advantages

The POT-0110 provides long-reach Ethernet extension with remote PoE capability while keeping installation simple and cost effective. Its selectable two-wire data rate settings via dip switches allow tuning for different cable gauges and distances. The receiver supports auto MDI/MDIX for 10/100 Mbps Ethernet ports, low latency suitable for video/voice/data, and indoor/outdoor wall-mount options. It is FCC and CE certified and designed to supply up to 15 W to a remote PD depending on PSE power.

Suitable for

• Extending LAN-to-LAN links over single twisted pair cabling
• Powering remote Wi‑Fi access points and IP cameras with PoE
• Video streaming and IP telephony in multi-dwelling units (MDU/MTU)
• Fibre-to-the-building (FTTB) last‑mile copper extension

Key specifications

• Model: LevelOne POT-0110 (Receiver)
• Data rate: up to 60 Mbps full duplex over 2-wire line
• Supported Ethernet: 10/100Base-T(X), IEEE 802.3 / IEEE 802.3u
• Maximum reach: up to 400 m on 24 AWG two-wire cable (with 48 W PSE)
• Output voltage: 57 V (device nominal)
• Remote PoE output: up to 15 W to PD (depending on PSE capability)
• Dimensions: 90 × 120 × 28 mm
• Certifications: FCC, CE

How to use

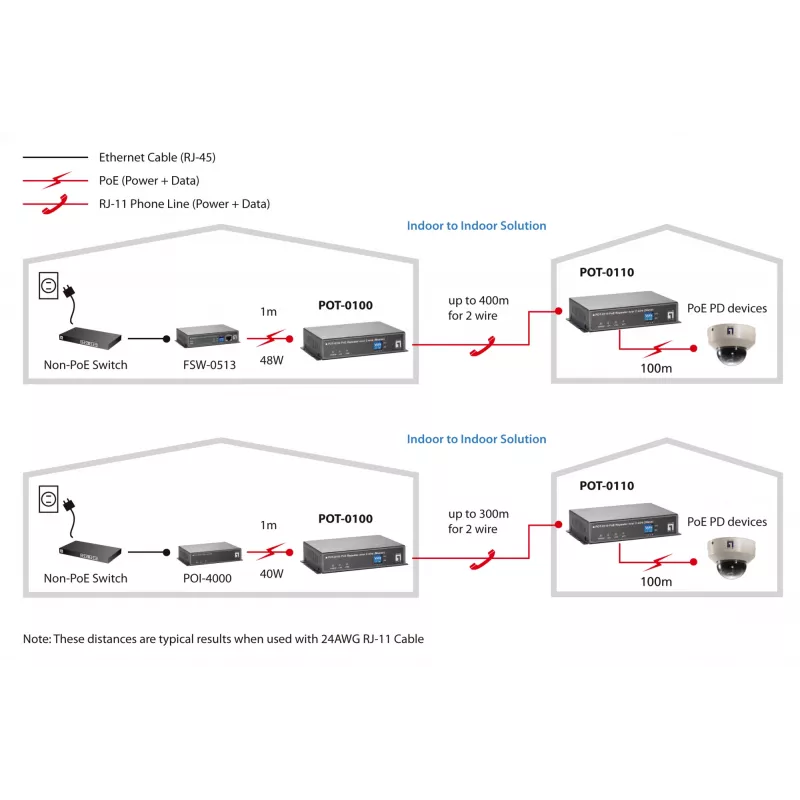

Install the POT master unit at the PoE source side and connect it to the PoE switch. Run a 2-wire cable between the master and the POT-0110 receiver at the remote site, and set the two-wire line rate using the onboard dip switches to match cable gauge and distance. Mount the receiver using the included wall-mount feature if required, connect the remote PD (for example an IP camera or Wi‑Fi AP) to the receiver Ethernet port, and power the system from the PoE switch. The receiver will regenerate power and provide PoE to the connected PD device.

Recommendations

For maximum range and power delivery, use 24 AWG two‑wire cable and a 48 W high-power PoE switch (FSW-0513/0543). Select lower two-wire data rates on longer or thinner cables via dip switches to improve stability. Verify PSE capacity to ensure the remote PD can receive the required PoE wattage.
