Verkkovideotallennin Axis 0878-002

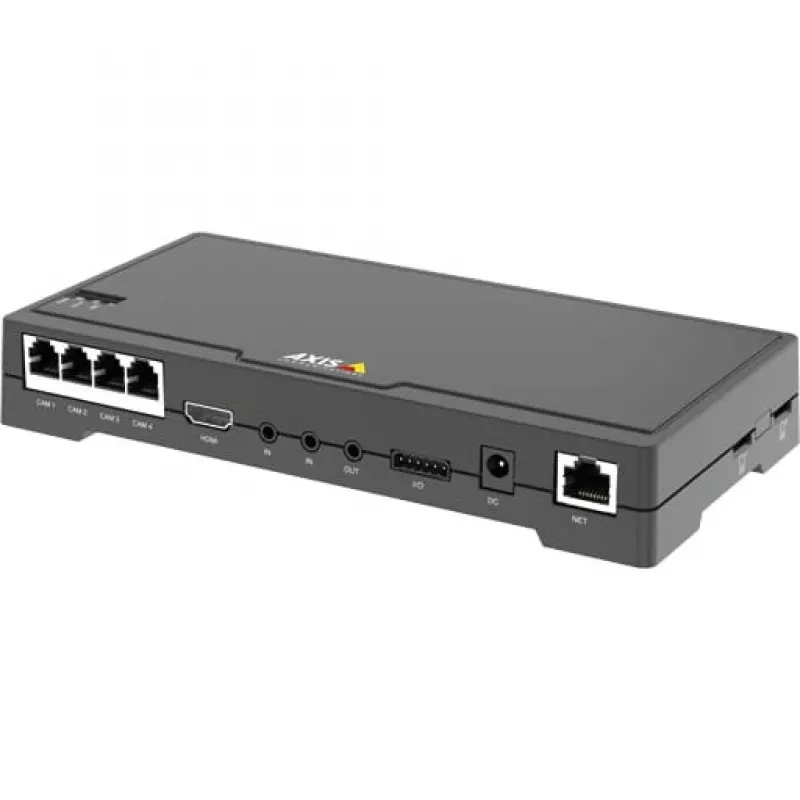

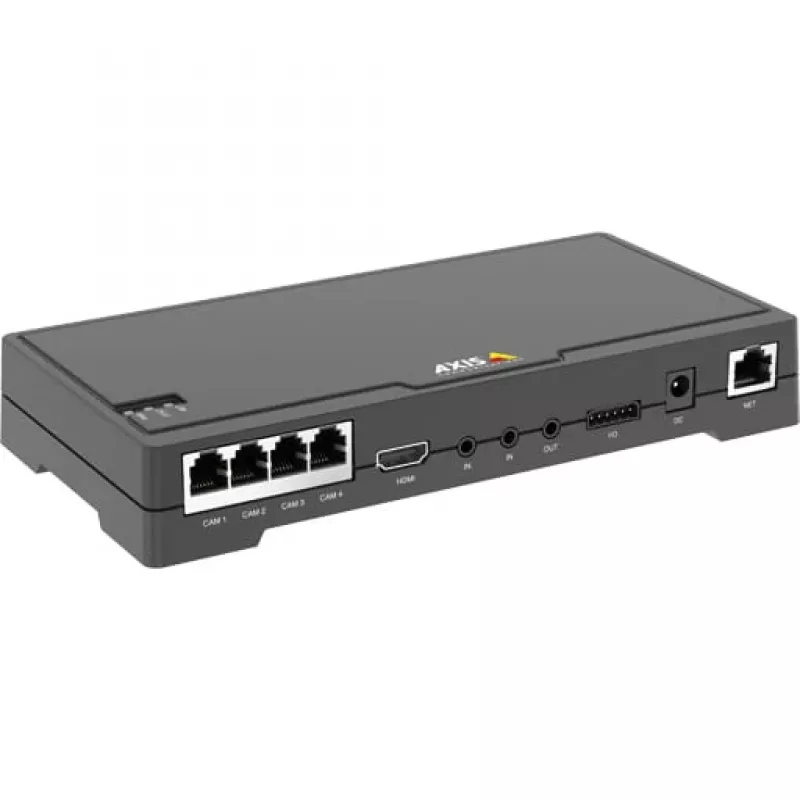

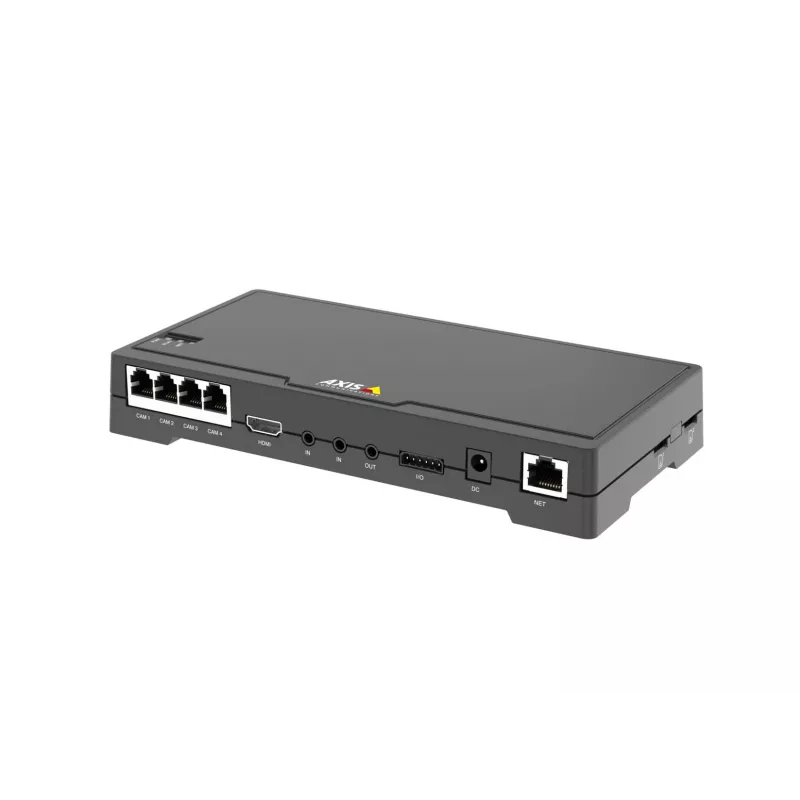

AXIS FA54 is a compact network video recorder system that supports up to four AXIS FA Sensor Units, allowing discreet and cost-efficient surveillance of four nearby areas with a single device. The main unit can stream full frame rate HDTV 1080p video from all four sensor units simultaneously over one IP address, supports quad view streaming and provides an HDMI output for connection to a surveillance or public view monitor. The device employs Forensic WDR tuned for motion and Axis Zipstream compression to reduce bandwidth and storage requirements.

Advantages

AXIS FA54 enables multi-sensor monitoring from a single NVR, reducing cabling and configuration complexity. Simultaneous full-frame-rate 1080p streaming from four sensors ensures detailed video capture across adjacent areas. Built-in HDMI output simplifies local monitoring, while Forensic WDR improves image detail in scenes with varying illumination and Zipstream lowers network bandwidth and storage needs.

Suitable for

• Retail stores for monitoring multiple adjacent aisles or counters
• Small commercial sites requiring discreet multi-angle coverage
• Reception or public spaces where a single monitor displays multiple views
• Environments that need continuous, high-resolution local recording with efficient storage

Key specifications

• Maximum resolution: 1920 x 1080 (HDTV 1080p)
• Supports up to four AXIS FA Sensor Units with simultaneous streaming
• Internal memory: 1024 MB; supports MicroSD / MicroSDHC / MicroSDXC
• Network: 1 × Ethernet LAN (RJ-45), 10/100/1000 Mbit/s
• HDMI output for local monitoring
• Dimensions: 202 × 102 × 31 mm; Weight: 0.442 kg; Colour: Black
• Maximum power consumption: 30 W

How to use

Install up to four AXIS FA Sensor Units and connect them to the AXIS FA54 main unit according to the supplied installation guide. Connect the main unit to the network via the RJ-45 Ethernet port and insert a compatible MicroSD card if local recording is required. Use the device web interface or supported management software to configure IP settings, sensor assignments and recording parameters. Connect an HDMI monitor for local quad view or single-view display if needed.

Recommendations

For best results in retail or small-site deployments, place sensor units to cover adjacent areas with minimal overlap, enable Forensic WDR when monitoring scenes with strong backlight or moving subjects, and use Zipstream to optimize storage without losing important forensic detail.
