Verkkovideotallennin Hikvision DS-7616NXI-I2/16P/S(E)

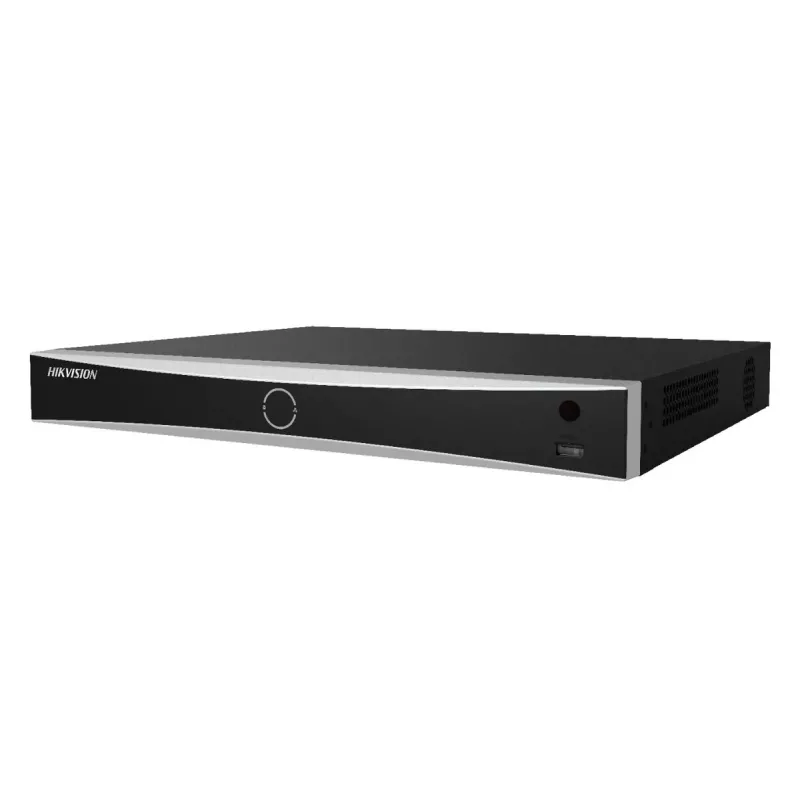

The Network Video Recorder Hikvision DS-7616NXI-I2/16P/S(E) is a 1U rack-mountable NVR designed for multi-camera surveillance installations. It supports 16 channels with recording up to 3840 x 2160 pixel resolution, provides SATA HDD compatibility and a maximum internal storage capacity of 14 TB, and offers wired network connectivity with Ethernet LAN data rates up to 1000 Mbit/s. The unit is built in a black enclosure, meets relevant FCC and CE standards, and is intended for professional and commercial video monitoring environments.

Advantages

The recorder supports high-resolution input and delivers centralized storage for up to 16 camera streams while maintaining compliance with IEEE networking standards for stable data transmission. SATA HDD interface support allows integration with commonly available hard drives for large-capacity local recording, and the device includes multiple USB ports and abundant Ethernet interfaces to simplify peripheral connections and PoE camera deployment. Certification with FCC and CE indicates adherence to regulatory and safety requirements relevant to many installation sites.

Suitable for

• Small to medium enterprise surveillance systems
• Retail stores, offices and warehouse monitoring
• Multi-camera installations requiring centralized recording
• Environments needing rack-mountable 1U NVR hardware

Key specifications

• Channels supported: 16
• Maximum recording resolution: 3840 x 2160 pixels
• Maximum internal storage capacity: 14 TB (SATA HDD)
• HDD interfaces supported: SATA, SATA II, SATA III
• Ethernet LAN data rate: up to 1000 Mbit/s
• Ethernet LAN ports (RJ-45): 17
• USB ports: 1 x USB 2.0, 1 x USB 3.2 Gen 1 (Type-A)
• Form factor: 1U rack-mountable
• Product colour: Black
• Weight: 2.5 kg
• Regulatory certifications: FCC, CE

How to use

Install the NVR in a suitable rack or on a stable shelf and connect compatible SATA hard drives to the internal bays following the manufacturer’s mounting and power guidelines. Connect cameras to the Ethernet ports or to a PoE switch as required, and attach the NVR to the local network via the RJ-45 LAN interface. Use the provided web interface or client software to perform initial setup: configure channel parameters, recording schedules, storage allocation and network settings. Ensure firmware is updated according to Hikvision instructions before final commissioning.

Recommendations

For reliable long-term recording, select enterprise-class SATA drives with appropriate duty ratings and enable scheduled backups or external archive solutions. Place the NVR in a ventilated, temperature-controlled environment and ensure a stable network connection at up to 1000 Mbit/s to support simultaneous high-resolution streams.
