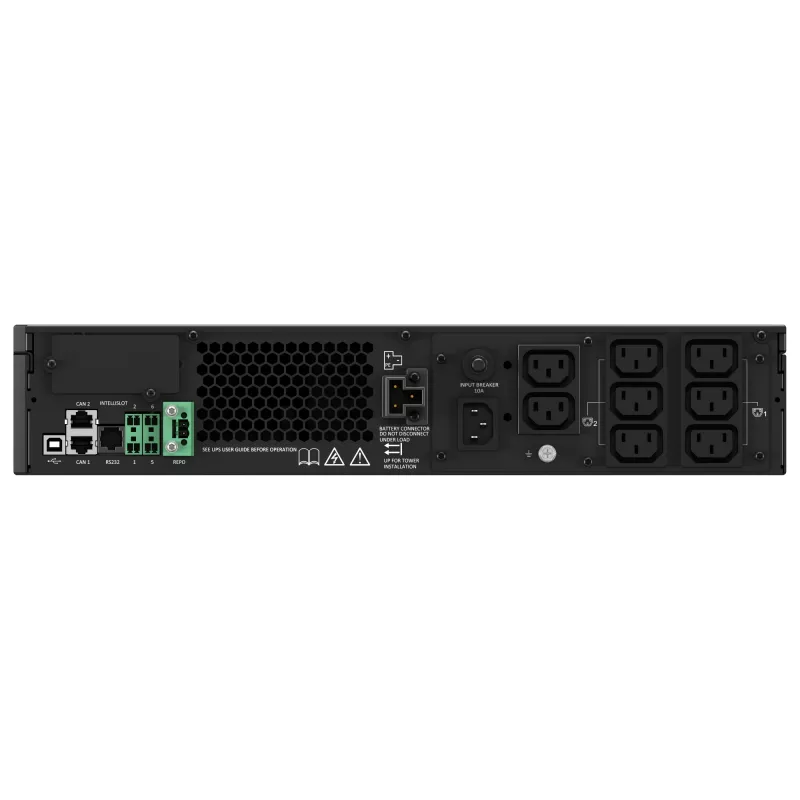

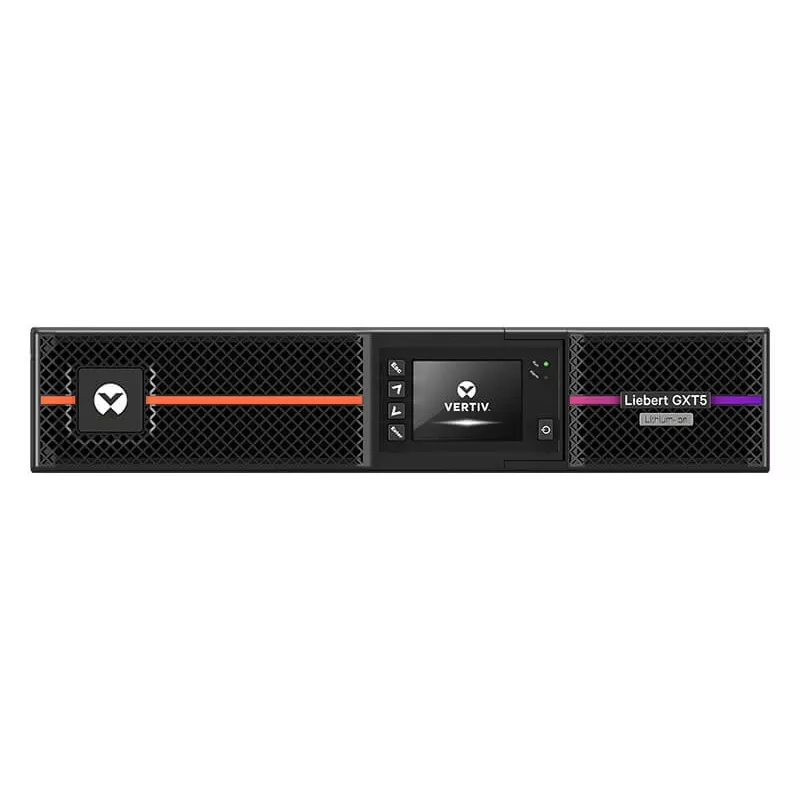

Vertiv Liebert GXT5-3000IRT2UXLN 3 kVA Online-UPS kiskoilla ja viestintäkortilla

The Vertiv Liebert GXT5-3000IRT2UXLN is a 3 kVA online double-conversion UPS delivering a full sine wave output. It supports rack or tower installation and includes rails and a communication card.

Key features

• Online double-conversion architecture
• Full sine wave output
• Rack or tower chassis
• Includes rails and communication card

Specifications

• Brand: Vertiv
• MPN: GXT5-3000IRT2UXLN
• Apparent power: 3000 VA
• Active power: 3000 W
• UPS architecture: on-line double conversion
• Output voltage shape: full sine wave
• Number of input phases: 1 (230V)
• Number of batteries: 6
• Battery voltage: 12 V
• Battery capacity: 9 Ah
• Backup time at 100% load: 3.3 min
• Chassis type: Rack, Tower
• Input power ports: IEC-C20
• Output power ports: 6 x IEC-C13, 1 x IEC-C19
• I/O connectors: 1 x RJ-11/RJ-45, 1 x USB (Type B), 1 x RJ-45 LAN
• Operating temperature: full power up to 40°C (up to 50°C with derating)
• Storage temperature: -20 to 60°C (containing batteries: -15 to 40°C)
• Relative humidity: 0 to 95%, non-condensing
• Color: Black
• Dimensions: 85 x 430 x 540 mm
• Weight: 28.5 kg
