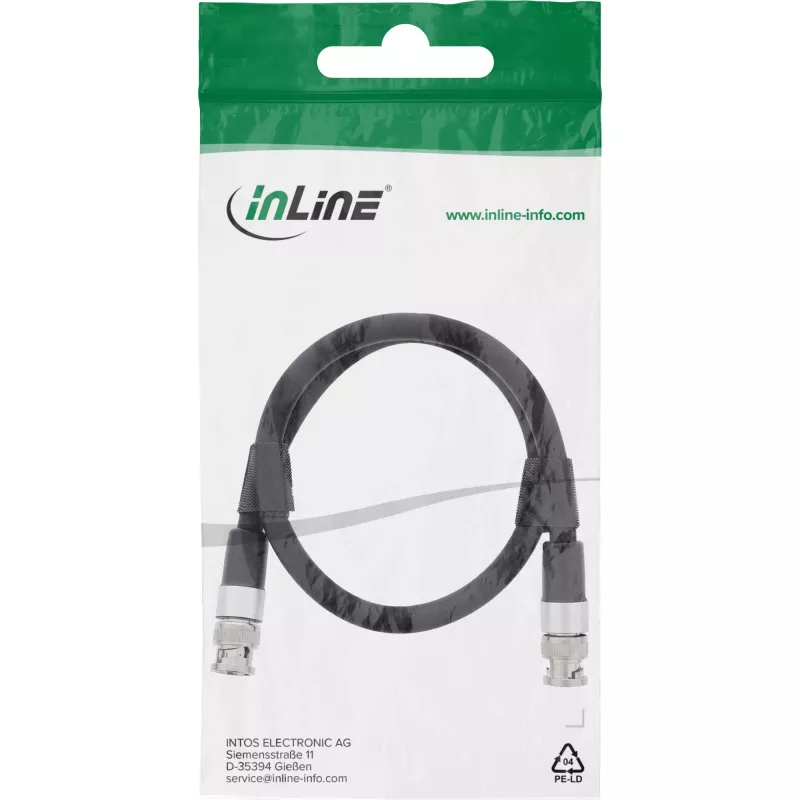

InLine BNC-videokaapeli, 12G-SDI, 4K60Hz, 75 Ohm, 0,5 m, 10855S

The InLine BNC Video Cable with 12G-SDI support is designed for high-resolution video transmission at data rates up to 12 Gb/s over a single 75 Ohm coaxial cable. It supports 4K Ultra HD at 60Hz and is compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI standards. The cable features double shielding to reduce electromagnetic interference and lockable BNC connectors for a secure connection.

Key features

• Supports 4K Ultra HD at 60Hz
• Data transmission rate up to 12 Gb/s
• 75 Ohm impedance
• Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI
• Double shielding for minimised signal loss

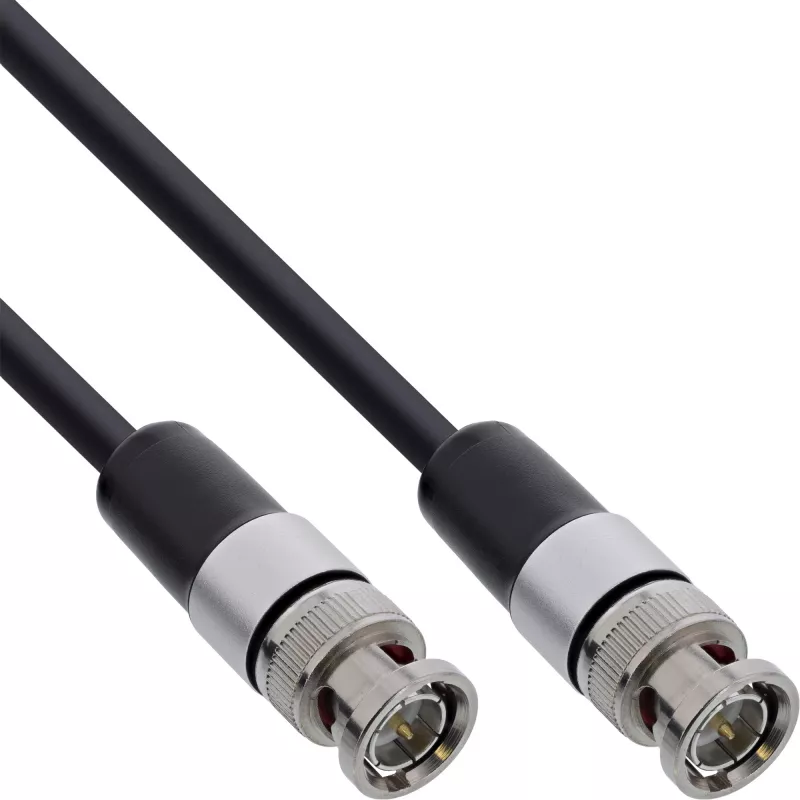

• Lockable BNC connectors
• Round cable design
• Premium cable variant

Specifications

• Brand: InLine
• Manufacturer No.: 10855S
• Connector 1: BNC plug
• Connector 2: BNC plug
• Impedance: 75 Ohm
• Maximum resolution: 4K @ 60Hz
• Data transmission rate: 12 Gb/s
• Length: 0.5 m
• Outer diameter: 7.8 mm
• Diameter: AWG 16
• Bending radius (static): 50 mm
• Bending radius (dynamic): 120 mm
• Operating temperature: -20 to +75°C
• Storage temperature: -20 to +60°C
• Colour: Black
• Country of origin: Taiwan
