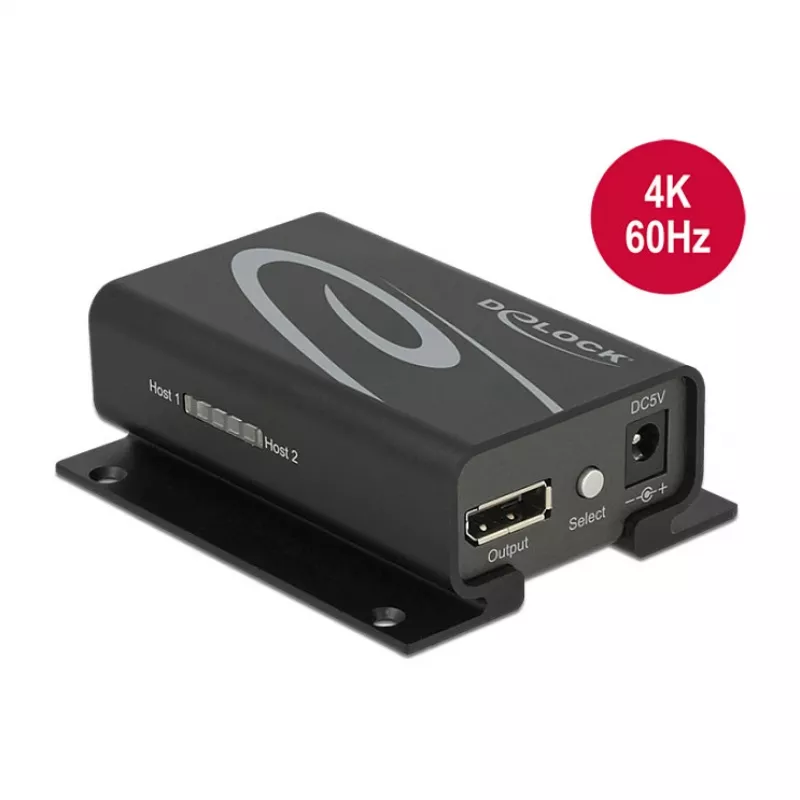

Videokytkin DeLOCK 87697

The DeLOCK 87697 Video Switch lets you connect up to two DisplayPort sources to a single DisplayPort monitor and switch between them using the button on the device or the included remote control. The output is DP++ (dual-mode) compatible, allowing connection of an HDMI or DVI display with a suitable adapter. The unit is made of black metal, supports resolutions up to 3840 x 2160, and is powered by an AC adapter with an input voltage of 100–240 V.

Advantages

Compact metal housing provides durability while keeping the device small (73 x 90 x 31 mm). DP++ output increases compatibility with HDMI and DVI monitors when used with an adapter. Remote control and front-panel button enable quick and convenient switching between two DisplayPort sources. Supports high-resolution video up to 3840 x 2160 for modern displays.

Suitable for

• Home or office multimedia setups with multiple DisplayPort sources
• Connections where a single DisplayPort monitor must be shared between two devices
• Setups that require DP++ compatibility to use HDMI or DVI monitors via adapter

Key specifications

• Model: DeLOCK 87697
• Video port type: DisplayPort
• Output: DP++ (dual-mode) compatible
• Maximum resolution: 3840 x 2160
• Product colour: Black
• Material: Metal housing

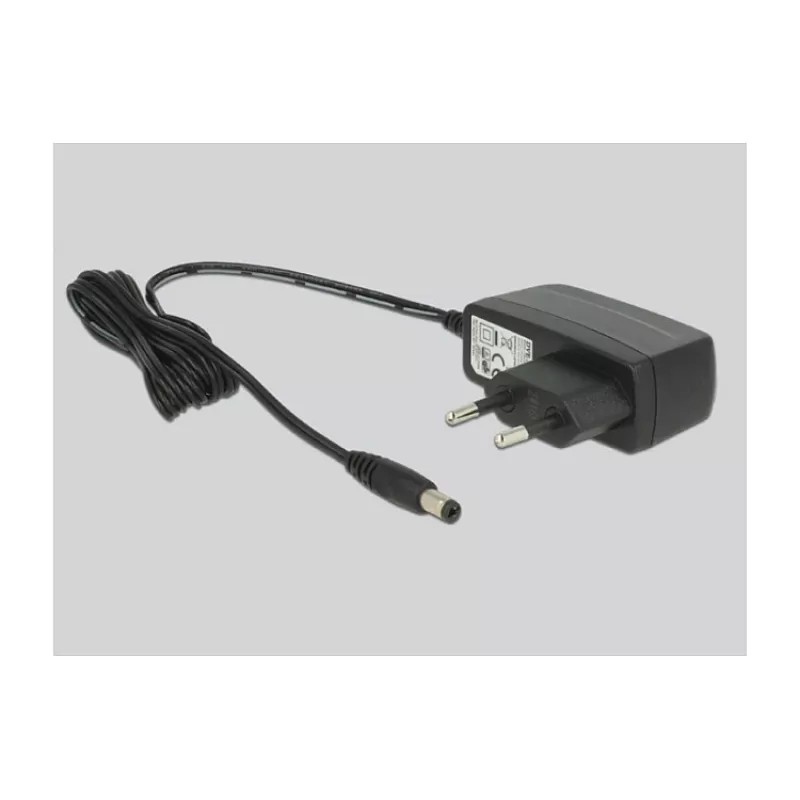

• Power input: AC adapter, 100–240 V
• Dimensions: 73 x 90 x 31 mm
• Brand: DELOCK
• EAN: 4043619876976

How to use

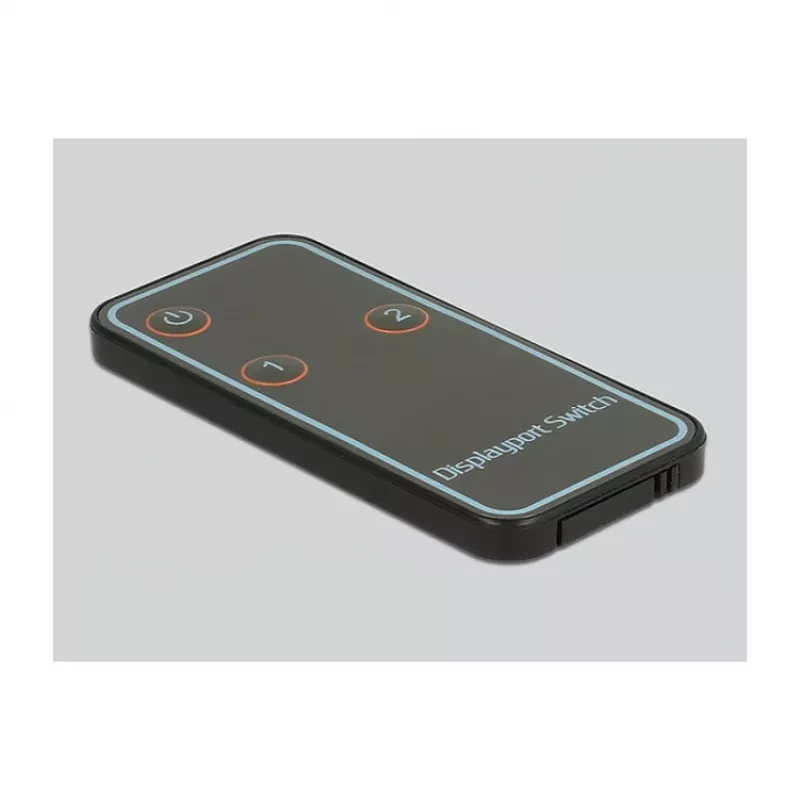

Connect up to two DisplayPort source devices to the switch's input ports and connect the monitor to the output port. If using an HDMI or DVI monitor, attach a compatible DP-to-HDMI or DP-to-DVI adapter to the output. Power the switch using the supplied AC adapter. Use the front-panel button or the remote control to select the active source; the switch will route video from the selected DisplayPort source to the monitor.

Recommendations

For reliable operation, use high-quality DisplayPort cables and, if required, certified DP-to-HDMI/DVI adapters. Ensure the monitor supports the chosen resolution and refresh rate. Place the switch in a ventilated area and keep the remote control batteries accessible for replacement.
