Videosplitteri DeLOCK 93253

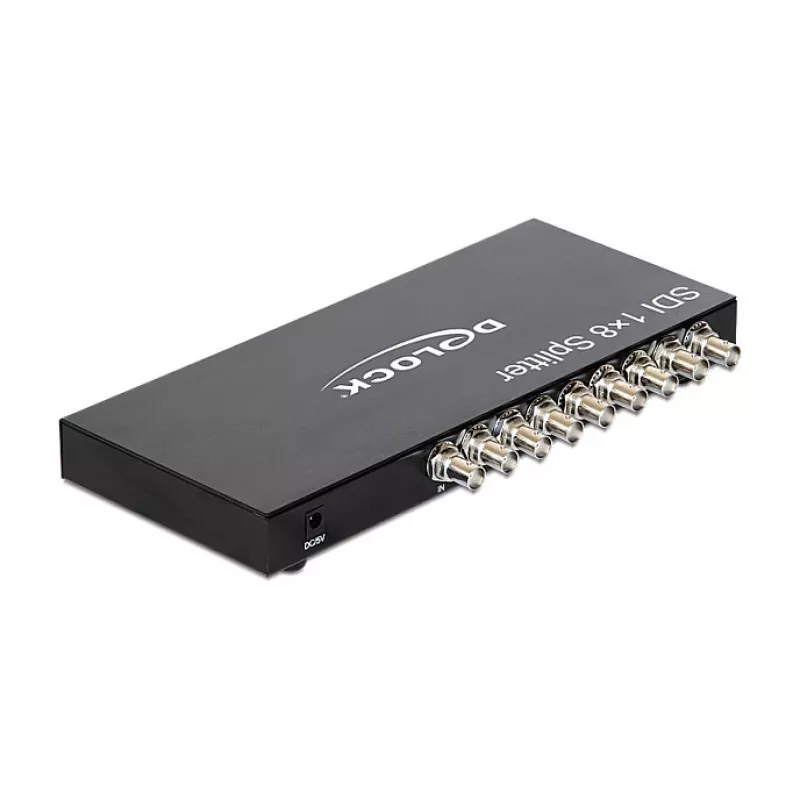

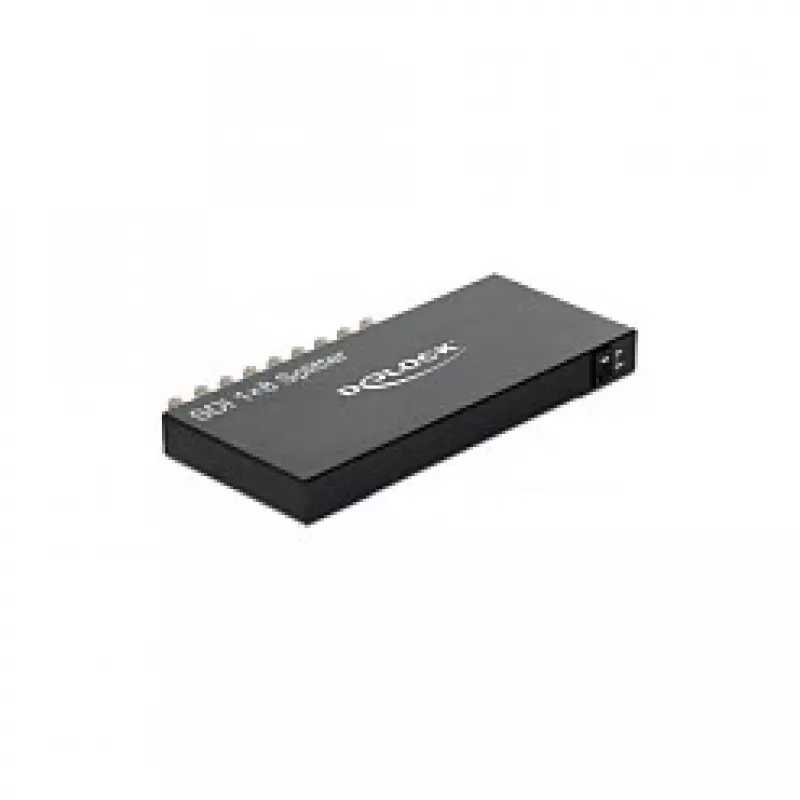

The DeLOCK 93253 video splitter distributes one SDI input signal to up to eight SDI outputs. It accepts SDI sources such as DVRs, cameras or other devices and provides identical SDI signals via BNC connectors. The unit supports common video modes including 1080i, 1080p, 720p and 480i and is housed in a metal casing with compact dimensions of 257 x 133 x 26 mm.

Advantages

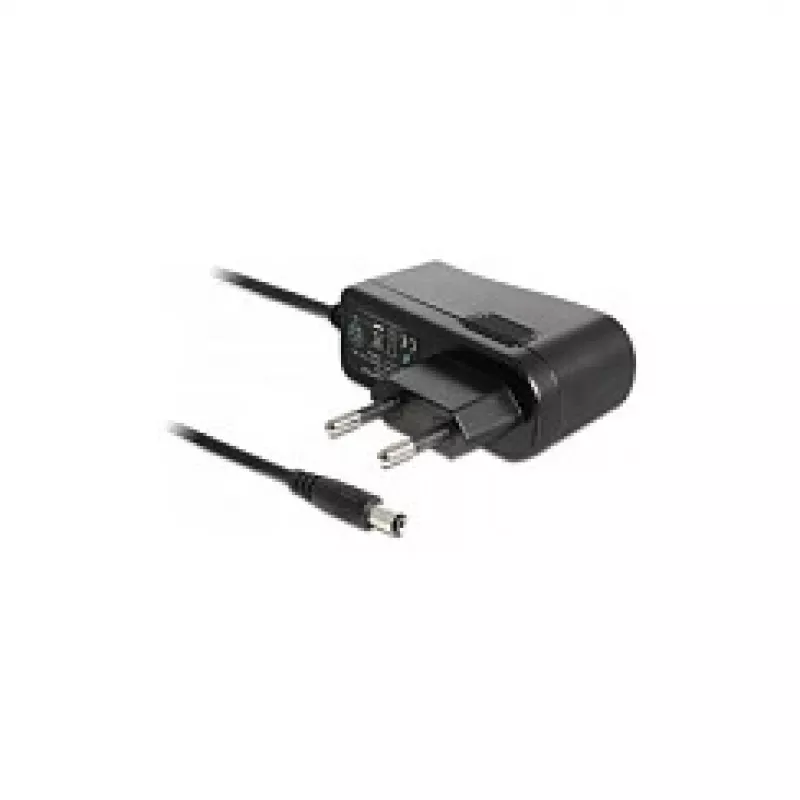

The splitter offers eight SDI outputs from a single input, maintaining signal format compatibility with HD and SD modes. Its metal housing provides mechanical durability and the BNC connectors ensure robust connections. The built-in power supply accepts 100–240 V at 50–60 Hz and provides a stable 5 V output for reliable operation in diverse installations.

Suitable for

Key specifications

How to use

Connect an SDI source (for example a camera or DVR) to the SDI input BNC connector. Use BNC cables to connect up to eight SDI displays to the output BNC connectors. Plug the included power cord into an AC outlet (100–240 V, 50–60 Hz) and connect it to the splitter’s power input. Verify that each connected monitor is set to accept SDI input and check that the video format is supported by all devices.

Recommendations

For best results, use high-quality, properly shielded BNC cables and keep cable runs within recommended distances for SDI to avoid signal degradation. Ensure all connected displays support the chosen video mode to prevent format mismatch.
