VIDOS IPX S101-4 ulkopaneeli 2MP 1080p IP65 ilkivaltasuojattu

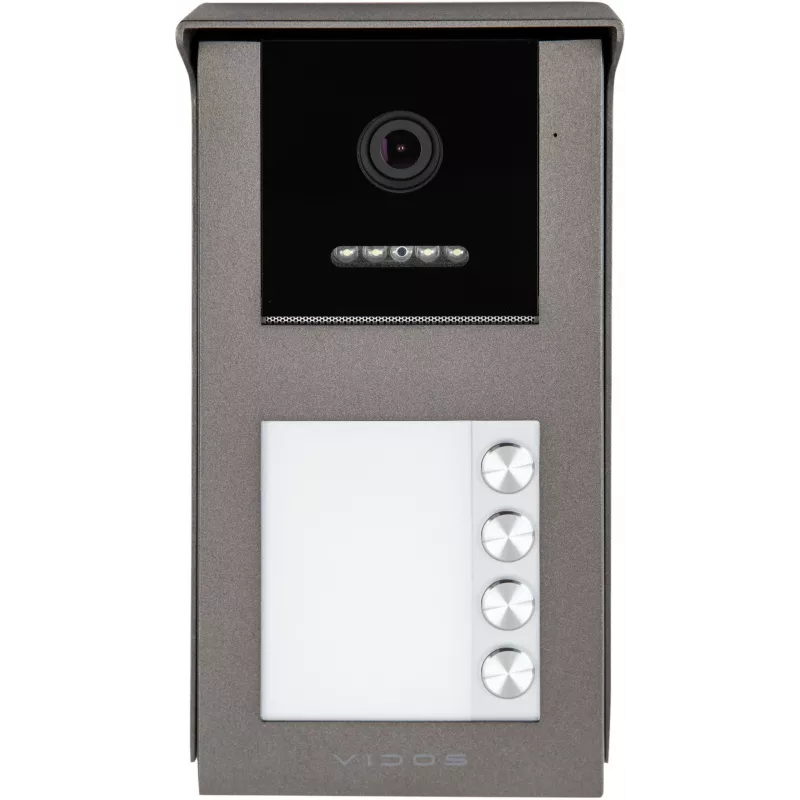

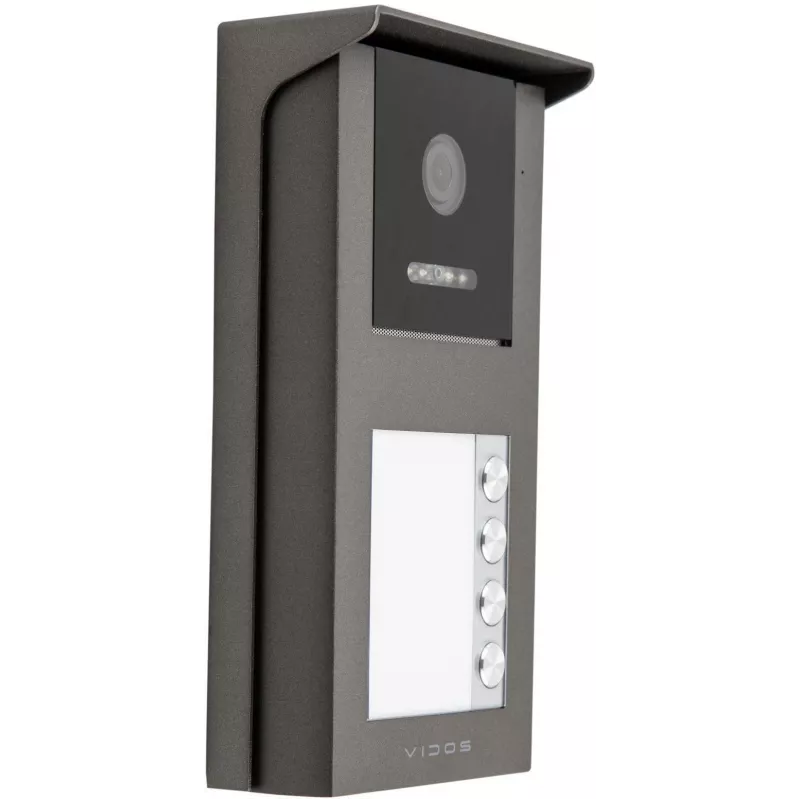

The VIDOS IPX S101-4 is a robust outdoor access control panel designed for the VIDOS IPX system. Featuring a 2MP CMOS camera with 170° diagonal viewing angle, IR night vision, and two-way audio, it provides clear video and communication. The vandal-resistant aluminum alloy housing with IP65 rating ensures durability in harsh environments. Power via PoE or 12V DC simplifies installation.

Advantages

High-resolution 1080p video with wide-angle lens ensures comprehensive monitoring. IR LEDs enable 24/7 visibility. Two-way audio allows remote visitor communication. Vandal-resistant design and IP65 protection guarantee long-term reliability. Compatible with VIDOS IPX system and Vidos Smart app for remote management.

Suitable for

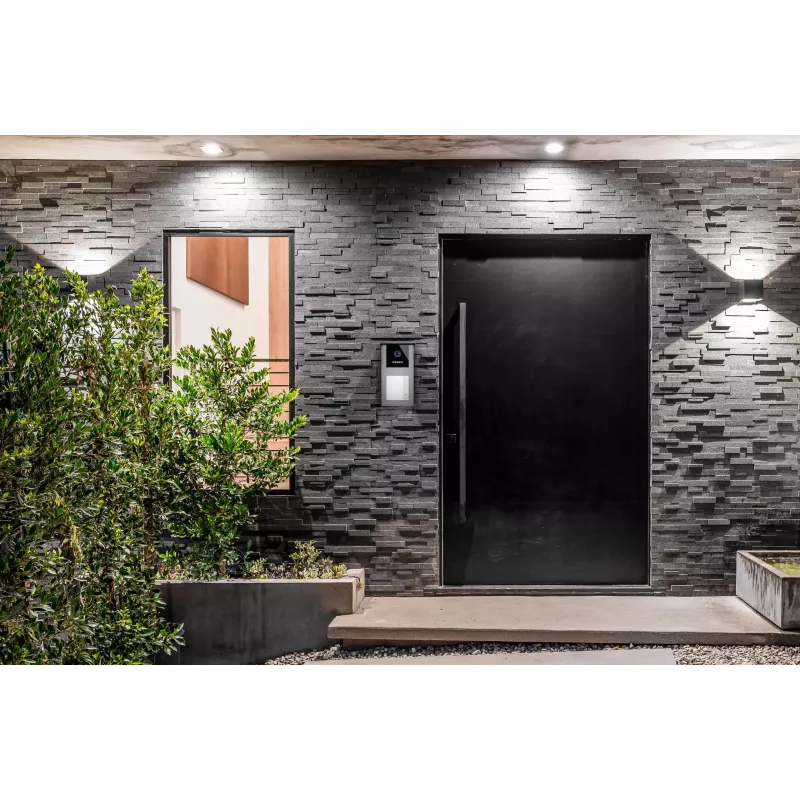

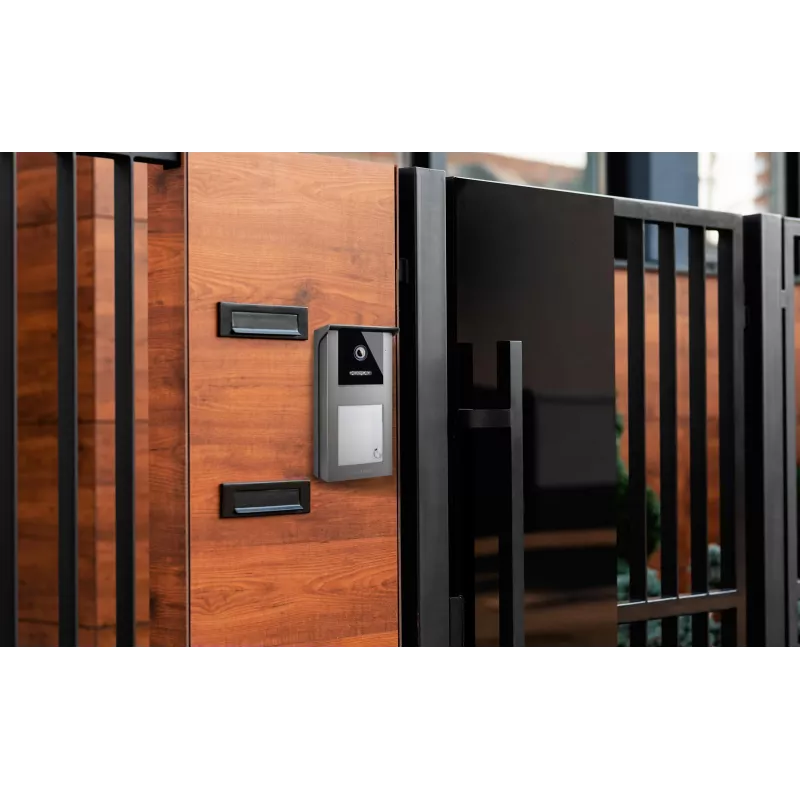

• Residential buildings and apartment complexes
• Office buildings and commercial premises
• Secure entry points requiring video verification

Key specifications

• Camera: 2MP CMOS, 1080p resolution
• Lens: 170° diagonal field of view
• Night vision: IR LEDs
• Audio: Two-way with built-in mic and speaker
• Connectivity: Ethernet RJ45 (IP)
• Power: PoE (IEEE 802.3af) or 12V DC
• Material: Aluminum alloy front panel
• Protection: IP65, vandal-resistant
• Call button: 1 physical button with LED backlight
• Door release: 1 relay output
• Video compression: H.264
• Motion detection: Software-based
• Operating temperature: -30°C to +50°C
• Mounting: Surface mount
• Dimensions: 133 x 48 x 20 mm

Recommendations

For optimal performance, use with VIDOS IPX compatible controllers and the Vidos Smart app. Ensure proper PoE switch or 12V DC power supply. Suitable for outdoor use in various weather conditions.
