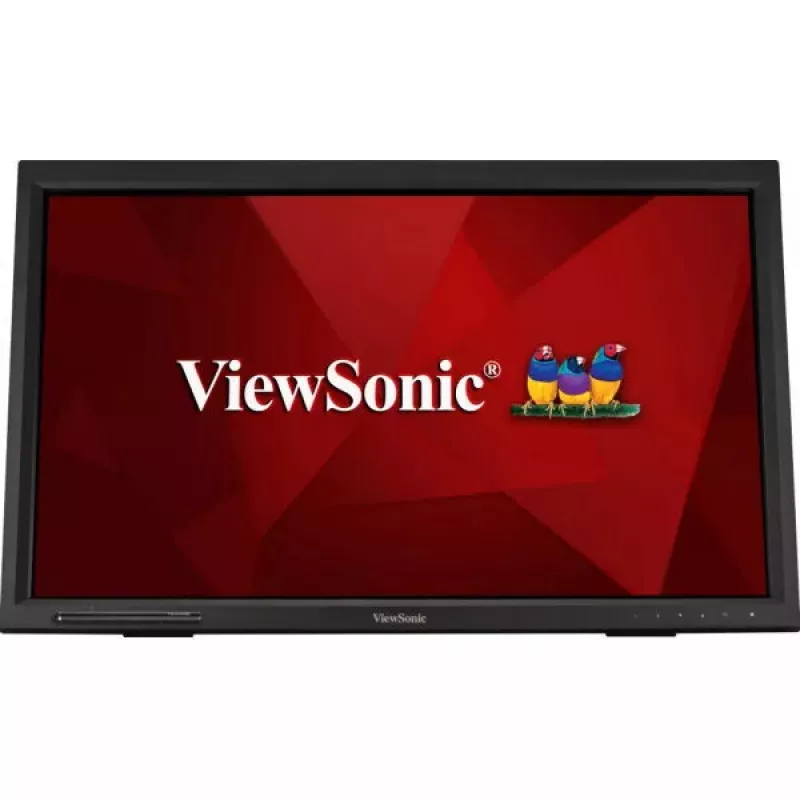

Viewsonic TD2423 tietokonenäyttö 59,9 cm (23,6 inch) 1920 x 1080 pikseliä Full HD LED kosketusnäyttö Multi-User musta

The ViewSonic TD2423 is a 23.6" Full HD (1920 x 1080) IR touchscreen monitor designed for intuitive multi-touch interaction. The infrared touch system detects up to 10 touch points and supports finger, stylus and gloved-hand input. The display uses an LED VA panel with 178° viewing angles, a 7 ms response time and a scratch-resistant 7H hardness surface. Connectivity includes VGA, DVI, HDMI, USB and an integrated USB hub; the monitor also features dual 2 W speakers, VESA mounting compatibility and an adjustable tilt up to 40°.

Advantages

The TD2423 provides accurate multi-touch input with up to 10 simultaneous touch points and works with stylus, bare fingers and gloved hands for flexible interaction. Its 7H hard-coated touchscreen improves resistance to surface damage, while Full HD resolution and a VA panel deliver clear images and wide viewing angles. Built-in speakers, Flicker-Free technology and a Blue Light Filter reduce eye strain and add convenience for everyday use. Multiple input ports and a USB hub offer broad compatibility with Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

Suitable for

• Interactive kiosks and point-of-sale terminals
• Education and collaborative classrooms
• Retail displays and information stands
• Workstations requiring touch input and stylus use
• Home office or multimedia use with integrated speakers

Key specifications

• Display diagonal: 23.6" (23.6 inches)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: VA; Backlight: LED
• Touch technology: Infrared (IR), up to 10 touch points
• Surface hardness: 7H
• Response time: 7 ms; Aspect ratio: 16:9
• Viewing angles: 178° / 178°
• Speakers: Dual 2 W integrated
• Connectivity: VGA, DVI, HDMI, USB (hub)
• VESA mounting: Yes

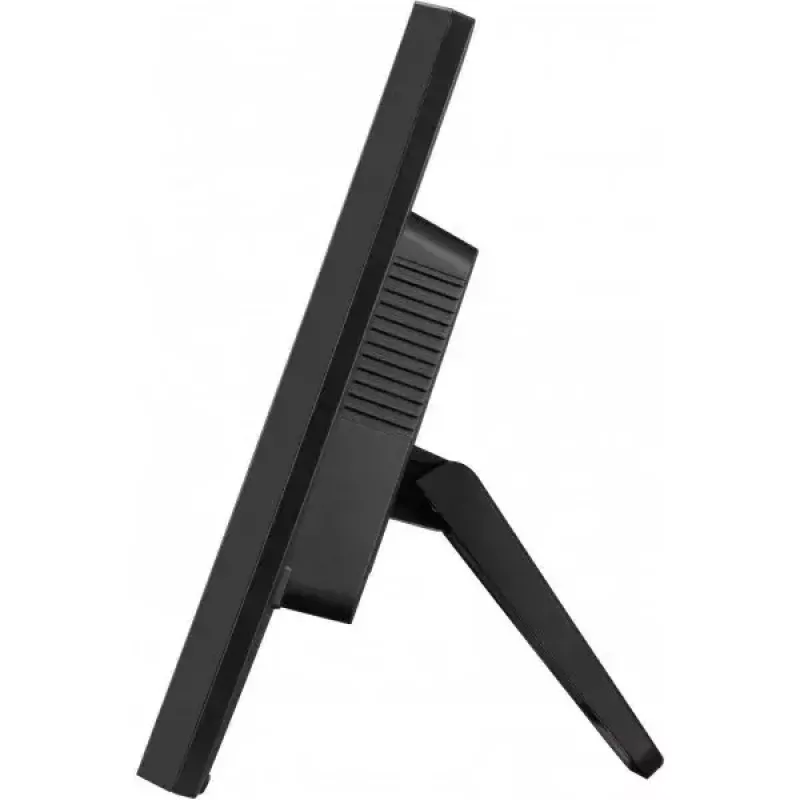

• Adjustable tilt: up to 40°
• Energy class (SDR): D; Energy consumption per 1000 h: 14 kWh
• Color: Black; MPN: TD2423; EAN: 0766907008654

How to use

Place the monitor on a stable surface or mount it using the VESA pattern. Connect a video source via HDMI, DVI or VGA and attach the USB cable to enable touch functionality and the USB hub. Power the monitor and select the appropriate input. Use fingers, a compatible stylus or gloved hands to interact directly on the screen; the infrared touch detects up to 10 simultaneous points for gestures like tap, pinch and swipe. Adjust the tilt up to 40° to obtain a comfortable viewing and interaction angle.

Recommendations

For best performance, install any required touch drivers or OS updates for full multi-touch support on your operating system. Clean the screen with a soft, lint-free cloth and avoid abrasive cleaners to preserve the 7H hard coating. When using in public or shared environments, consider a stylus or gloves to reduce direct contact.
