Viivalaser Laserliner PocketPlane-Laser 3G tarkkuus 0,3 mm/m

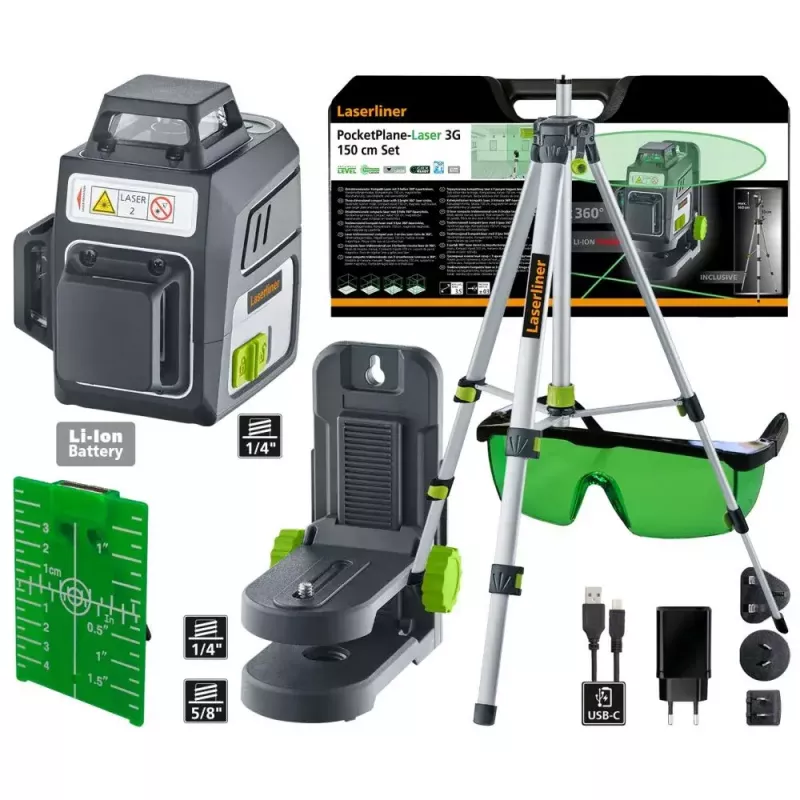

The Laserliner PocketPlane-Laser 3G is a compact three-dimensional green line laser designed for precise alignment and levelling tasks. It projects one horizontal and two vertical laser circles that form crossing lines and a plumb function for working simultaneously on floors and ceilings. The unit offers a manual slope mode for creating gradients and is powered by a built-in lithium-ion battery with USB-C charging; mains operation with the supplied power adapter is also possible. The kit includes a compact 150 cm tripod with multi-section telescopic legs and a 30 cm crank, a height-adjustable magnetic PocketWallHolder bracket compatible with 1/4” and 5/8” tripod threads, a magnetic target plate with stand, nail hole and scale in centimetres and inches, and laser enhancement glasses for improved line visibility.

Advantages

The PocketPlane-Laser 3G provides high visibility green laser lines (wavelength 515 nm) with levelling accuracy of ±0.3 mm/m and a self-levelling range of ±3.5°, enabling reliable precision for demanding projects. The compact tripod with crank and multi-section legs increases setup flexibility while the PocketWallHolder and magnetic target plate allow secure mounting close to walls or ceilings. Rechargeable lithium-ion power with USB-C charging and optional mains operation extend working time and convenience. The included accessories support a wide range of alignment and installation tasks without needing additional purchases.

Suitable for

Key specifications

How to use

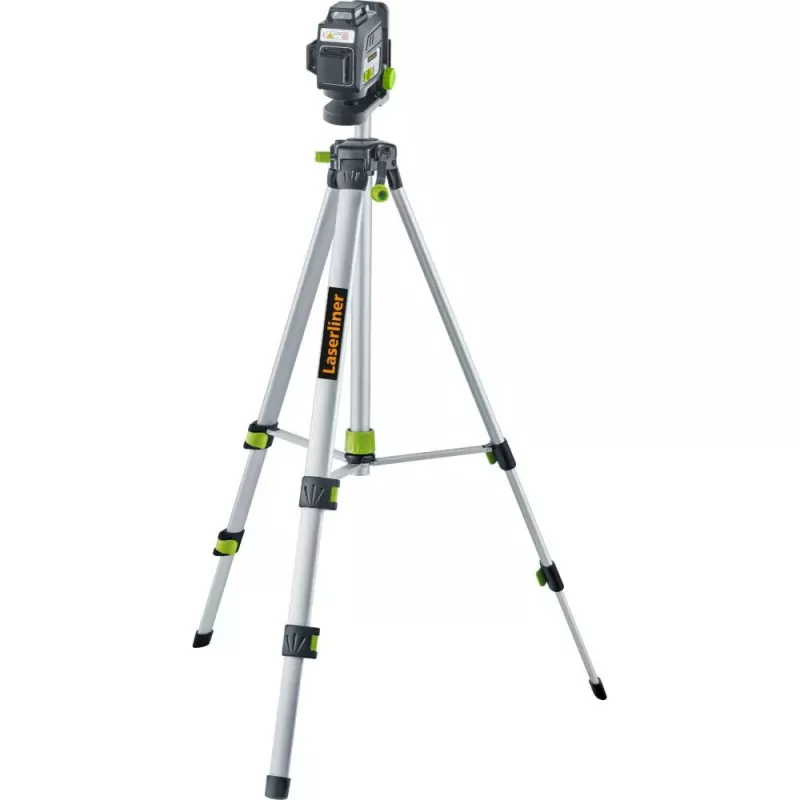

Position the compact tripod on a stable surface and extend the telescopic legs to the desired height; use the 30 cm crank for fine height adjustment. Mount the PocketPlane-Laser 3G on the tripod or attach it to the PocketWallHolder for wall mounting or to metal profiles using the magnet. Switch on the device and allow it to self-level within ±3.5°; for angled alignments, enable the manual slope mode. Use the magnetic target plate to mark reference points when working near ceilings and put on the laser enhancement glasses to increase visible contrast of the laser lines. Recharge the lithium-ion battery using the supplied USB-C cable or connect the power supply for continuous mains operation.

Recommendations

For best visibility of the green laser lines, use the laser enhancement glasses and avoid direct sunlight or very bright ambient lighting. When working on ceilings or near metal profiles, secure the device with the PocketWallHolder or the magnetic target plate to ensure stable reference lines. Regularly check the battery charge before starting long jobs and keep the USB-C cable or power adapter available for uninterrupted operation.
