Virtajohto Lapp ÖLFLEX 70261156

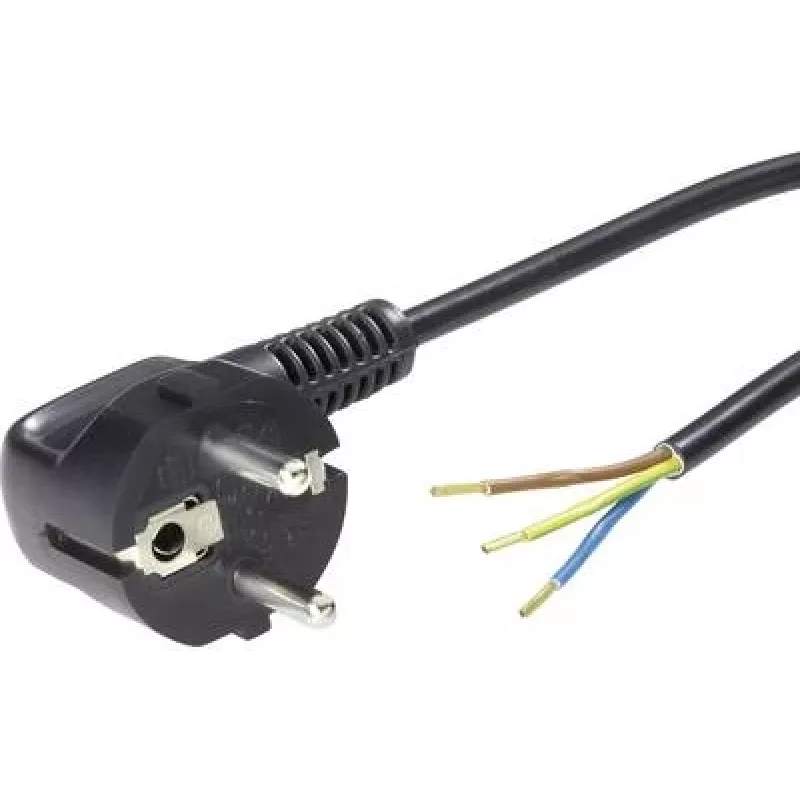

ÖLFLEX® PLUG H05VV-F power connecting cable by Lapp, model 70261156, is a 3.0 m PVC-insulated mains lead with conductor cross-section 1–2.5 mm² and rated for 250 V. The cable is supplied with a molded angled earthing-type plug (type F) featuring two earthed contacts; the opposite end is fitted with an IEC coupling or delivered dismantled on request. Other colours and designs are available on request.

Advantages

The Lapp ÖLFLEX 70261156 cable combines PVC insulation and flexible H05VV-F construction for general-purpose mains use. Its angled type F plug reduces strain at the connection point, and the availability of an IEC coupling or a dismantled end allows integration with appliances or custom terminations. The 3 m length provides extended reach without additional adapters.

Suitable for

Key specifications

How to use

Insert the angled type F plug into a compatible 230–250 V grounded socket until it is fully seated. If the cable is supplied with an IEC coupling, connect the IEC connector to the appliance inlet marked for mains. If delivered dismantled, terminate the conductors according to the appliance manufacturer's wiring instructions and local electrical regulations. Do not use the cable if the sheath or connectors are damaged.

Recommendations

For safe operation, use this ÖLFLEX H05VV-F cable only within its rated voltage (250 V) and intended ambient conditions; avoid permanent exposure to sunlight, oils, or chemicals that may degrade PVC. Replace the cable if any signs of wear or damage appear and have any custom terminations performed by a qualified electrician.
