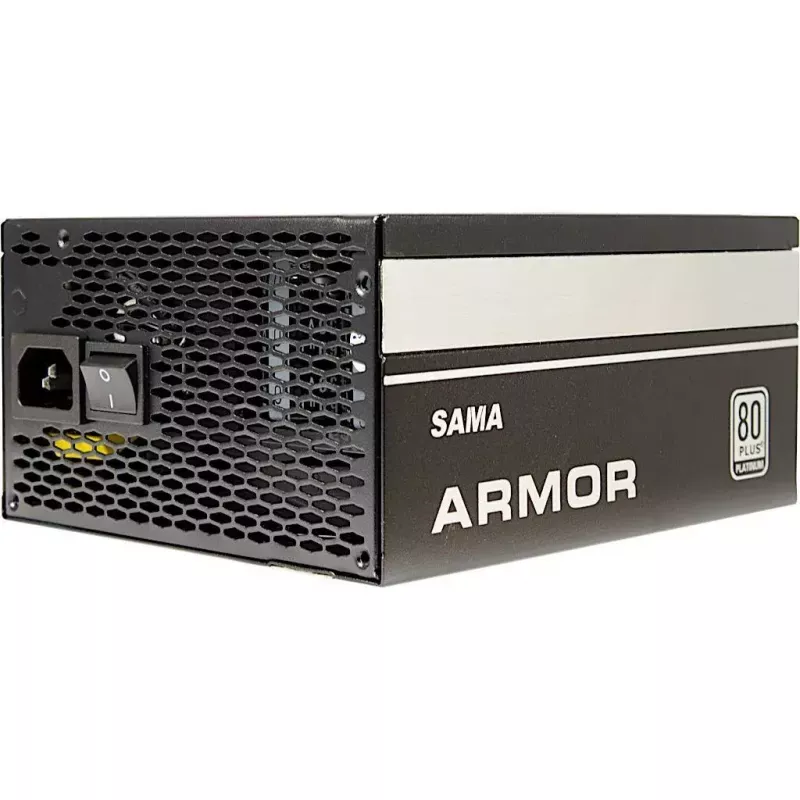

Virtalähde Inter-Tech SAMA FTX-1200-A 1200 W

The SAMA FTX-1200-A Armor is a 1200 W ATX power supply unit designed for desktop PC builds that require high, stable power delivery. It is 80 PLUS Platinum certified and uses DC/DC conversion and a single +12 V rail to provide up to 98 A for demanding components. The unit features 105°C A+ CHEMI-CON capacitors and a temperature-controlled 120 mm fan housed in a metal chassis with aluminum accents. The fully modular flat-cable design and multiple connectors support flexible cable management and a variety of system configurations.

Advantages

The PSU offers high efficiency through 80 PLUS Platinum certification and DC/DC technology, delivering stable voltages and reduced power loss. A single +12 V rail supplies up to 98 A for power-hungry graphics cards. Premium 105°C CHEMI-CON capacitors improve reliability and operating life, while the modular flat cables simplify cable routing. A temperature-controlled 120 mm fan provides quiet, efficient cooling and the manufacturer supplies a 10-year warranty.

Suitable for

• High-end gaming PCs with powerful graphics cards
• Workstations with multi-core or dual-CPU configurations
• Overclocked systems requiring stable, high current on +12 V rail
• Custom builds that demand neat cable management

Key specifications

• Total power: 1200 W
• 80 PLUS certification: 80 PLUS Platinum
• Efficiency: 89.31 % (manufacturer data)
• Motherboard power connector: 20+4 pin ATX

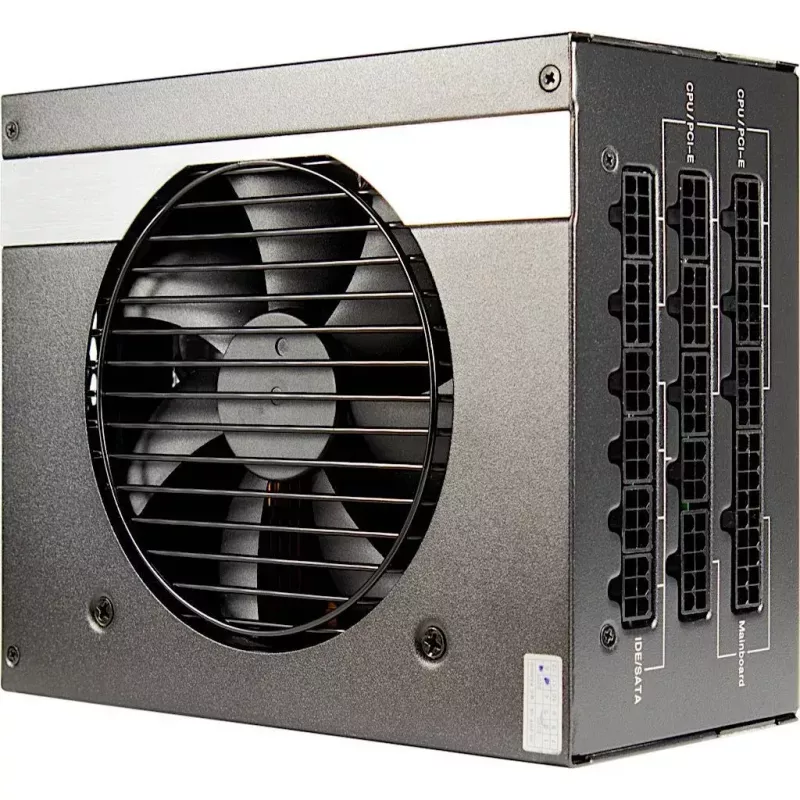

• Fan diameter: 120 mm (temperature-controlled)

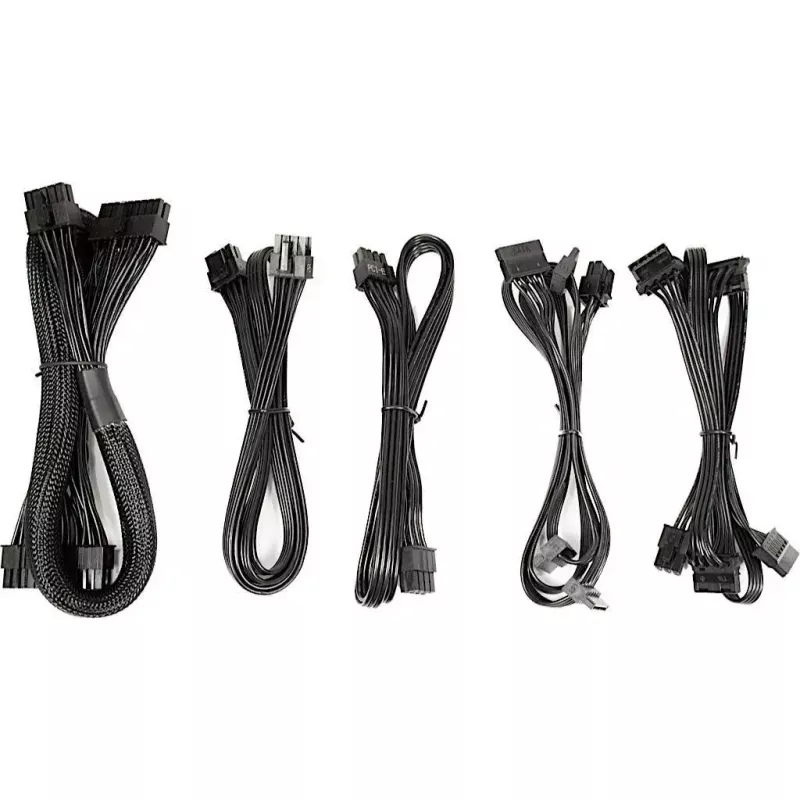

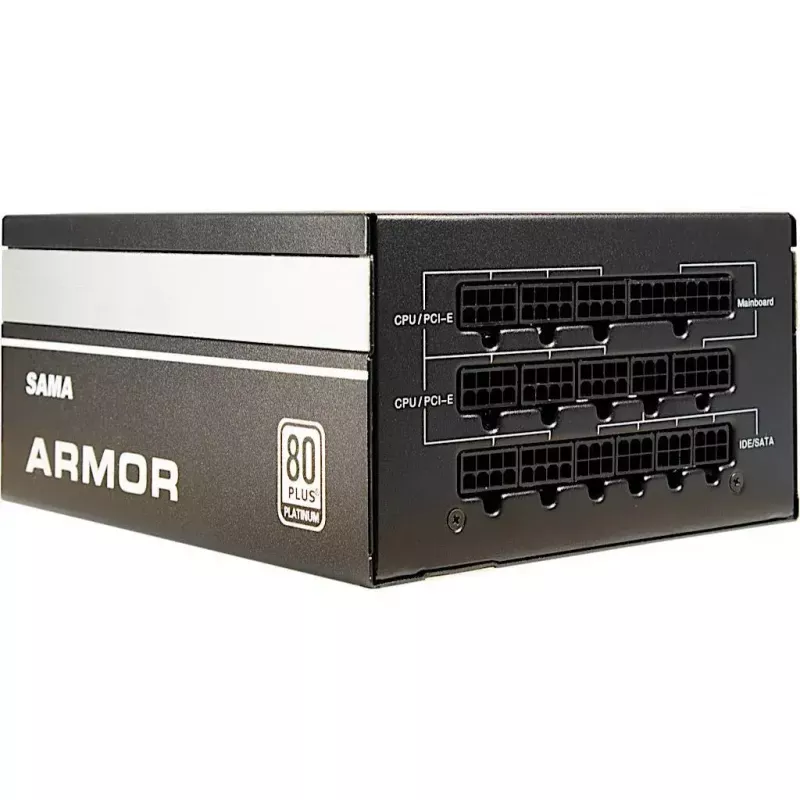

• Connectors: modular flat cables including PCIe 6+2-pin, SATA and Molex; two 4+4-pin CPU connectors
• Capacitors: 105°C A+ CHEMI-CON (Japan)
• Form factor: ATX
• Weight: 2.1 kg
• Colour: Black
• Warranty: 10 years (manufacturer)

How to use

Install the SAMA FTX-1200-A Armor into an ATX-compliant case following standard PSU mounting procedures. Connect the 20+4 pin ATX cable to the motherboard, attach one or two 4+4-pin CPU connectors if required by the motherboard or dual-CPU setup, and plug PCIe 6+2-pin connectors to graphics cards as needed. Use the modular SATA and Molex cables for drives and peripherals. Ensure correct AC mains connection matching the specified input range (110–240 V) and secure all cables before powering the system. Verify BIOS/UEFI and system settings after initial power-up.

Recommendations

The SAMA FTX-1200-A Armor is best used in systems that require sustained high +12 V current and efficient power conversion; maintain adequate case airflow to support the PSU fan and periodically check cable connections. For maximum longevity, operate within recommended ambient temperature ranges and avoid prolonged operation near the PSU's maximum rated load.
