Virtalähde MEAN WELL HDR-150-15 150W 15V 85-264V

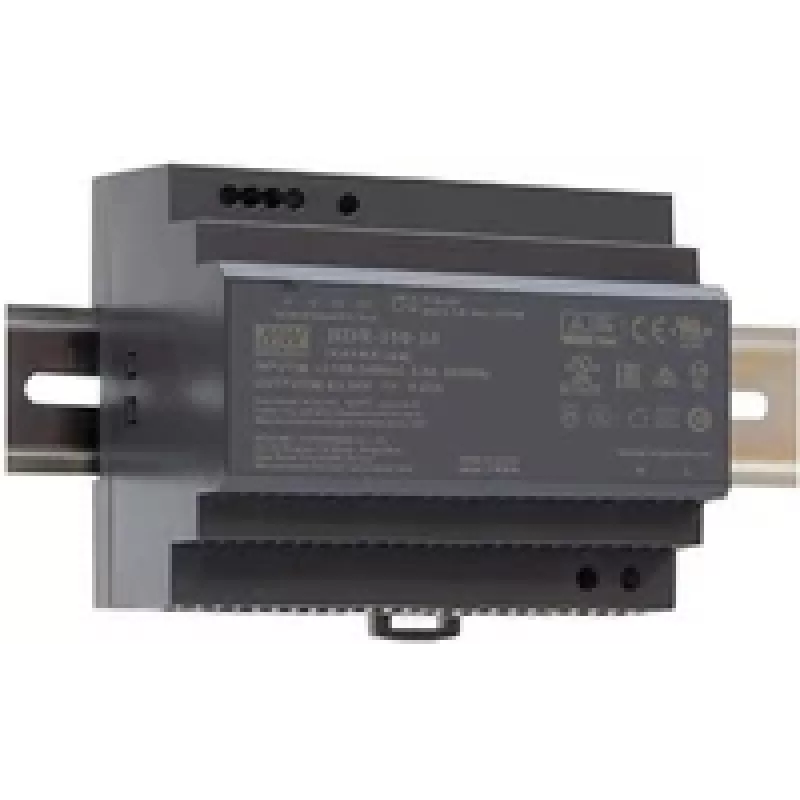

The MEAN WELL HDR-150-15 is an ultra-slim AC-DC DIN-rail power supply that delivers 15 VDC at up to 9.5 A (150 W) from a wide input range of 85–264 VAC. Its compact housing (105 mm × 54.5 mm × 90 mm) and compliance with RoHS make it suitable for control cabinets and industrial installations that require a stable low-voltage DC source.

Advantages

The HDR-150-15 provides a wide input voltage range for global compatibility and a rated output of 150 W with built-in protections typical for DIN-rail supplies. Its slim profile saves rail space while offering reliable, continuous 15 VDC output. RoHS compliance ensures reduced hazardous substances in the unit.

Suitable for

• Industrial control cabinets and automation systems
• PLC and instrumentation power supply
• Building management and monitoring equipment
• Backup and peripheral devices requiring 15 VDC

Key specifications

• Manufacturer: MEAN WELL (brand: mean well)
• Model / MPN: HDR-150-15
• Output: 15 VDC, 9.5 A (150 W)
• Input: 85–264 VAC
• Form factor: Ultra slim DIN-rail power supply
• Dimensions: 105 mm × 54.5 mm × 90 mm
• Compliance: RoHS
• EAN: 4021087049580

How to use

Mount the HDR-150-15 onto a standard DIN rail inside an electrical cabinet and connect the AC input to an appropriate mains source within 85–264 VAC. Connect the 15 VDC output to the load, observing correct polarity and the 9.5 A maximum current rating. Provide adequate ventilation and follow local electrical codes during installation. Refer to the manufacturer's datasheet for detailed wiring diagrams and protection settings.
