Virtalähde Trendnet TI-M6024 v1.0R

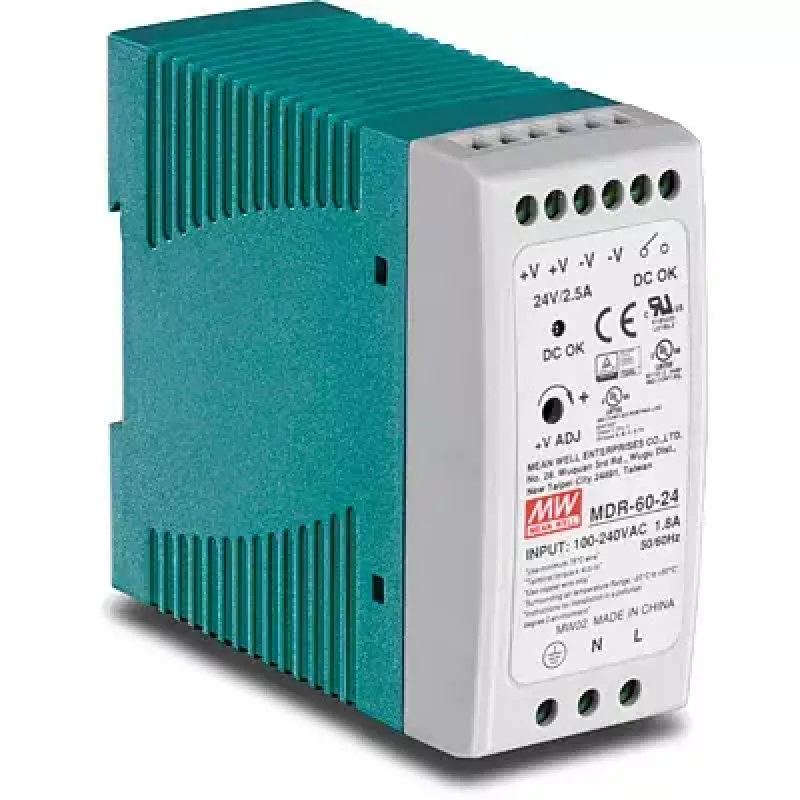

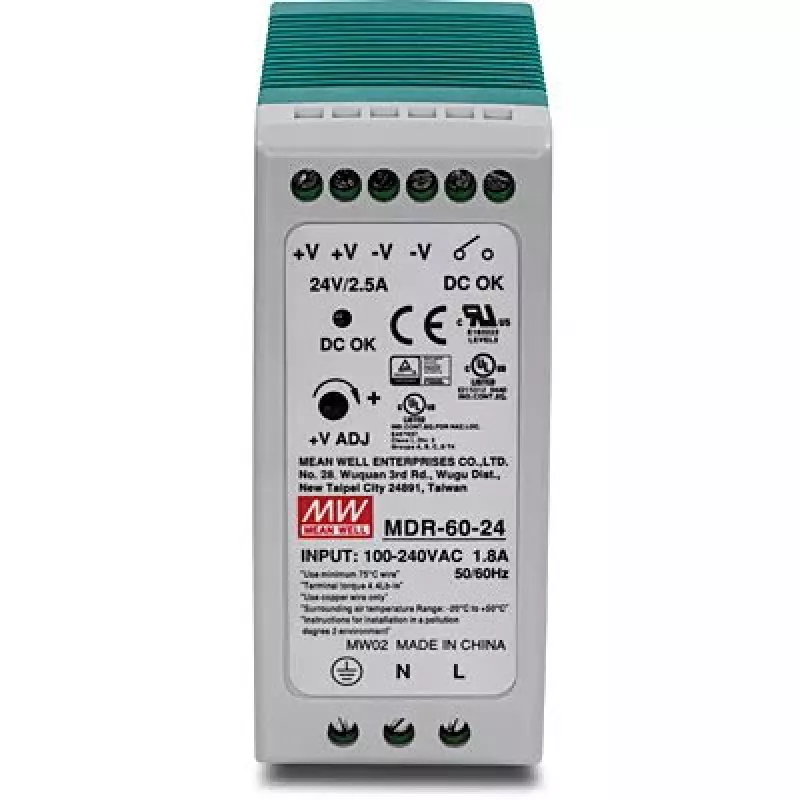

The Trendnet TI-M6024 v1.0R is an industrial DIN-rail power supply delivering up to 60 W of output power (24 V, 2.5 A). It accepts universal AC input (100–240 V, 50–60 Hz), includes built-in protections for short circuit, overload and over-voltage, and is UL 508 and CE certified. The unit is designed for extended operation in harsh environments with an operating temperature range from -20 to 70 °C and has undergone a 100% full-load burn-in test. Dimensions: 40 mm × 100 mm × 90 mm.

Advantages

The TI-M6024 offers compact DIN-rail mounting for easy integration into industrial panels, reliable 24 V / 2.5 A output for control and automation devices, and multiple safety protections to reduce risk of failure. Certification for UL 508 and CE ensures compliance with common industrial standards, while a wide operating temperature range and full-load burn-in testing support long-term stability in demanding environments.

Suitable for

• Industrial control systems and PLCs requiring 24 V power
• DIN-rail mounted automation panels and distribution boards
• Applications in harsh environments with wide temperature ranges

Key specifications

• Model: TI-M6024 v1.0R
• Output: 24 V DC, 2.5 A (60 W)
• Input: 100–240 V AC, 50–60 Hz
• Protections: short circuit, overload, over-voltage
• Certifications: UL 508, CE
• Operating temperature: -20 °C to 70 °C
• Dimensions: 40 mm × 100 mm × 90 mm

How to use

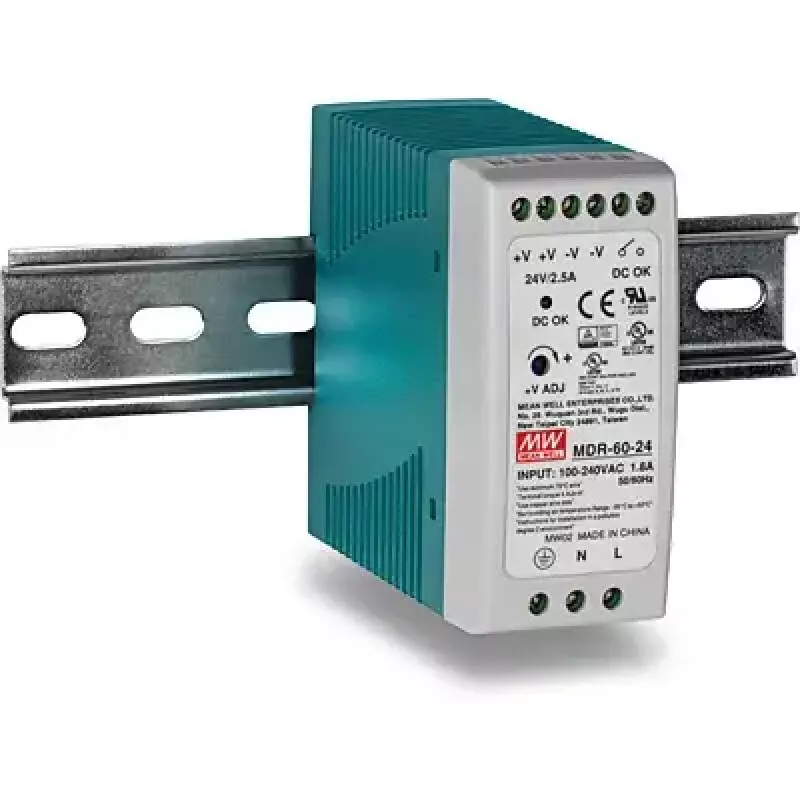

Mount the TI-M6024 on a standard DIN rail inside the control cabinet. Connect the AC mains (100–240 V AC) to the input terminals following local wiring codes and ensure correct polarity when connecting the 24 V DC output to your load. Verify grounding and protective earth connections per installation standards. Power up and confirm the DC output voltage is stable before connecting sensitive equipment.

Recommendations

Install the unit in a ventilated enclosure free from excessive dust, corrosive chemicals and direct heat sources. Allow adequate clearance on the DIN rail for heat dissipation. Regularly inspect terminal connections and wiring for tightness; use proper fusing on the AC input where required by local regulations.
