Vivolink VLSC262 videokytkin HDMI/DisplayPort

The Vivolink VLSC262 is a 6x1 presentation switcher that accepts multiple video sources via four HDMI inputs, one DisplayPort input and one USB‑C input, and provides mirrored HDMI and HDBaseT outputs. It supports resolutions up to 4K@30Hz and 1080p, and offers multi-view modes, audio embedding/de‑embedding and microphone mixing for meeting room and presentation environments.

Advantages

This switcher delivers seamless and automatic source switching to ensure smooth transitions between connected devices. The HDBaseT output supports Power over Cable (PoC) and can extend video and audio over a single CATx cable — up to 40 m for 4K@30Hz and up to 70 m for 1080p when paired with a compatible HDBaseT receiver. Multiple control options (front panel, GUI, IR remote, RS232 and CEC) and LED status indicators simplify integration and operation.

Suitable for

• Meeting rooms and conference spaces
• Lecture halls and classrooms
• Presentation systems requiring multiple source inputs
• Installations needing long‑reach signal extension via HDBaseT

Key specifications

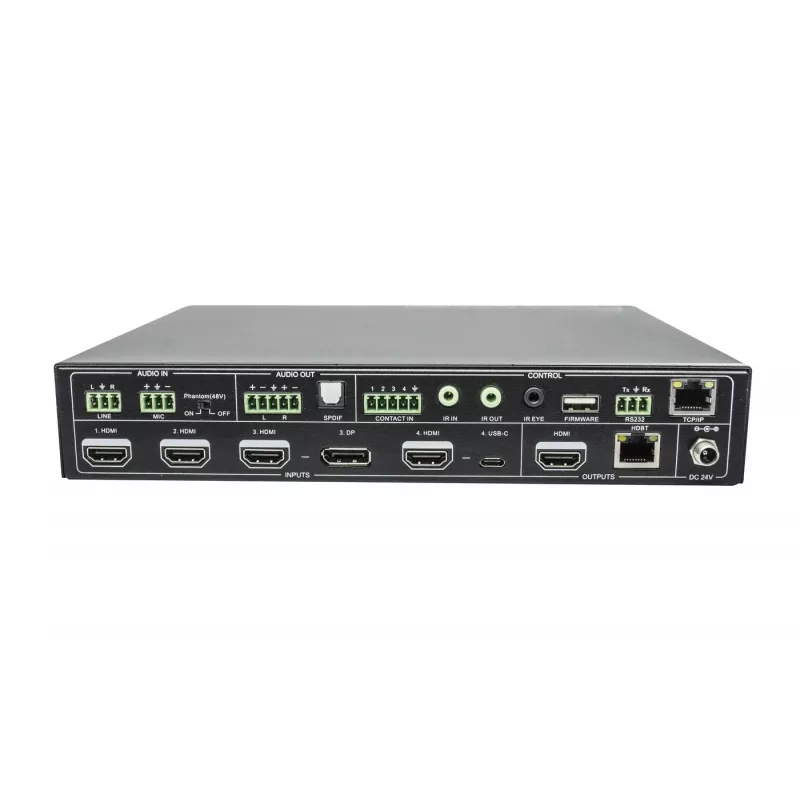

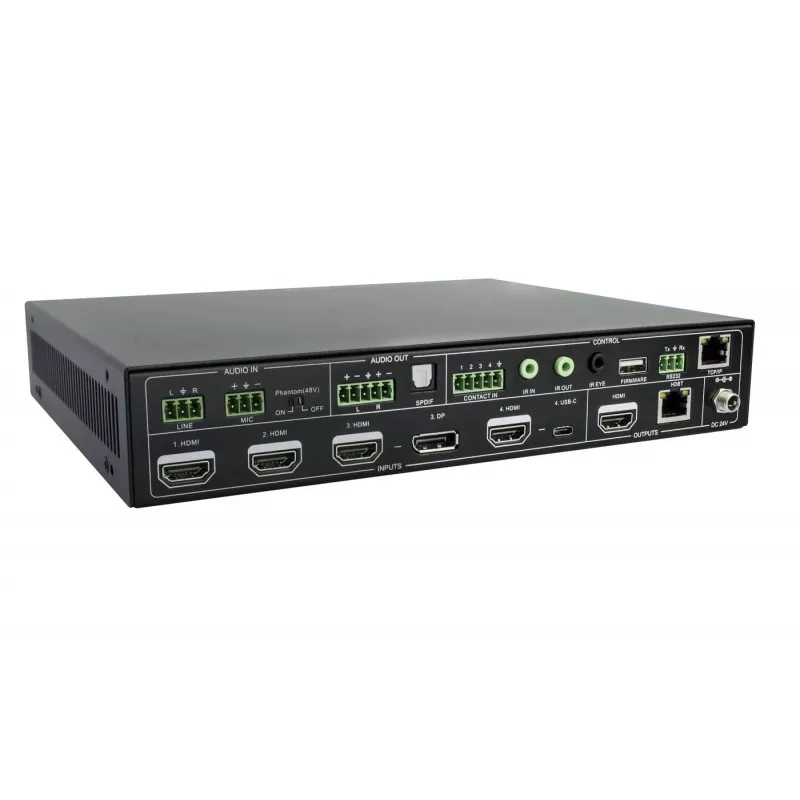

• Inputs: 4× HDMI, 1× DisplayPort, 1× USB‑C
• Outputs: Mirrored HDMI and HDBaseT
• Maximum resolution: 4K@30Hz; supports 1080p
• HDBaseT extension range: up to 40 m (4K@30Hz), up to 70 m (1080p) over CATx
• Audio: embedding, de‑embedding and microphone mixing

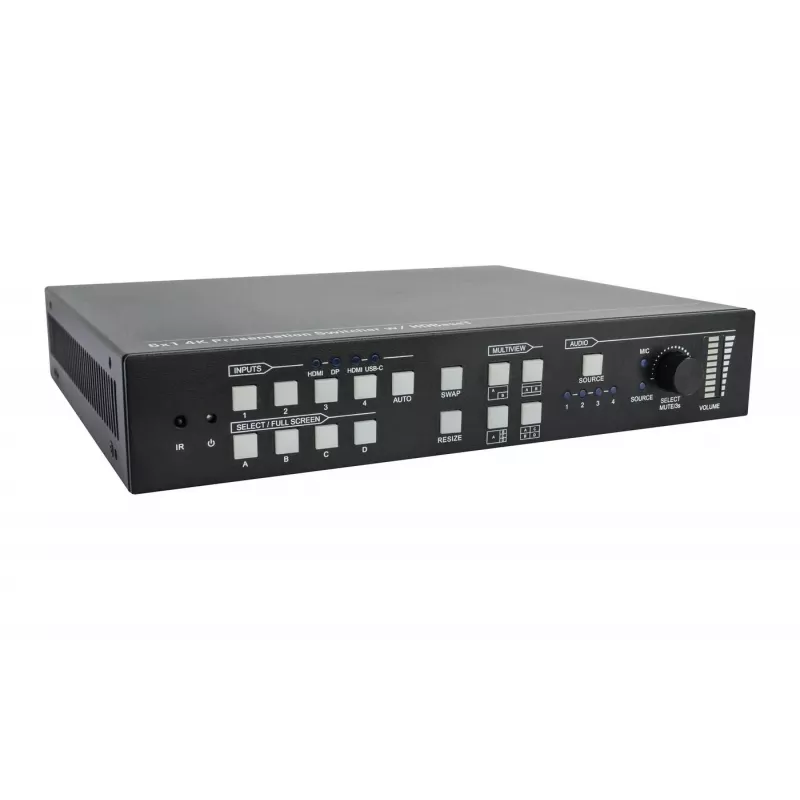

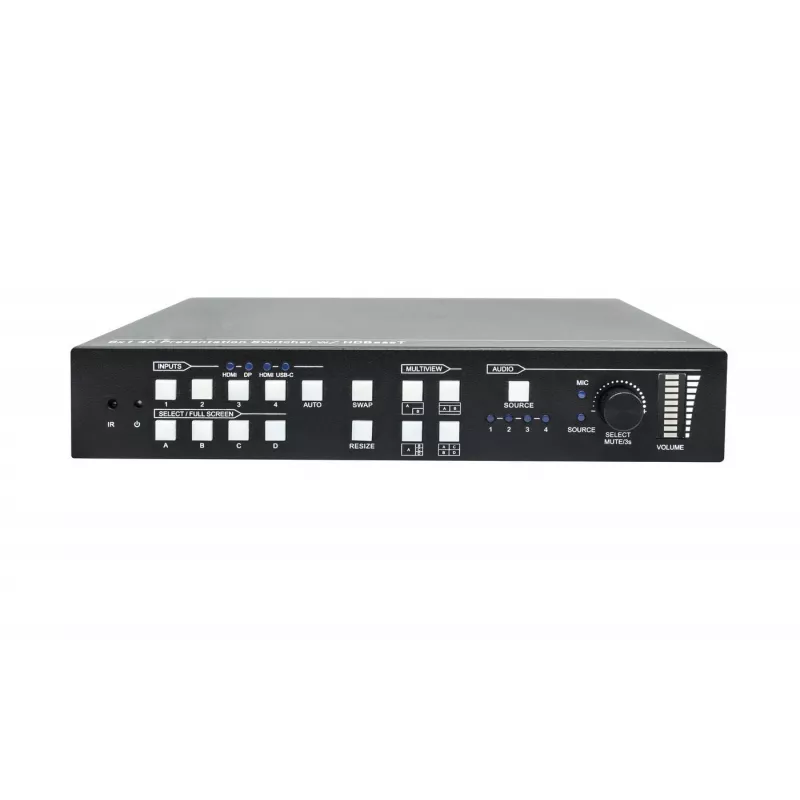

• Control interfaces: front panel buttons, GUI, IR remote, RS232, CEC
• Chassis: metal housing, black finish
• Power: external AC adapter (wide input range, 24 V output)
• Dimensions (W×D×H): 250 × 200 × 44 mm

How to use

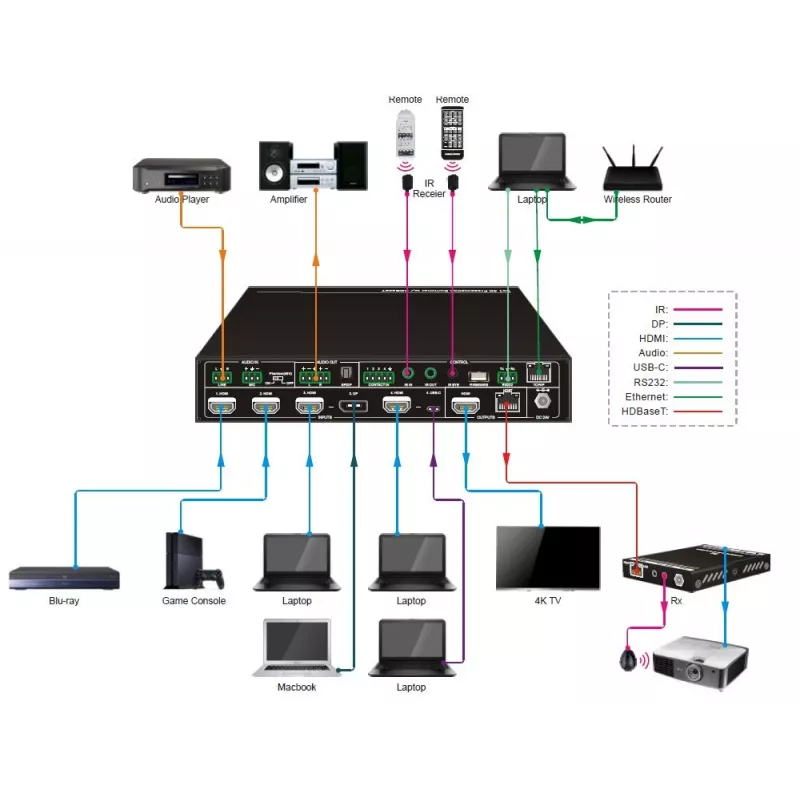

Connect source devices to the HDMI, DisplayPort or USB‑C inputs and connect displays or an HDBaseT receiver to the HDMI and HDBaseT outputs. Use the front panel buttons, on‑screen GUI, IR remote, RS232 or CEC control to switch sources or select multi‑view modes. If extending over HDBaseT, pair the unit with a compatible receiver and run a single CATx cable; ensure PoC is supported by the receiver if you require power over the cable.

Recommendations

For stable 4K@30Hz transmission over HDBaseT, use high quality CAT6 or better cables and keep cable runs within the recommended 40 m. Verify receiver compatibility for PoC and audio features before installation, and update the switcher’s firmware when available to maintain optimal interoperability.
