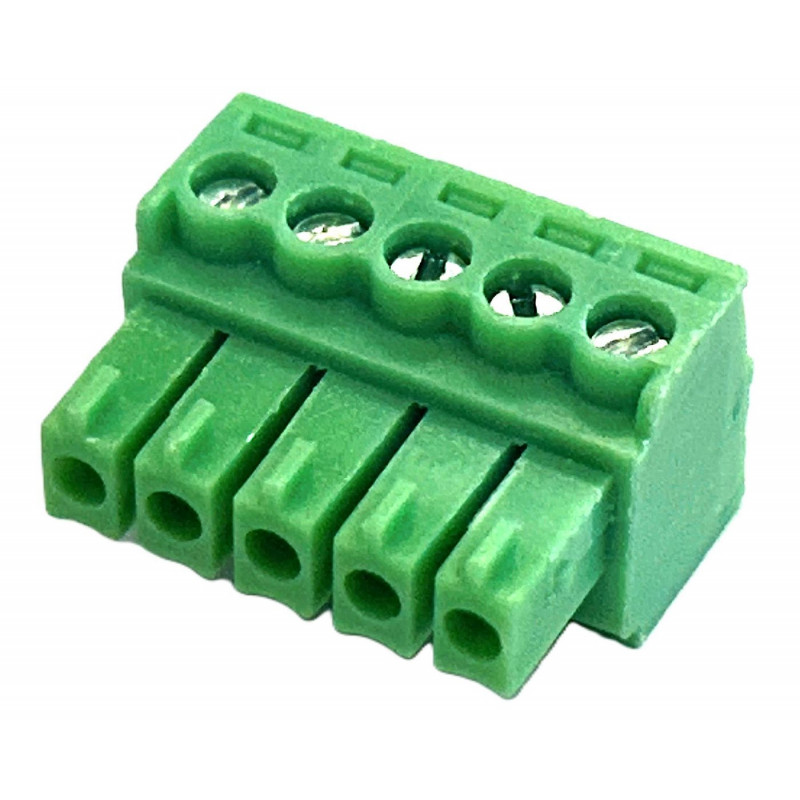

VIVOLINK 5-napainen Phoenix-ruuviliitin, 5,08 mm jako, vihreä

The VIVOLINK 5-pin green Phoenix connector stands out with its 5.08 mm pitch and screw-clamp termination, offering a reliable, tool-free wiring solution for industrial and AV installations. Unlike generic terminal blocks, its M3 screw thread and 12 A current rating support robust power and signal connections.

Highlights

• 5 positions with 5.08 mm pitch for standard industrial layouts
• Screw connection accepts solid or stranded conductors from 0.2 to 2.5 mm² (24–12 AWG)
• Rated for 12 A and 320 V (IEC), with 4 kV surge voltage capability
• Green UL 94 V-0 housing for high flammability resistance
• 180° horizontal wire entry simplifies panel wiring

In daily use

This connector is suited for field wiring of controllers, power supplies, and AV equipment. The M3 screws provide secure clamping, and the 7 mm stripping length allows quick preparation. Tin-plated copper alloy contacts ensure low contact resistance and corrosion resistance.

Full specifications

• Number of positions: 5
• Pitch: 5.08 mm
• Connection method: screw connection
• Conductor cross section (solid/stranded): 0.2–2.5 mm²
• Conductor cross section (AWG): 24–12
• Rated current (IEC): 12 A
• Rated voltage (IEC): 320 V
• Rated surge voltage (IEC): 4 kV
• Insulation material group: I
• Colour: green
• Contact material: copper alloy
• Contact surface: tin
• Screw thread: M3
• Stripping length: 7 mm
• Flammability rating: UL 94 V-0
• Pollution degree: 2
• Overvoltage category: III
• Wire entry angle: 180° (horizontal)

Final note

A dependable 5-pin screw terminal connector for secure, high-current connections in demanding environments.
