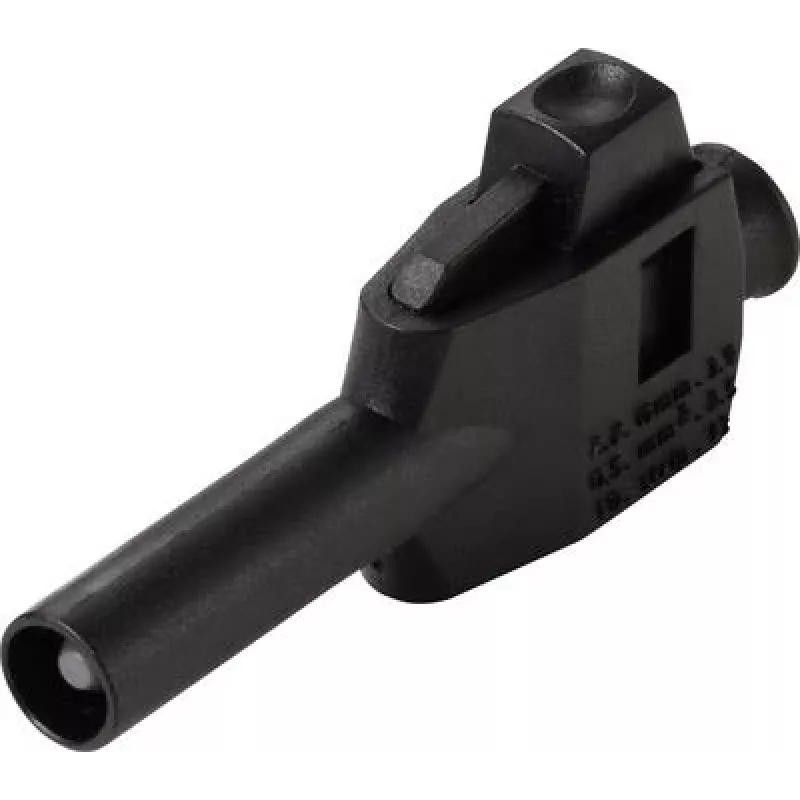

VOLTCRAFT MP-4 laboratoriokoestin, liitinliitäntä, suora, 4 mm pistoke, musta, 32 A, 60 V DC VC-17195190

Rated for an impressive 32 A, the VOLTCRAFT MP-4 laboratory plug delivers reliable high-current connectivity in a compact, safety-focused design. Its 4 mm nickel-plated brass pin ensures low contact resistance and excellent conductivity, making it an ideal choice for demanding lab environments, test setups, and educational applications.

Overview

The MP-4 is a straight laboratory plug featuring a secure clamp connection for easy, solder-free assembly. The black polyamide housing provides robust insulation and a comfortable grip, while the nickel-plated brass contact offers superior corrosion resistance and durability. Designed to meet IEC 61010 safety standards, this plug is rated for CAT I installations and operates safely within a temperature range of -25 °C to +70 °C.

What stands out

• High current rating of 32 A for demanding applications
• Tool-free clamp connection for quick and reliable wire termination
• 4 mm pin diameter compatible with standard laboratory sockets and leads
• Nickel-plated brass contact for excellent conductivity and long service life
• Durable polyamide housing with high mechanical strength and insulation
• Complies with IEC 61010 safety standards for laboratory equipment

Technical details

• Connector type: Straight plug
• Connection method: Clamp connection
• Pin diameter: 4 mm
• Rated current: 32 A
• Rated voltage: 60 V DC
• Contact material: Brass, nickel-plated
• Insulation material: Polyamide (PA)
• Housing material: Polyamide (PA)
• Temperature range: -25 °C to +70 °C
• Safety standard: IEC 61010
• Safety category: CAT I
• Colour: Black
• Number of pieces: 1

Our verdict

The VOLTCRAFT MP-4 laboratory plug combines high current capacity, robust construction, and user-friendly clamp termination. It is a dependable component for professionals and hobbyists who require secure and efficient connections in their test and measurement setups.
