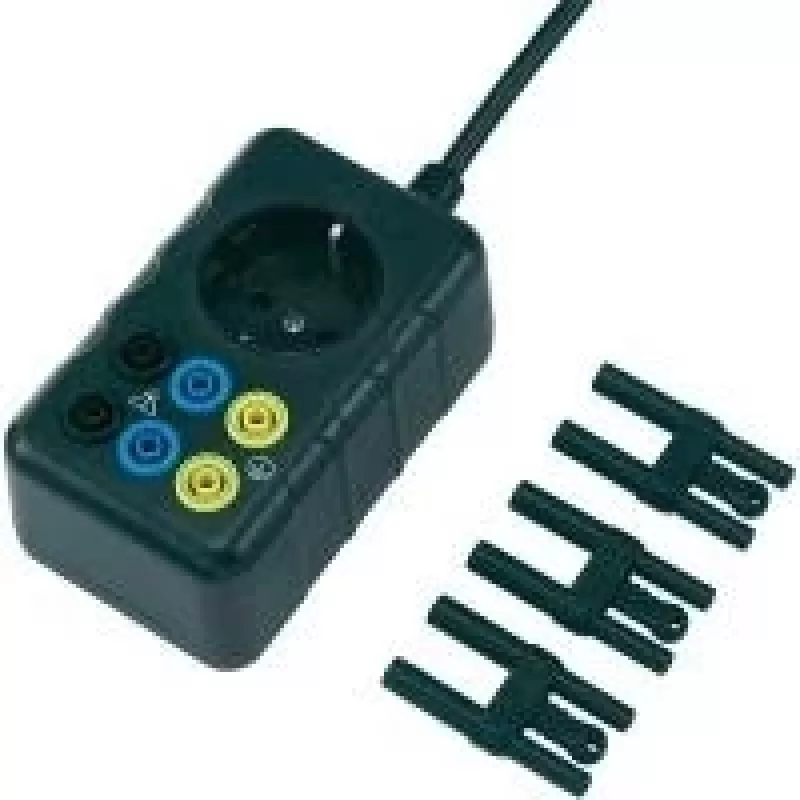

Voltcraft verkkomittaussovitin, Schuko-pistoke 4 mm turvahylsyihin, kosketussuojattu

This measurement adapter bridges the gap between a standard Schuko wall outlet and 4 mm safety test leads, enabling safe voltage and current measurements on live mains circuits without modifying the installation. Unlike generic breakout adapters, it maintains a pass-through Schuko socket so the connected load remains powered while you measure, and its fully insulated, touch-proof design protects against accidental contact.

Highlights

• Schuko plug (CEE 7/4) to Schuko socket (CEE 7/3) pass-through
• Two 4 mm safety sockets for Live and Neutral measurement
• Fully insulated, touch-proof housing
• Rated for 250 V AC, 16 A pass-through, 10 A measurement
• High-impact plastic body in black/grey

In daily use

Plug the adapter into a wall outlet and connect your multimeter or power analyzer via standard 4 mm safety leads. The pass-through socket allows the appliance under test to remain connected, so you can measure voltage drop or current draw under real load conditions. The compact, robust housing withstands workshop and field use.

Full specifications

• Input connector: Schuko plug (CEE 7/4)
• Pass-through output: Schuko socket (CEE 7/3)
• Measurement outputs: 2x 4 mm safety sockets
• Max. operating voltage: 250 V AC
• Max. current (pass-through): 16 A
• Max. current (4 mm sockets): 10 A
• Safety category: CAT II 250 V
• Protection class: IP20
• Housing material: high-impact plastic
• Colour: black/grey
• Connection type: plug-in adapter

Final note

Designed for qualified electricians and trained technicians performing measurements on mains circuits. Always observe local safety regulations and use appropriate personal protective equipment.
