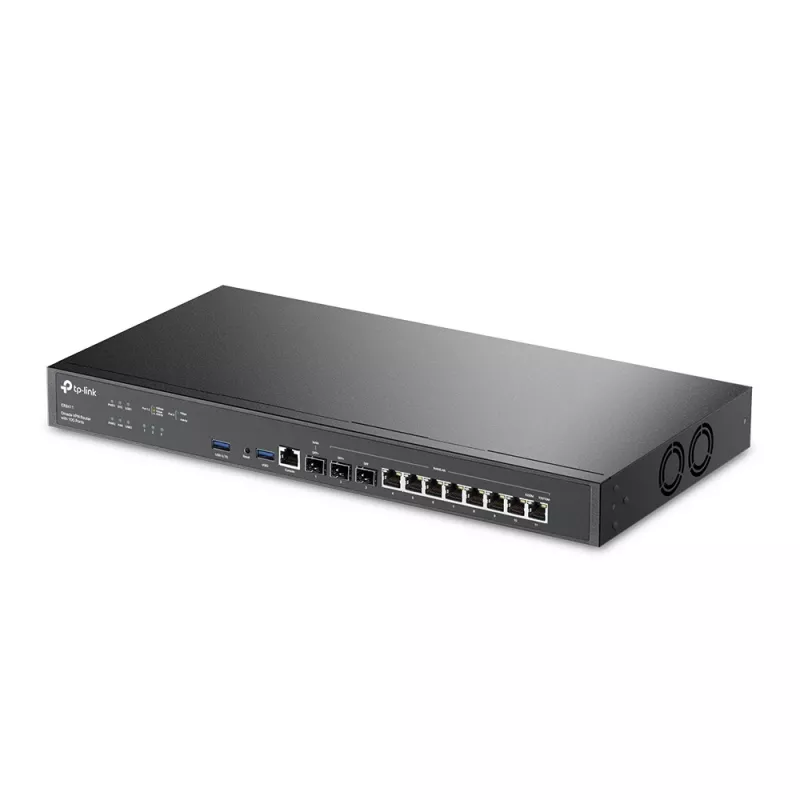

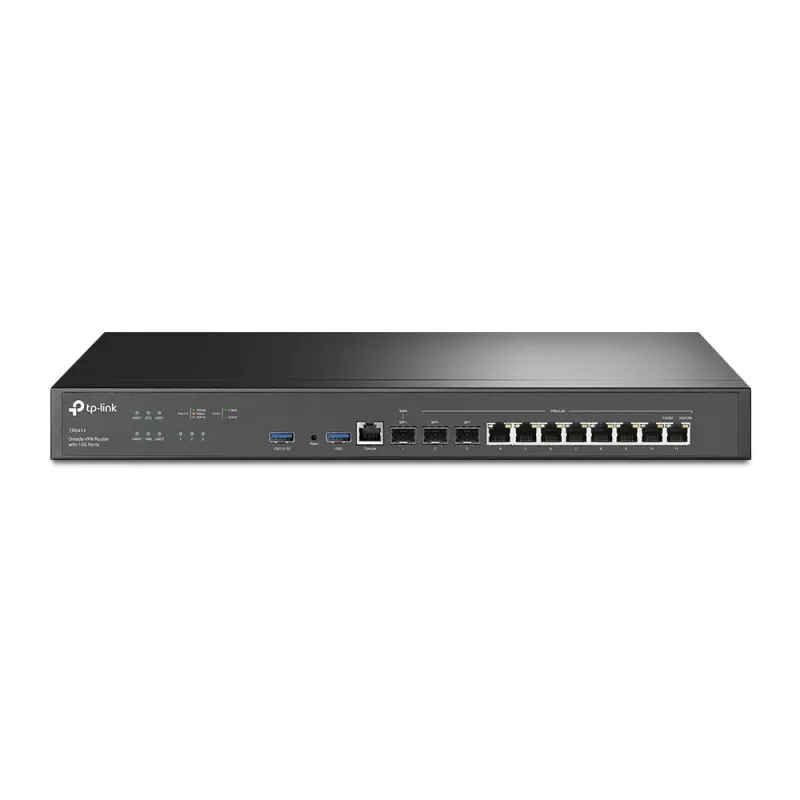

VPN-reititin TP-Link Omada ER8411 10G-porteilla

Future-Proof Your Business with 10G Enterprise Connectivity
Omada VPN Router with 10G Ports

Centralized Cloud Management
Seamless integration into the Omada SDN platform

Quad-Core 2.2 GHz CPU
Enterprise–level hardware design provides maximum performance

Two 10GE SFP+ Ports
High-bandwidth aggregation with 1× WAN and 1× WAN/LAN ports

Up to 10 WAN Ports
Multi-WAN Load Balance raises the utilization rate of multi-line broadband

Two USB 3.0 Ports
Available 4G/3G Modem connection for LTE WAN backup

High-Capacity Performance
Supports up to 2,300,000 concurrent sessions

High-Security VPN
Enterprise-standard SSL / IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN

Enhanced Security
Powerful Firewall, DoS defense, IP/MAC/URL/ Keyword filtering

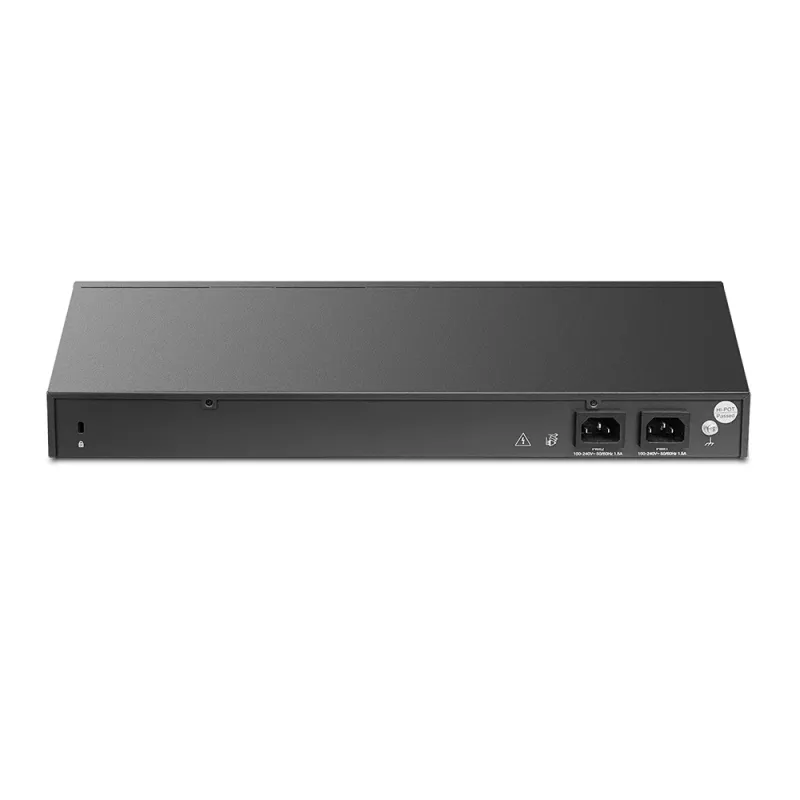

Dual Redundant Power Supplies
Carrier-class reliability for enterprise networking

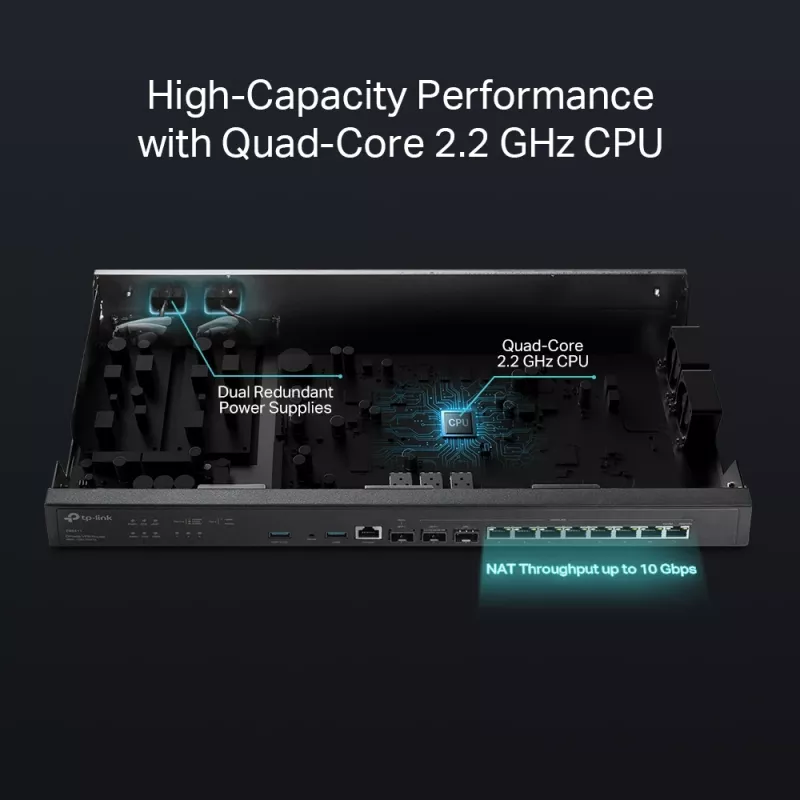

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.

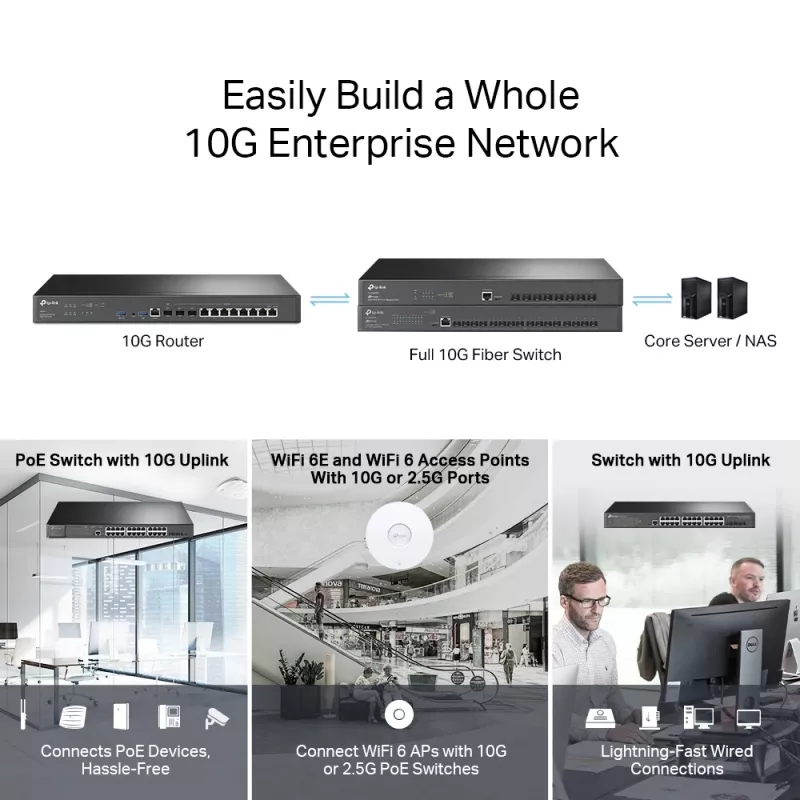

Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.

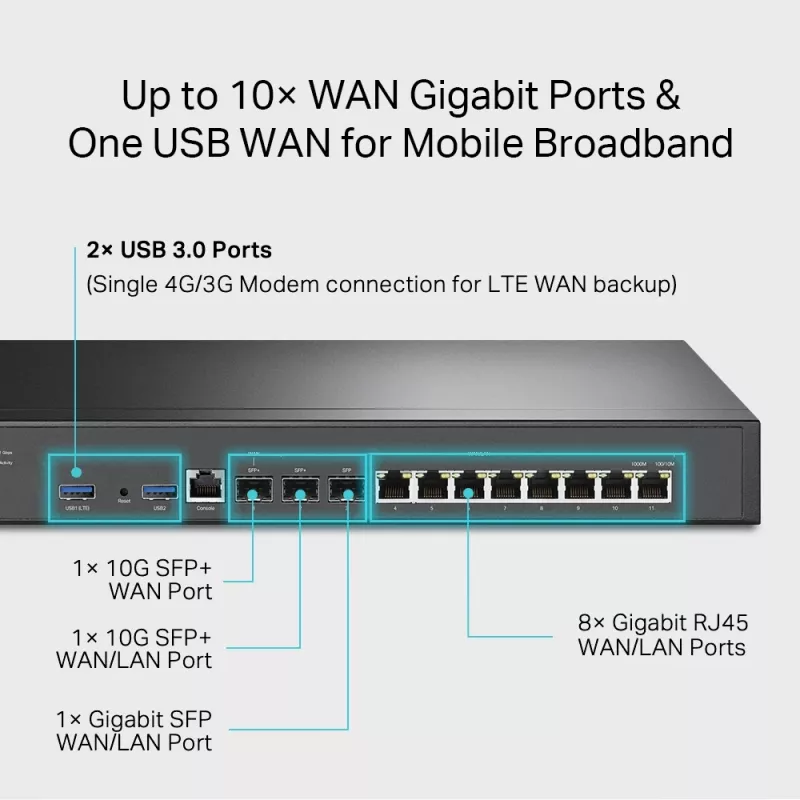

10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.

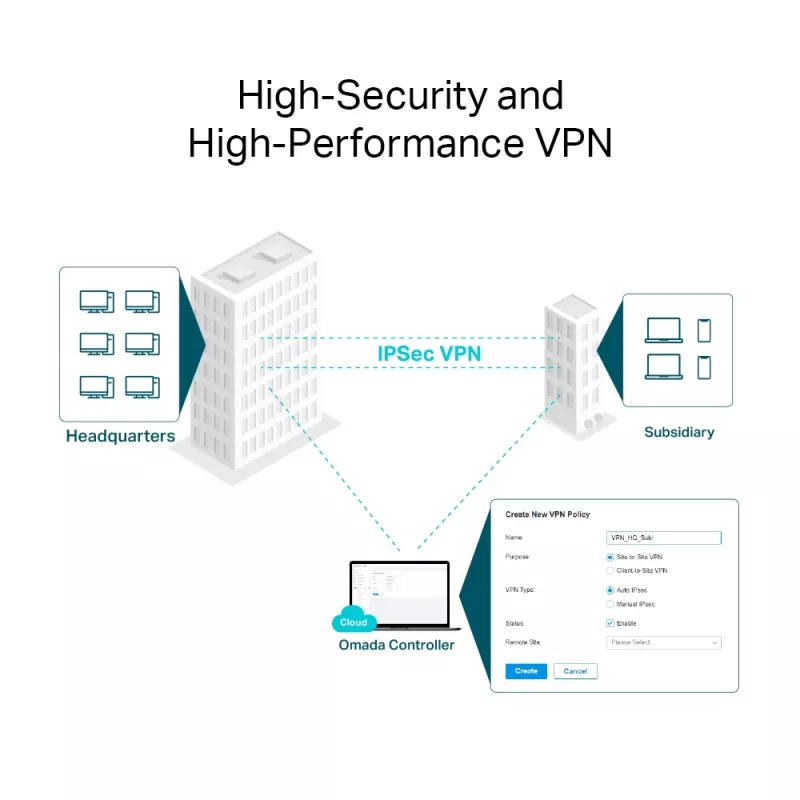

High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.

Robust Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

IP/MAC/URL/Keyword Filtering
Forcefully prevent viruses and attacks from intruders.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec, and PPTP.

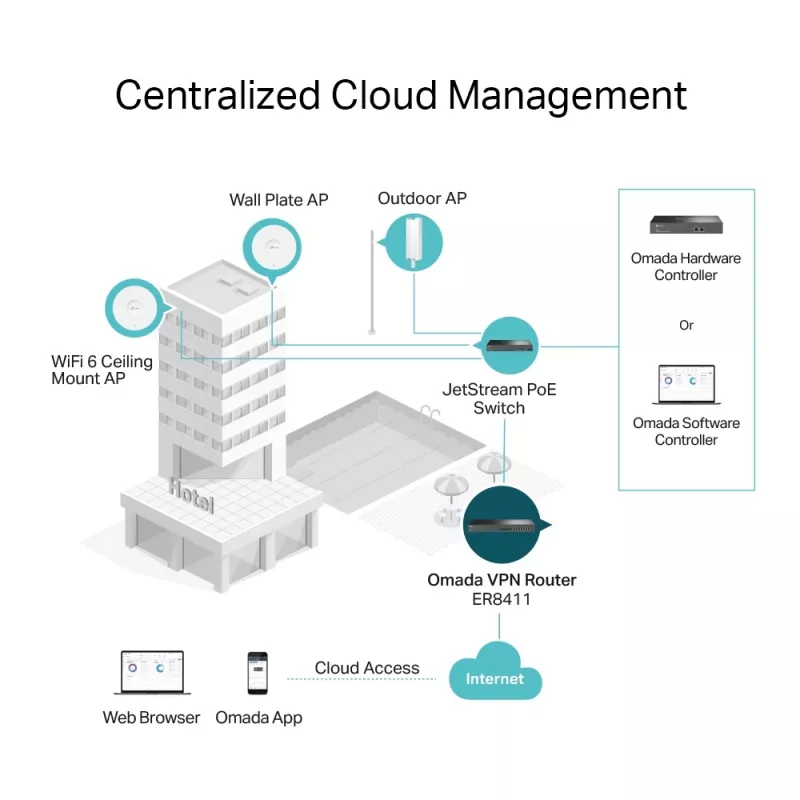

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

How to use

Install the ER8411 in a rack or on a stable surface and connect the power supplies. Use the 10GE SFP+ and RJ45 ports to connect your WAN uplinks and LAN switches according to your network design. For multi-WAN setups, assign WAN roles to available SFP+/SFP/RJ45 interfaces and configure Multi-WAN Load Balancing to distribute traffic across links. Insert a compatible 4G/3G USB modem into a USB 3.0 port to enable LTE WAN backup. Use the Omada SDN controller (cloud or local) to perform centralized configuration, monitor status, and manage devices across the network.

Recommendations

Place the router in a cooled, ventilated environment and use redundant power supplies for continuous operation. Keep firmware up to date and configure VPN, firewall and VLAN policies through the Omada controller to ensure secure, segmented access. For optimal 10G performance, use compatible SFP+ modules and high-quality cabling between the ER8411 and connected switches or servers.
