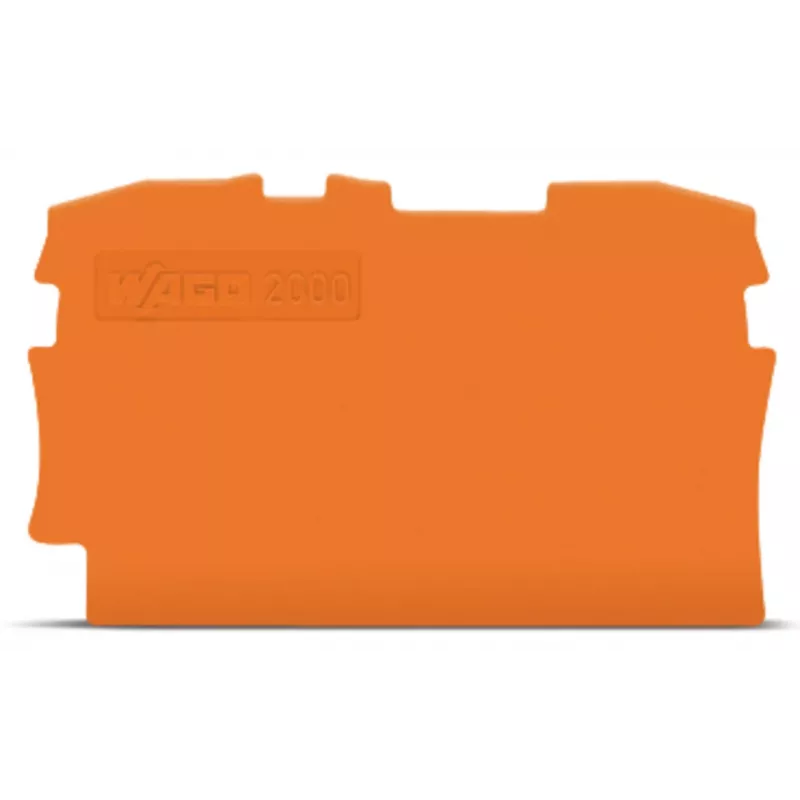

WAGO 2000-1292 pääty- ja välilevy, oranssi

The WAGO 2000-1292 is a high-quality through terminal block from the TOPJOB® S series, designed for reliable and maintenance-free electrical connections. With CAGE CLAMP® connection technology and front-entry wiring, it ensures fast, secure, and vibration-resistant terminations for solid and fine-stranded conductors up to 4 mm². Ideal for industrial control panels, building automation, and railway applications, this terminal block meets stringent safety standards with a rated voltage of 800 V and rated impulse voltage of 8 kV.

Advantages

• CAGE CLAMP® spring connection for tool-free, gas-tight wiring
• Compact 2-conductor design saves space on DIN-rail TS 35
• Wide conductor range (0.25–4 mm² / AWG 22–12) for flexibility
• High operating temperature range (-35 to +85 °C) for harsh environments
• UL 94 V-0 flammability rated polyamide housing for fire safety

Suitable for

• Industrial control cabinets and switchgear
• Building automation and HVAC systems
• Railway and transportation equipment
• Power distribution and junction boxes

Key specifications

• Number of conductors: 2
• Connection technology: CAGE CLAMP®
• Mounting type: DIN-rail (TS 35)
• Nominal cross-section: 2.5 mm² (AWG 14)
• Wiring type: Front-entry wiring
• Color: Gray
• Rated voltage (EN): 800 V
• Rated current (EN): 24 A
• Rated impulse voltage: 8 kV
• Pollution degree: 3
• Insulating material: Polyamide (PA 66)
• Flammability rating: UL 94 V-0
• Solid conductor size: 0.25–4 mm² (22–12 AWG)
• Fine-stranded conductor size: 0.25–4 mm² (22–12 AWG)
• Stripping length: 9–11 mm (0.35–0.43 inch)
• Operating temperature: -35 to +85 °C
• Series: TOPJOB® S
• Product type: Through terminal block

Recommendations

For optimal performance, use WAGO marking strips and test plugs designed for TOPJOB® S series. Ensure proper stripping length and conductor insertion to maintain rated electrical characteristics. Always follow local electrical codes and manufacturer guidelines.
