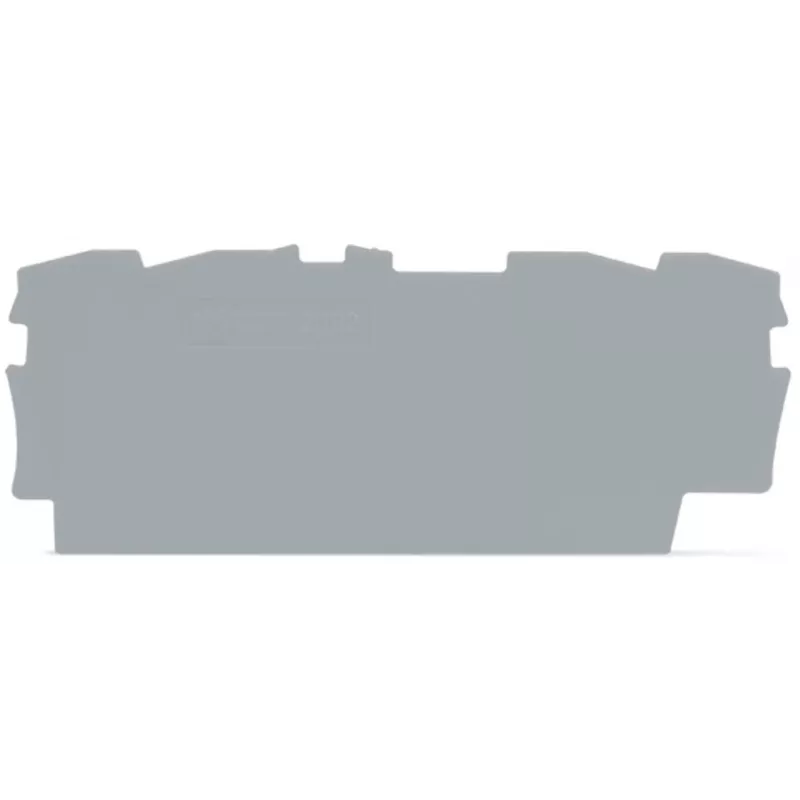

WAGO 2002-1491 pääty- ja välilevy, harmaa, 0,8 mm paksu

The WAGO 2002-1491 is a high-quality through terminal block from the TOPJOB® S series, designed for reliable and maintenance-free wiring in industrial and building installations. With CAGE CLAMP® S connection technology, it ensures secure, vibration-proof connections for solid, stranded, and fine-stranded conductors up to 4 mm². This 2-conductor terminal block is rated for 800 V and 24 A, making it suitable for a wide range of applications. Its compact design and gray polyamide housing provide durability and easy identification on DIN rail TS 35.

Advantages

• CAGE CLAMP® S spring connection for fast, tool-free wiring
• Compact 2-conductor design saves space on DIN rail
• Rated voltage up to 800 V and current up to 24 A for versatile use
• Vibration-proof and maintenance-free connections
• Clear gray color for easy circuit identification

Suitable for

• Industrial control cabinets
• Building automation systems
• Distribution boards and junction boxes
• Lighting and power distribution
• Machine and plant engineering

Key specifications

• Product Type: Through Terminal Block
• Series: TOPJOB® S
• Connection Technology: CAGE CLAMP® S
• Number of Conductors: 2
• Nominal Cross Section: 2.5 mm²
• Wire Size (Solid/Stranded): 0.25 - 2.5 mm² (22 - 12 AWG)
• Wire Size (Fine-Stranded): 0.25 - 4 mm² (22 - 12 AWG)
• Stripped Length: 9 - 10 mm
• Mounting Type: DIN Rail (TS 35)
• Rated Voltage (EN): 800 V
• Rated Current (EN): 24 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Insulating Material: Polyamide (PA)
• Color: Gray
• Number of Potentials: 1
• Number of Levels: 1
• Degree of Protection: IP20

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length (9-10 mm) for secure connection. Suitable for use in environments with pollution degree 3.
