WAGO 2002-2291 päätyle vy - harmaa - 0,8 mm - 69,7 mm - 51,7 mm - 2,41 g

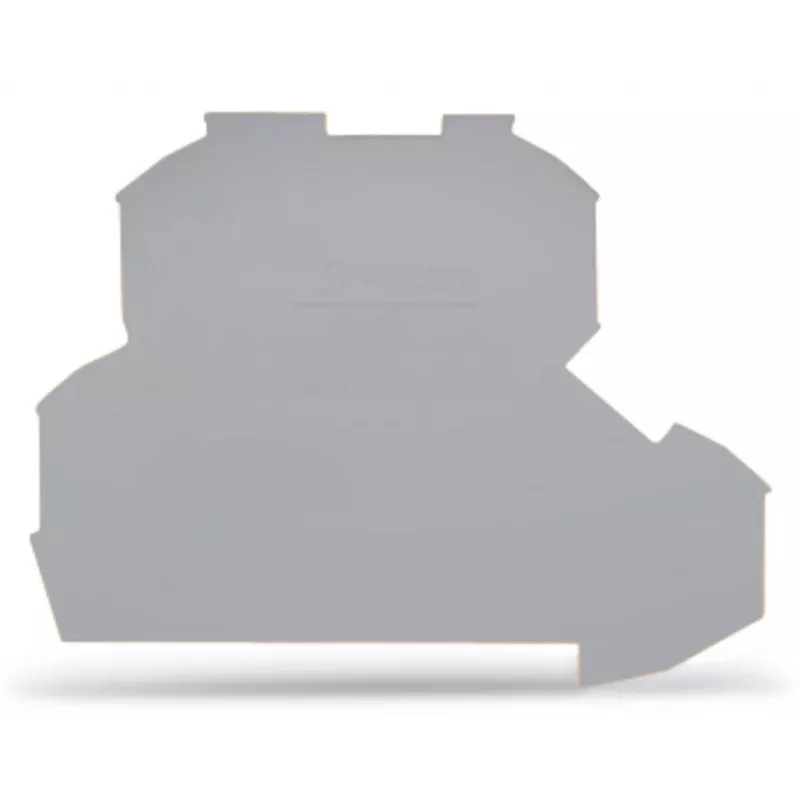

The WAGO 2002-2291 End Plate is a high-quality insulating and closing-off component designed for use with WAGO 2002 Series terminal blocks. Manufactured from durable polyamide 66 (PA 66) with a UL 94 V-0 flammability rating, this grey end plate ensures reliable electrical insulation and mechanical stability in demanding industrial environments. Its snap-on mounting allows for quick and secure attachment without tools.

Advantages

• Halogen-free and RoHS compliant for environmentally conscious installations
• Wide operating temperature range from -35 to +105 °C
• Compact dimensions: 0.8 mm width, 69.7 mm height, 51.7 mm depth
• Lightweight design at only 2.41 g
• Approved by UL, CSA, and VDE for global use

Suitable for

• Insulating and closing off terminal block assemblies in control cabinets
• Providing mechanical protection and electrical isolation for WAGO TOPJOB® S 2002 series
• Use in industrial automation, building infrastructure, and electrical distribution systems

Key specifications

• Product Type: End Plate
• Series: WAGO TOPJOB® S
• Compatibility: WAGO 2002 Series Terminal Blocks
• Colour: Grey
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Mounting Type: Snap-on
• Width (Thickness): 0.8 mm
• Height: 69.7 mm
• Depth: 51.7 mm
• Weight: 2.41 g
• Operating Temperature: -35 to +105 °C
• Storage Temperature: -35 to +105 °C
• Insulation Type: Solid
• Halogen-free: Yes
• RoHS Compliant: Yes
• Approvals: UL, CSA, VDE

Recommendations

For optimal performance, use this end plate with WAGO 2002 series terminal blocks. Ensure proper snap-on installation to maintain electrical safety and mechanical stability.
