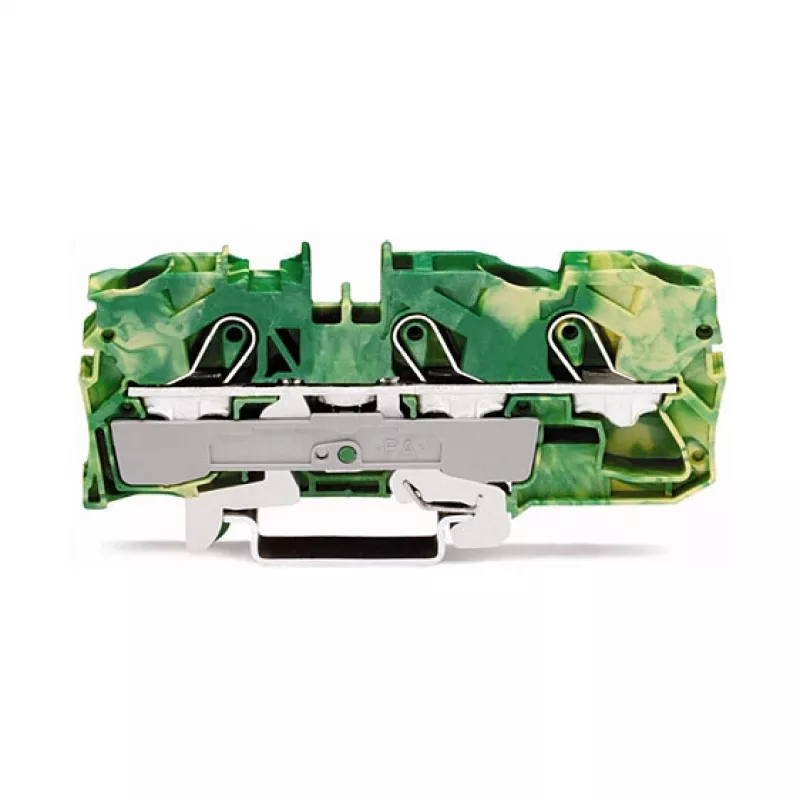

WAGO 2010-1307 3-johtiminen suojajohdinliitin, 10 mm²

The WAGO 2010-1307 is a 3-conductor protective conductor terminal block designed for a cable cross-section range of 0.5 mm² to 16 mm² (AWG 20–6). It features a green and yellow product colour and has compact dimensions of 10 mm width, 89 mm depth, and 36.9 mm height.

Key features

• 3-conductor protective conductor terminal block
• Product colour: Green, Yellow
• Cable cross-section: 0.5 mm² to 16 mm² (AWG 20–6)

Specifications

• Brand: WAGO
• MPN: 2010-1307
• Product colour: Green, Yellow
• Wire size (AWG): 20–6
• Minimum cable cross-section: 0.5 mm²
• Maximum cable cross-section: 16 mm²

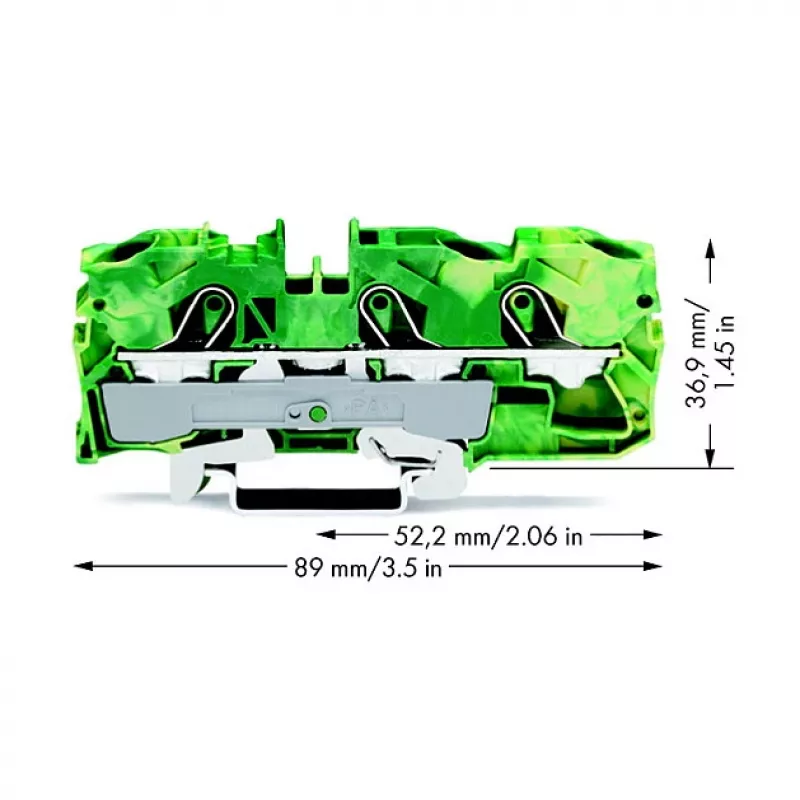

• Width: 10 mm
• Depth: 89 mm
• Height: 36.9 mm
