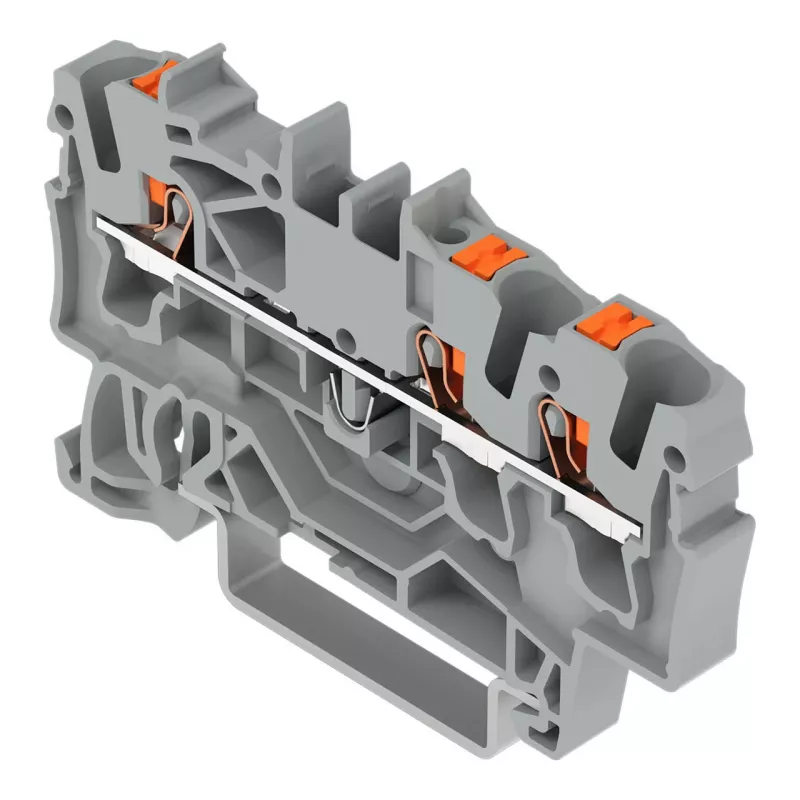

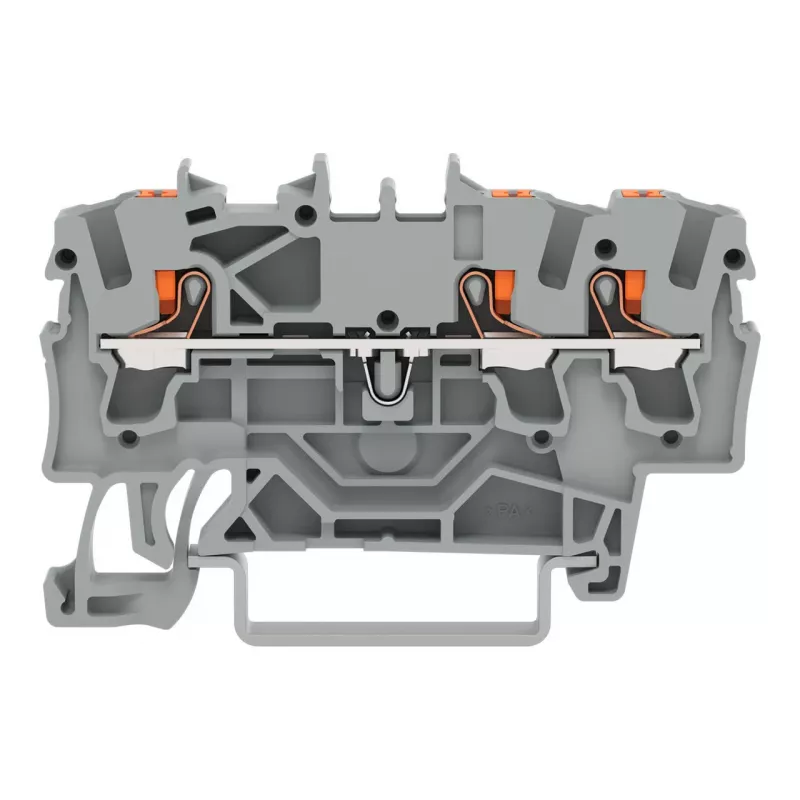

WAGO 2202-1301 - 3-johdin-läpivientiliitin painikkeella, 2,5 mm², harmaa

The WAGO 2202-1301 is a high-quality 3-conductor feedthrough terminal block from the TOPJOB® S series, designed for reliable and maintenance-free wiring in industrial and building installations. With its push-in CAGE CLAMP® connection technology, it enables fast and tool-free connection of solid and fine-stranded conductors up to 4 mm². The grey polyamide housing offers excellent insulation and a flammability rating of UL 94 V-0, ensuring safety in demanding environments.

Advantages

This terminal block simplifies installation with its front-entry wiring and push-button actuation, reducing wiring time by up to 50% compared to traditional screw terminals. The compact design saves space on DIN rails (35 x 15 / 35 x 7.5 mm) and supports a rated voltage of 800 V and rated current of 24 A, making it suitable for a wide range of applications. The clear marking and color coding enhance organization and reduce errors.

Suitable for

• Industrial control cabinets
• Building automation systems
• Distribution boards
• Lighting and power circuits
• Signal and sensor wiring

Key specifications

• Number of conductors: 3
• Connection technology: Push-in CAGE CLAMP®
• Actuation: Push-button
• Nominal cross-section: 2.5 mm² (12 AWG)
• Conductor size (solid): 0.25 - 4 mm² (22 - 12 AWG)
• Conductor size (fine-stranded): 0.25 - 4 mm² (22 - 12 AWG)
• Rated voltage (IEC): 800 V
• Rated current (IEC): 24 A
• Color: Grey
• Mounting: DIN rail (35 x 15 / 35 x 7.5)
• Insulation material: Polyamide (PA)
• Stripping length: 9 - 11 mm (0.35 - 0.43 inch)
• Pollution degree: 3
• Flammability rating: UL 94 V-0
• Operating temperature: -35 to +85 °C
• Wiring type: Front-entry
• Series: TOPJOB® S

Recommendations

For optimal performance, use WAGO ferrule crimpers and marking strips. Ensure proper stripping length and conductor insertion to maintain rated electrical characteristics. This terminal block is compatible with all standard DIN rail accessories.
