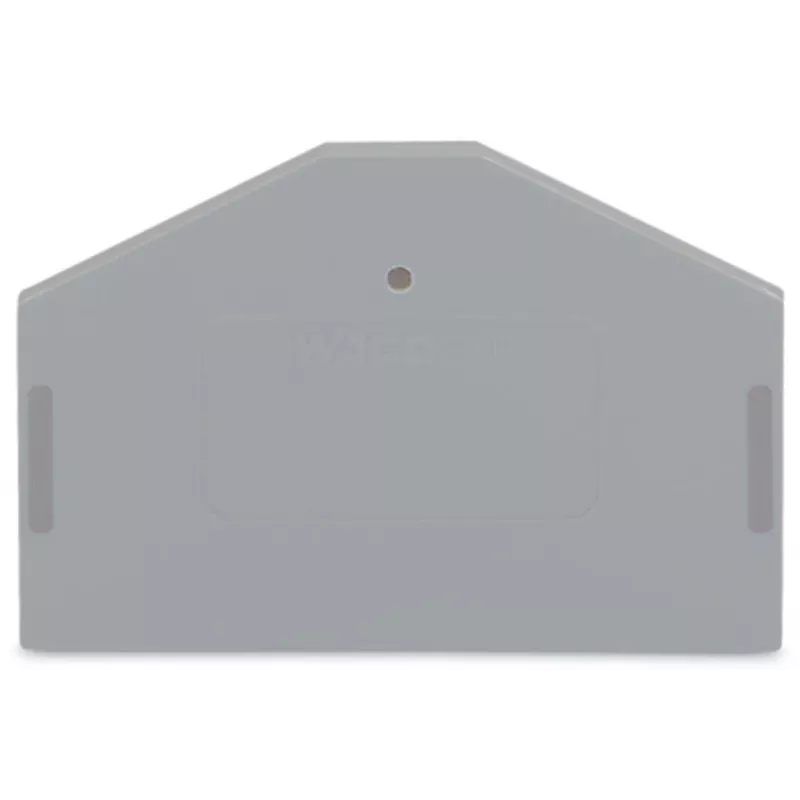

WAGO 280-312 pääty- ja välilevy, harmaa, 2,5 mm², 50 mm x 36,5 mm, 2,8 g

The WAGO 280-312 is a high-quality end and intermediate plate designed for use with 2-conductor through terminal blocks from the WAGO 280 series. This grey polyamide 66 (PA 66) plate provides reliable insulation and separation between terminal blocks, ensuring safe and organized wiring in industrial and building installations. With a thickness of 1.5 mm and a snap-on mounting type, it is easy to install and offers a secure fit. The plate is rated for operating temperatures from -35 °C to +105 °C and meets stringent flammability standards (UL94 V-0). It is RoHS and REACH compliant, and certified by VDE, UL, CSA, and various maritime authorities (GL, BV, LR, RINA, DNV).

Advantages

• Ensures safe separation and insulation between terminal blocks
• Snap-on mounting for quick and secure installation
• High-quality PA 66 material with UL94 V-0 flammability rating
• Wide operating temperature range from -35 °C to +105 °C
• Compliant with RoHS and REACH directives
• Certified by VDE, UL, CSA, and major maritime classification societies

Suitable for

• Industrial control cabinets and distribution boards
• Building automation and electrical installations
• Marine and offshore applications
• Railway and transportation systems
• Any application requiring reliable terminal block separation

Key specifications

• Product Type: End and Intermediate Plate
• Series: 280 Series
• Colour: Grey
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL94 V-0
• Mounting Type: Snap-on
• Compatible Terminal Block Type: 2-conductor through terminal blocks
• Nominal Cross Section Compatibility: 2.5 mm²
• Plate Thickness: 1.5 mm
• Dimensions (W x H x D): 50 mm x 36.5 mm x 2.5 mm
• Weight: 2.8 g
• Operating Temperature: -35 °C to +105 °C
• Storage Temperature: -35 °C to +105 °C
• Pollution Degree: 3
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Standards/Certifications: VDE, UL, CSA, GL, BV, LR, RINA, DNV

Recommendations

For optimal performance and safety, use the WAGO 280-312 end and intermediate plate with WAGO 280 series 2-conductor through terminal blocks. Ensure proper snap-on installation to achieve secure separation. This plate is ideal for applications requiring high reliability and compliance with international standards.
