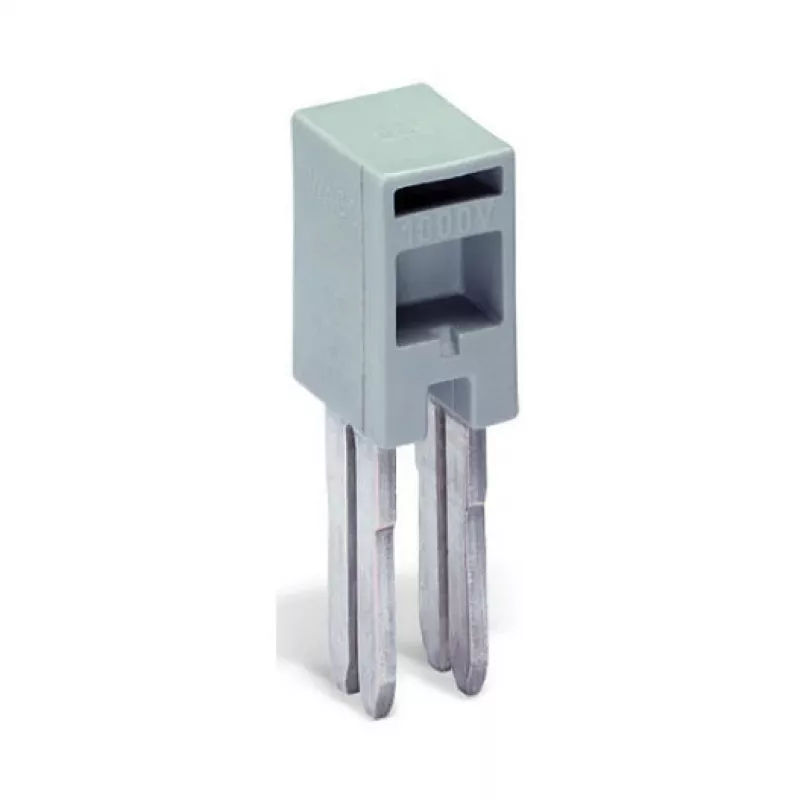

WAGO 285-435 eristetyt sillat, 5-napainen, harmaa, 800V, 41A

The WAGO 285-435 is a high-quality insulated jumper bar (cross-connector) designed for potential distribution in WAGO 285 Series terminal blocks. With 5 poles and a 6 mm pitch, it enables efficient bridging of adjacent terminals, reducing wiring time and ensuring reliable electrical connections. Rated for 800 V and 41 A, this jumper bar is suitable for demanding industrial applications.

Advantages

Insulated design prevents accidental contact and short circuits. Push-in CAGE CLAMP® technology ensures fast, tool-free installation. Compact and robust polyamide housing with UL 94 V-0 flammability rating guarantees safety and durability.

Suitable for

• Industrial control panels
• Building automation
• Distribution boards
• Machine wiring

Key specifications

• Product Type: Jumper Bar / Cross-connector
• Number of Poles: 5
• Insulation: Insulated
• Compatibility: WAGO 285 Series
• Pitch: 6 mm
• Rated Voltage (EN): 800 V
• Rated Current (EN): 41 A
• Material: Polyamide (PA66)
• Color: Gray
• Flammability Rating: UL 94 V-0
• Operating Temperature: -35 to +105 °C
• Connection Technology: Push-in CAGE CLAMP®
• Mounting Position: Horizontal
• Function: Potential distribution / Bridging
• Number of Potentials: 1
• Approvals: VDE, UL, CSA

Recommendations

For optimal performance, use with WAGO 285 Series terminal blocks. Ensure proper installation according to manufacturer guidelines. This jumper bar is ideal for creating equipotential bonding and simplifying wiring in multi-level terminal blocks.
