WAGO 750-348 ECO CANopen kenttäväyläliitin, D-Sub 9-napainen, 24 VDC, DIN-kisko, harmaa

Auto-baud detection from 10 kbit/s to 1 Mbit/s makes the WAGO 750-348 ECO a standout CANopen slave coupler, eliminating manual configuration and ensuring reliable communication even in electrically noisy environments. This fieldbus coupler acts as the gateway between a CANopen network and WAGO's 750-series I/O system, supporting up to 64 digital, analog, or special function modules on a single node.

Overview

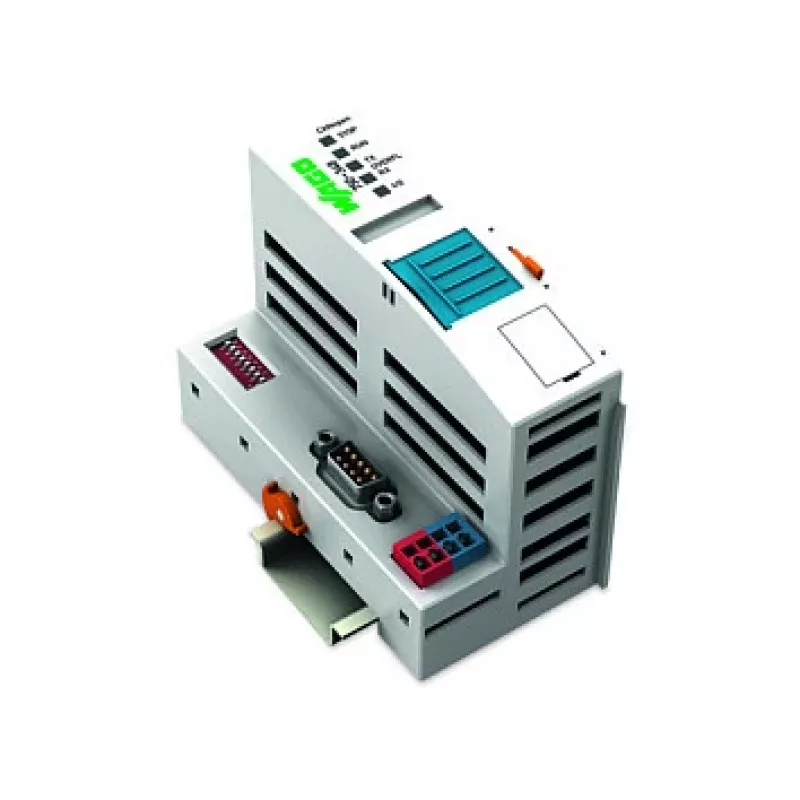

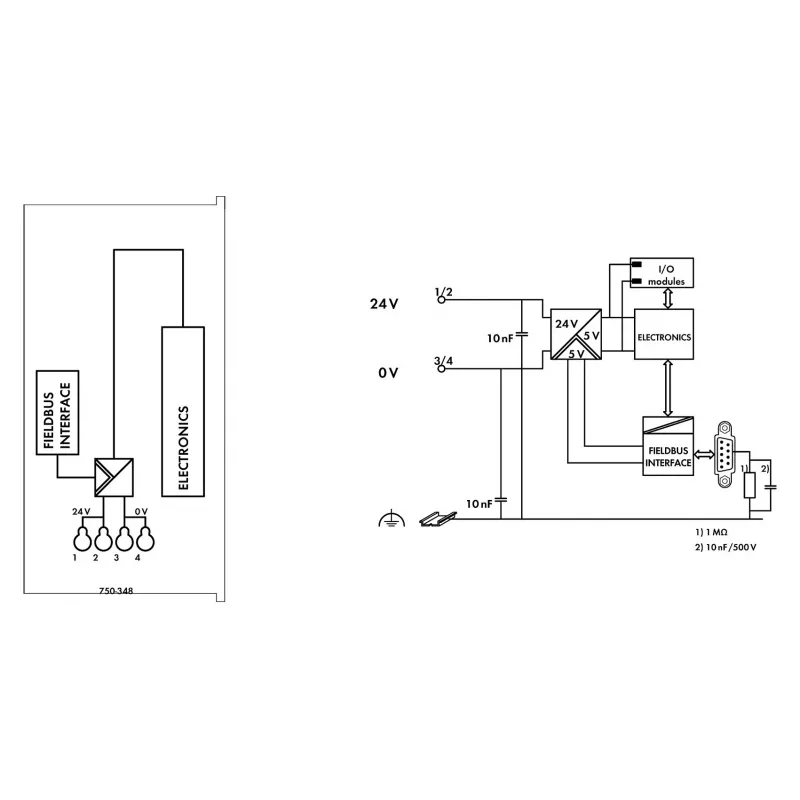

The WAGO 750-348 ECO features a standard D-sub 9-pin male interface and operates on 24 VDC system and field supplies (18–30 VDC range). It mounts directly onto a 35 mm DIN rail and provides full galvanic isolation between system and field, protecting connected electronics from interference. Its compact polycarbonate housing is rated IP20 for control cabinet use.

What stands out

• Auto-baud detection from 10 kbit/s to 1 Mbit/s simplifies network setup and prevents errors.
• Supports up to 64 I/O modules for scalable automation solutions.
• Galvanic isolation between system and field enhances noise immunity.
• Standard D-sub 9-pin connector ensures compatibility with common CANopen cabling.

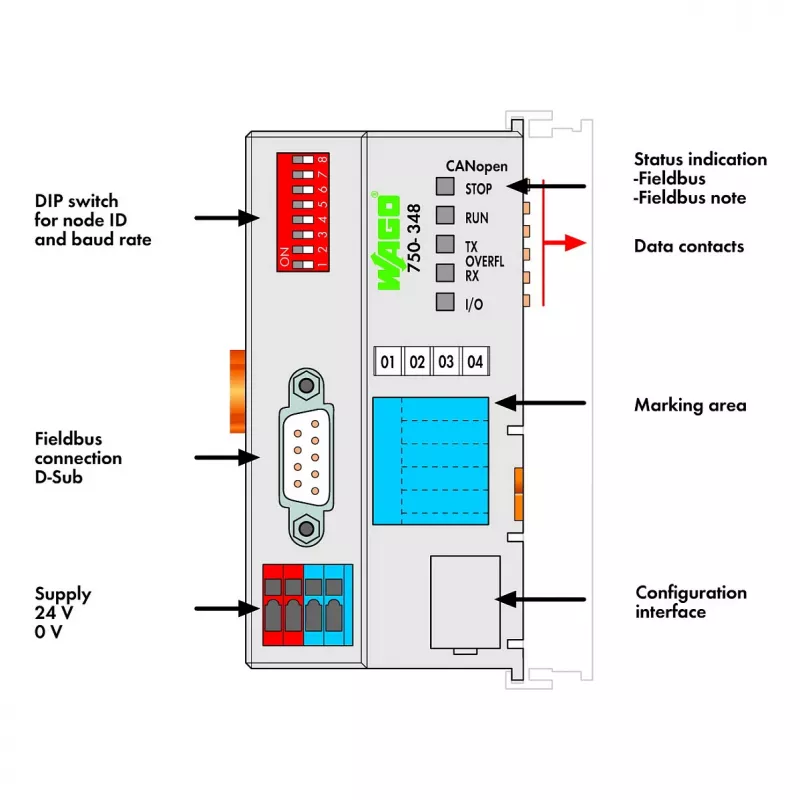

• LED indicators for bus status, I/O status, and power enable quick diagnostics.

Technical details

• Fieldbus protocol: CANopen (slave)
• Fieldbus interface: D-sub 9-pin (male)
• Baud rate: 10 kbit/s to 1 Mbit/s, auto-detect
• System supply voltage: 24 VDC (18–30 VDC)
• Field supply voltage: 24 VDC (18–30 VDC)
• Current consumption (system): 100 mA typical
• Current consumption (field): max. 10 mA (without I/O modules)
• Number of I/O modules: max. 64
• Internal bus: K-Bus
• Configuration: EDS file, WAGO-I/O-PRO
• Mounting type: DIN-rail 35 mm
• Operating temperature: 0 to +55 °C
• Storage temperature: -25 to +85 °C
• Protection class: IP20
• Isolation: System/Field
• LED indicators: Bus status, I/O status, Power
• Housing material: Polycarbonate
• Communication mode: CANopen Slave

Our verdict

The WAGO 750-348 ECO is a reliable and cost-effective CANopen coupler for industrial automation, offering auto-baud detection and robust isolation in a compact DIN-rail package.
