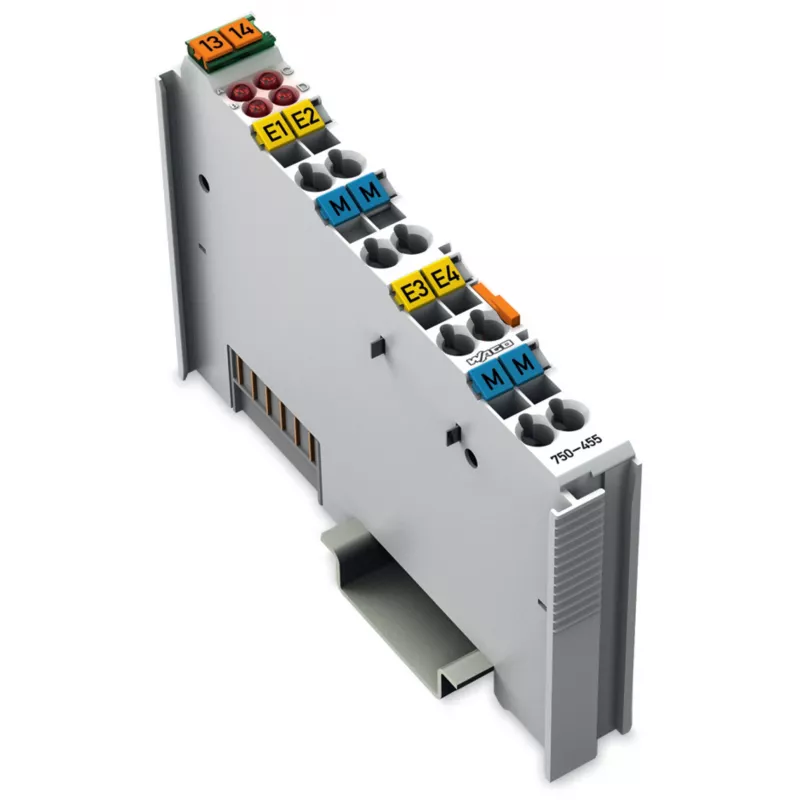

WAGO 750-455 4-kanavainen analoginen tulomoduuli, 0,5 kV, 32 V, 12 bit, 100 ohm

The WAGO 750-455 is a high-quality 4-channel analog input module designed for industrial automation applications. It provides reliable signal acquisition with a resolution of 12 bits and supports input voltages up to 32 V. With a dielectric strength of 0.5 kV and an input impedance of 100 Ohm, this module ensures accurate and stable measurements in demanding environments.

Advantages

Compact design for space-saving installation; robust construction for long-term reliability; easy integration into WAGO I/O systems; precise 12-bit resolution for accurate data acquisition.

Suitable for

• Industrial automation and control systems
• Process monitoring and data acquisition
• Building automation and energy management
• Machine and plant engineering

Key specifications

• Number of channels: 4
• Input type: Voltage
• Input voltage range: 0-32 V
• Resolution: 12 bits
• Input impedance: 100 Ohm
• Dielectric strength: 0.5 kV
• Operating temperature: 0-55 °C
• Storage temperature: -25-85 °C
• Dimensions (WxHxD): 12 x 64 x 100 mm
• Weight: 50 g

Recommendations

For optimal performance, use with WAGO 750 series bus couplers and power supply modules. Ensure proper grounding and shielding according to installation guidelines.
