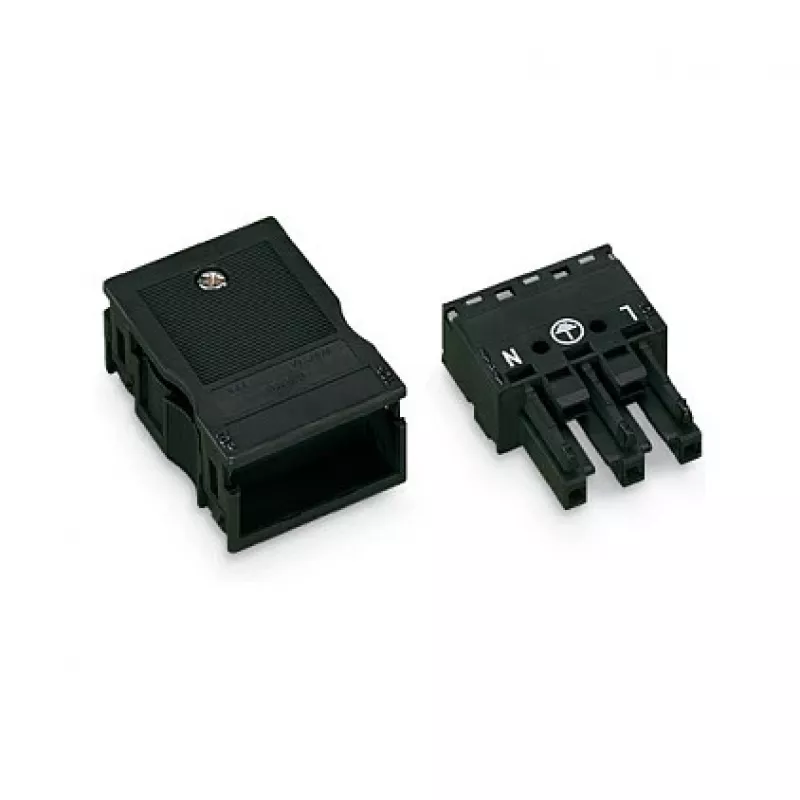

WAGO 770-103 WINSTA® MINI 3-napainen liitin, musta

The WAGO 770-103 is a 3-pole plug connector from the WINSTA® MINI series, designed for reliable and space-saving electrical connections. With CAGE CLAMP® connection technology, it ensures secure, vibration-resistant wiring for solid and fine-stranded conductors. Ideal for industrial and building automation applications.

Advantages

Tool-free CAGE CLAMP® connection reduces installation time. Compact design saves space in control cabinets. High rated current of 16 A and voltage of 250 V ensure robust performance. V0 flammability rating enhances safety.

Suitable for

• Industrial control systems
• Building automation
• Lighting installations
• Sensor and actuator connections

Key specifications

• Number of Poles: 3
• Connector Type: Plug (Male)
• Series: WINSTA® MINI
• Coding: A
• Rated Voltage: 250 V
• Rated Current: 16 A
• Connection Technology: CAGE CLAMP®
• Conductor Cross-section (Solid): 0.5 ... 1.5 mm² (20 ... 16 AWG)
• Conductor Cross-section (Fine-stranded): 0.5 ... 1.5 mm² (20 ... 16 AWG)
• Wire Stripping Length: 9 mm (0.35 inch)
• Color: Black
• Housing Material: Polyamide 66 (PA 66)
• Contact Material: Electrolytic copper (Ecu)
• Contact Plating: Tin-plated
• Pollution Degree: 3
• Flammability Class (UL94): V0
• Operating Temperature: -35 ... +85 °C
• Protection Type: IP20

Recommendations

For optimal performance, use with WINSTA® MINI mating connectors and ensure proper wire stripping length. Suitable for indoor use only.
