WAGO 777-305 asennusteline sarjan 277 riviliittimille, DIN-kisko, vaaleanharmaa

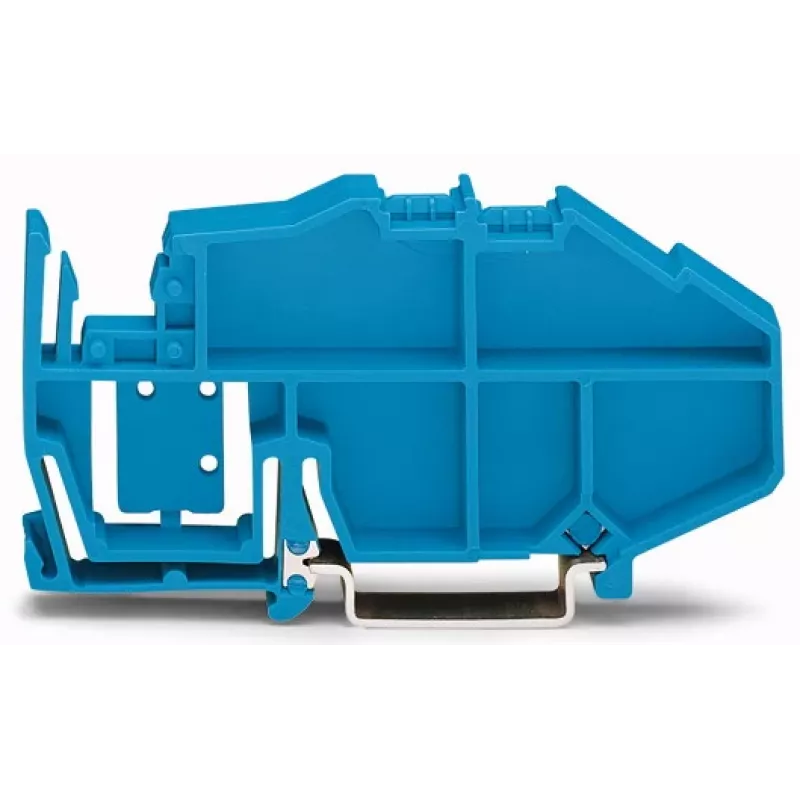

The WAGO 777-305 is a high-quality mounting carrier specifically designed for use with WAGO 277 series rail-mount terminal blocks. This mounting carrier provides a secure and reliable mounting solution for DIN rail (TS 35) applications, ensuring stable installation in industrial and commercial environments. Manufactured from durable Polyamide 66 (PA 66) with a light grey finish, it offers excellent mechanical strength and electrical insulation properties.

Advantages

• Robust construction from Polyamide 66 ensures long-lasting performance and resistance to impact and vibration.
• Easy snap-on mounting on DIN rail TS 35 simplifies installation and reduces assembly time.
• Compatible with WAGO 277 series terminal blocks, providing a complete and reliable connection system.
• Light grey color allows for easy identification and integration into existing installations.
• RoHS and REACH compliant, meeting environmental and safety standards.

Suitable for

• Industrial control cabinets and switchgear
• Building automation systems
• Electrical distribution panels
• Any application requiring secure mounting of WAGO 277 series terminal blocks

Key specifications

• Product Type: Mounting Carrier
• Compatible Terminal Block Series: WAGO 277 Series
• Mounting Type: DIN Rail (TS 35)
• Material: Polyamide 66 (PA 66)
• Color: Light Grey
• Flammability Rating: UL 94 V-0
• Operating Temperature: -35 °C to +105 °C
• Storage Temperature: -35 °C to +105 °C
• RoHS Compliance: Yes
• REACH Compliance: Yes
• Application: For mounting WAGO 277 series rail-mount terminal blocks
• Mounting Orientation: Vertical/Horizontal
• Number of Positions: 1 (for one terminal block)
• Insulation Material: Polyamide 66
• Approvals: VDE, UL, CSA (as part of compliant systems)

Recommendations

For optimal performance, pair the WAGO 777-305 mounting carrier with WAGO 277 series terminal blocks and appropriate DIN rail accessories. Ensure the DIN rail is properly grounded and secured. This mounting carrier is ideal for new installations or retrofitting existing systems.
