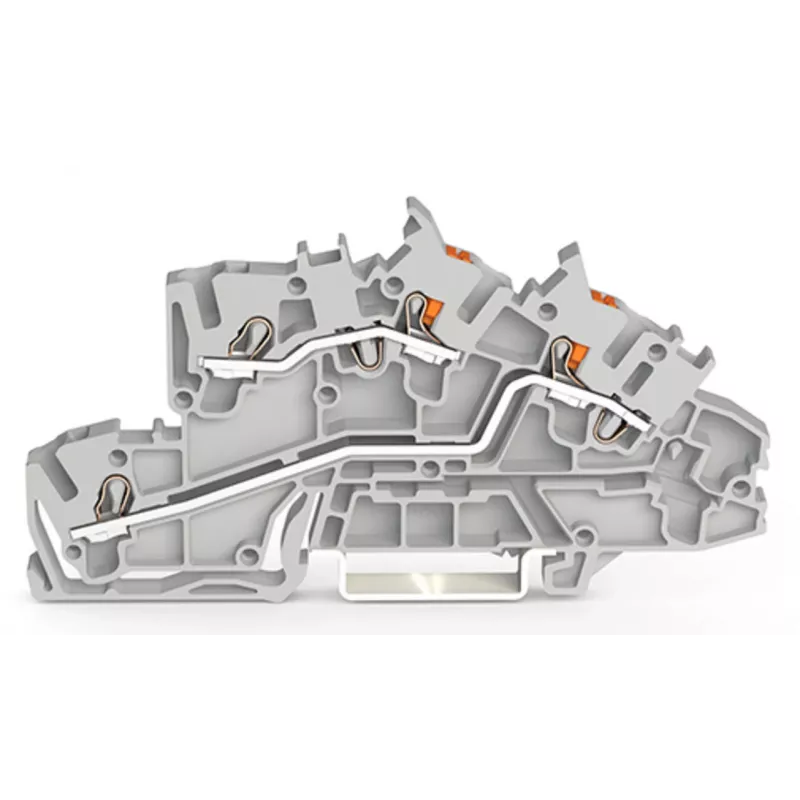

WAGO asennus-rimaliitin 2203-7542 käyttöaukolla

The WAGO Installation Level Terminal Block 2203-7542 with Actuation Opening is a high-quality multi-level installation terminal block designed for reliable and efficient electrical connections. Featuring the innovative Push-in CAGE CLAMP® connection technology, this terminal block ensures fast, tool-free wiring for solid and fine-stranded conductors. Ideal for use in distribution boards and control cabinets, it offers a compact design with two potentials and two conductors per level.

Advantages

Tool-free Push-in CAGE CLAMP® connection saves installation time and reduces labor costs. The actuation opening allows for easy operation and testing. Compact design saves space on DIN-rail (TS 35). High reliability with rated voltage up to 500 V and rated current up to 24 A. Suitable for a wide range of conductor sizes from 0.5 to 4 mm² (20-12 AWG).

Suitable for

• Installation in distribution boards and junction boxes
• Control cabinet wiring for industrial and commercial applications
• Lighting and power distribution systems
• Building automation and HVAC systems

Key specifications

• Connection Technology: Push-in CAGE CLAMP®
• Number of Conductors: 2
• Number of Potentials: 2
• Nominal Cross Section: 2.5 mm²
• Color: Gray
• Mounting Type: DIN-rail (TS 35)
• Rated Voltage (EN): 500 V
• Rated Current (EN): 24 A
• Rated Impulse Voltage: 6 kV
• Pollution Degree: 3
• Insulation Material Group: I
• Flammability Class (UL94): V0
• Operating Temperature: -35 to +85 °C
• Solid Conductor Size: 0.5 - 4 mm² (20 - 12 AWG)
• Fine-Stranded Conductor Size: 0.5 - 4 mm² (20 - 12 AWG)
• Fine-Stranded with Ferrule: 0.5 - 2.5 mm² (20 - 14 AWG)
• Stripping Length: 9 - 11 mm
• Type of Wiring: Multi-level installation terminal block

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor preparation for reliable connections. Always follow local electrical codes and regulations.
