WAGO huoltopistorasia 709-581 valkoinen 1 kpl

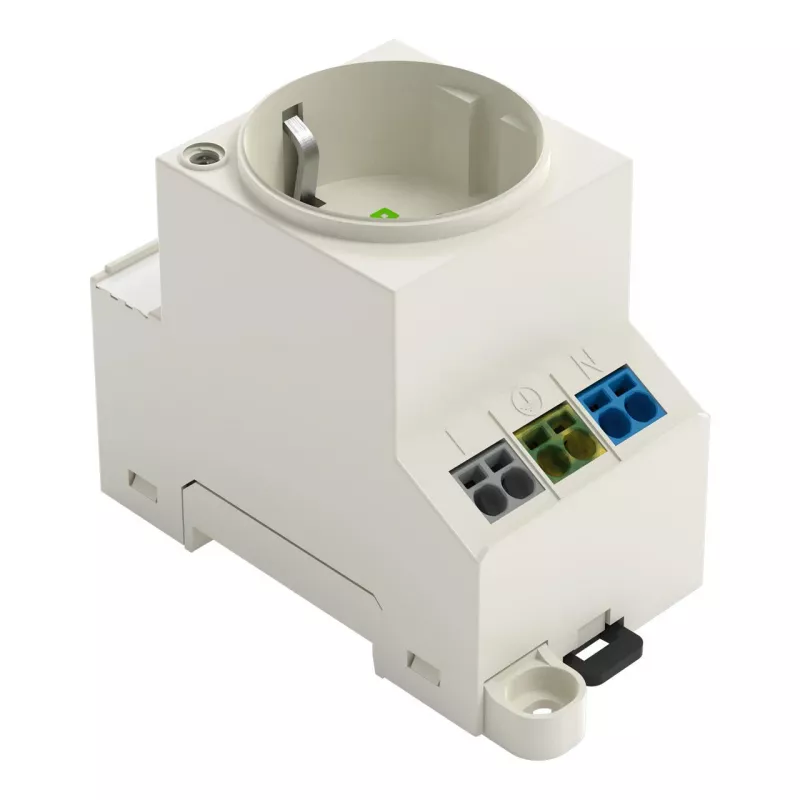

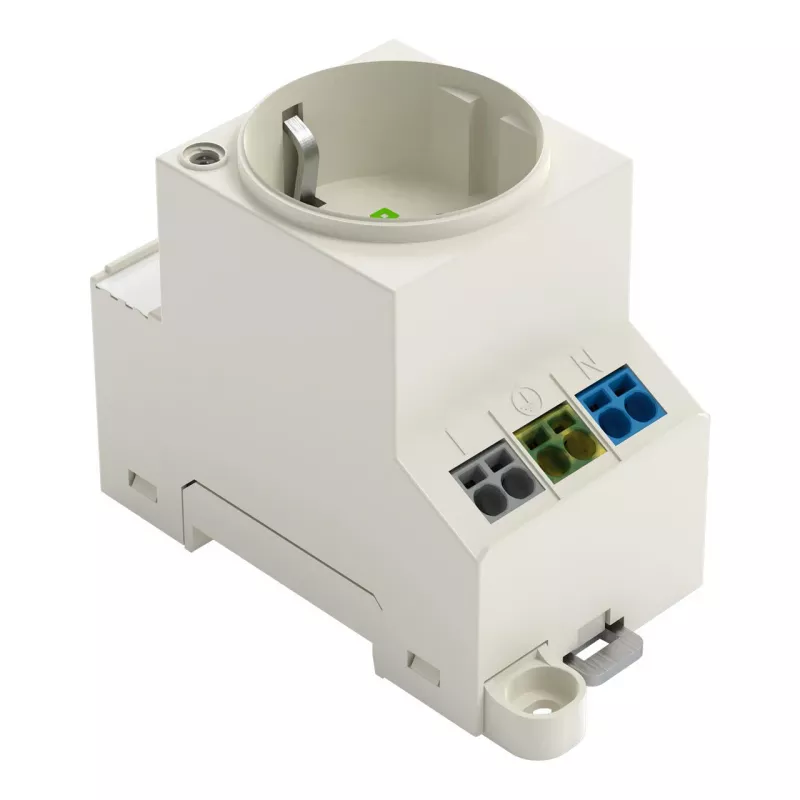

The WAGO 709-581 Service Socket Outlet is a high-quality Schuko socket designed for control cabinets and industrial applications. It provides a reliable power supply with push-in CAGE CLAMP® connection technology for fast and secure wiring.

Advantages

Push-in CAGE CLAMP® technology enables tool-free connection of solid and stranded conductors up to 2.5 mm². The compact design saves space in control cabinets, and the snap-on mounting allows easy installation on DIN rails or panels. The white polyamide housing offers IP20 protection and is durable for long-term use.

Suitable for

• Control cabinet power distribution
• Industrial machinery and equipment
• Service outlets in electrical installations

Key specifications

• Socket type: Schuko (Type F, CEE 7/3)
• Rated voltage: 250 V
• Rated current: 16 A
• Connection: Push-in CAGE CLAMP®

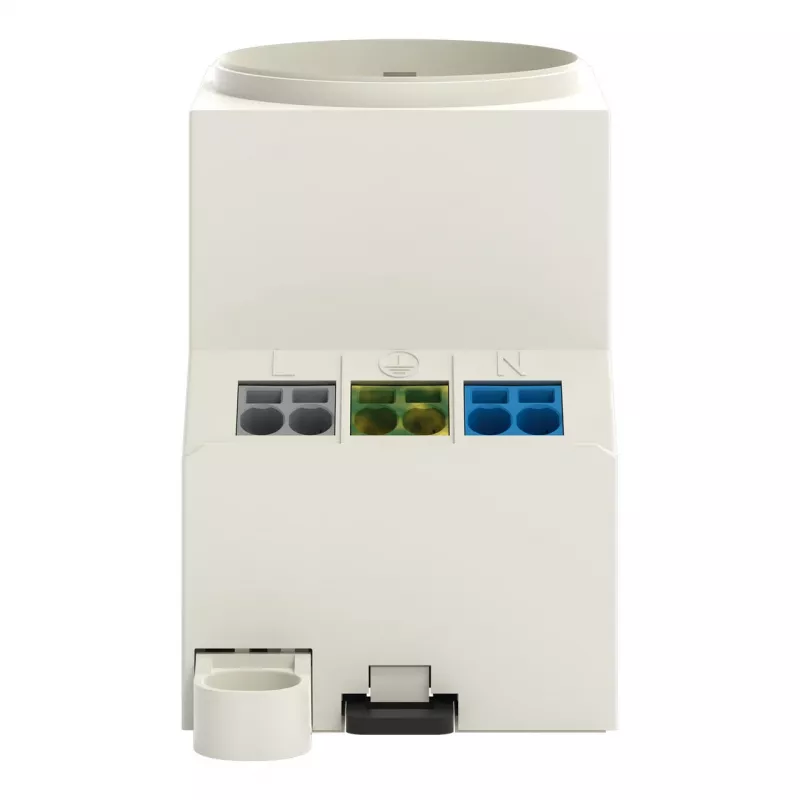

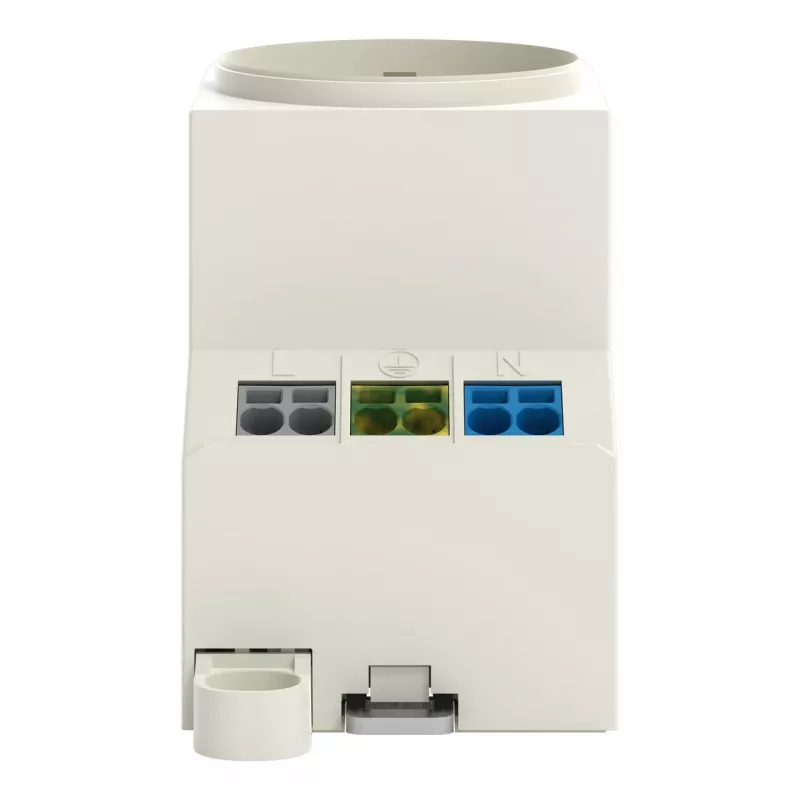

• Number of connections: 3 (L, N, PE)
• Conductor cross-section: 0.5 ... 2.5 mm² (20 ... 14 AWG)
• Mounting: Snap-on (DIN rail or panel)
• Color: White
• Protection type: IP20 (front side)
• Housing material: Polyamide (PA 6.6)
• Operating temperature: -20 ... +60 °C
• Approvals: VDE, UL, cULus, EAC, KEMA-KEUR
• Number of outlets: 1
• Series: 709 Series

Recommendations

For optimal performance, use with WAGO DIN-rail adapters or direct panel mounting. Ensure proper conductor stripping and insertion for secure connections.
