WAGO TOPJOB S päätylevy oranssi 2007-8892

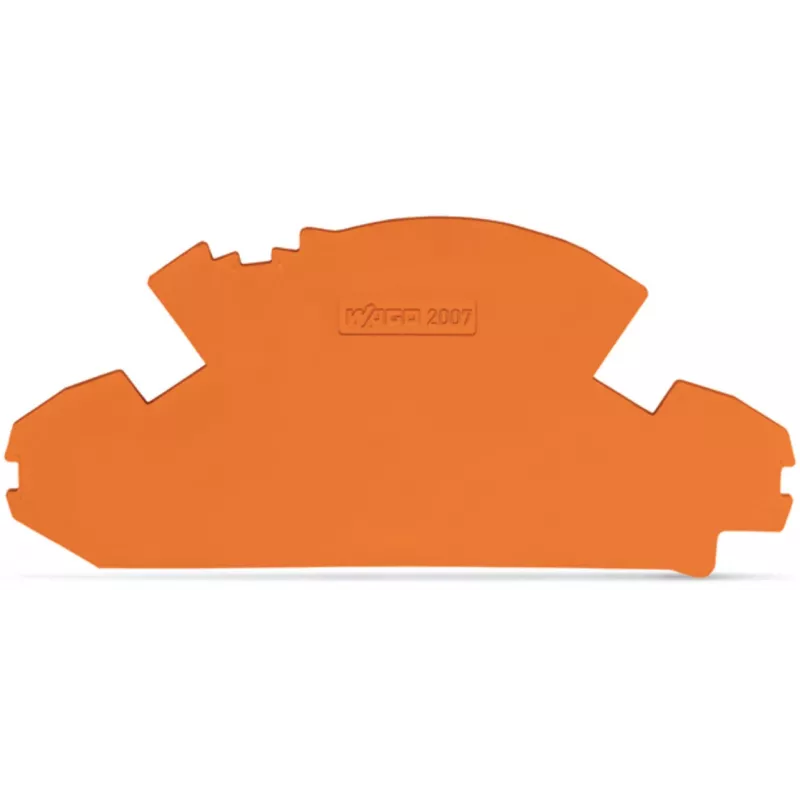

The WAGO TOPJOB S End Plate (2007-8892) is an essential accessory for terminating and insulating DIN rail terminal block assemblies. Designed for use with 2-conductor through terminal blocks, this orange end plate provides reliable electrical and visual separation, ensuring safe and organized wiring in industrial control panels and junction boxes.

Advantages

Made from high-quality Polyamide 66 (PA 66) with a UL 94 V-0 flammability rating, this end plate offers excellent thermal and mechanical resistance. Its slim 2.2 mm width saves valuable rail space, while the orange color provides clear identification for specific circuit functions. The rail-mount design allows for quick and secure attachment without tools.

Suitable for

• Industrial control cabinets
• Building automation systems
• Machine wiring enclosures
• Power distribution panels
• Railway and marine applications (with appropriate approvals)

Key specifications

• Product Type: End Plate
• Series: WAGO TOPJOB S
• Color: Orange
• Mounting Type: Rail-mount (for DIN rail terminal blocks)
• Compatibility: For 2-conductor through terminal blocks
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL 94 V-0
• Operating Temperature: -35 °C to +85 °C
• Storage Temperature: -35 °C to +85 °C
• Pollution Degree: 2
• Insulating Material Group: I
• Number of Levels: 1
• Width: 2.2 mm
• Depth (matching terminal block): 100 mm
• Height (matching terminal block): 32.9 mm
• Approvals: UL, CSA, ENEC, KEMA, EAC, RINA, GL, LR, DNV, BV, ABS, CCC, ATEX, IECEx

Recommendations

For optimal performance, use this end plate with WAGO TOPJOB S through terminal blocks rated for conductor sizes from 1.5 mm² to 300 mm². Always ensure proper installation according to manufacturer guidelines to maintain safety and compliance.
