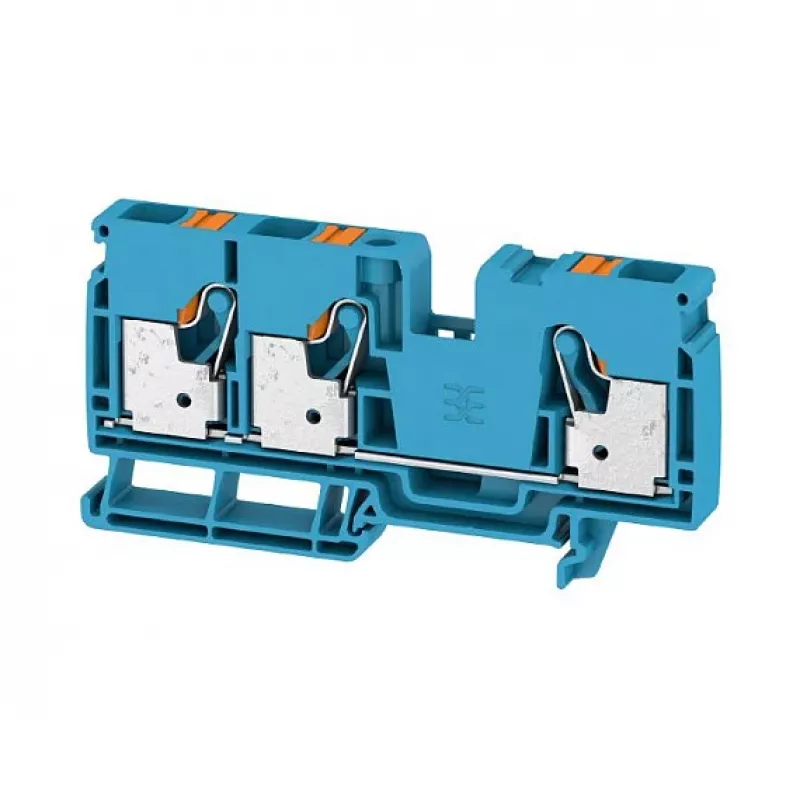

Weidmüller A3C 10 BL läpivientiliitin, ruuviliitäntä, 10 mm², sininen

The Weidmüller A3C 10 BL is a high-quality feed-through terminal block designed for reliable and secure electrical connections. With a screw connection technology and a nominal cross-section of 10 mm², it is suitable for a wide range of industrial applications. The blue insulating housing made of Wemid material ensures durability and clear identification.

Advantages

Robust screw connection for secure and vibration-resistant wiring. Compact design saves space on DIN rail. Wide operating temperature range from -50 °C to +120 °C. High rated voltage of 1000 V and current of 57 A. Easy installation on TS 35 DIN rail.

Suitable for

• Industrial control panels
• Distribution boards
• Machine building
• Power supply systems

Key specifications

• Terminal Type: Feed-Through Terminal Block
• Connection Technology: Screw Connection
• Nominal Cross-section (rigid): 10 mm²
• Nominal Cross-section (flexible): 10 mm²
• Wire Size (AWG): AWG 16 - AWG 6
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 57 A
• Number of Potentials: 1
• Number of Connections: 2
• Mounting Type: DIN Rail TS 35
• Color: Blue
• Insulating Material: Wemid
• Pollution Degree: 3
• Overvoltage Category: III
• Tightening Torque: 1.2 Nm
• Stripping Length: 14 mm
• Operating Temperature: -50 °C to +120 °C
• Standards/Approvals: IEC 60947-7-1, UL, CSA, CE

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper tightening torque. Always follow local electrical codes and regulations.
