Weidmüller AITB 2.5 L-L-PE asennusliitin, 2,5 mm², PUSH IN, beige, DIN-kisko

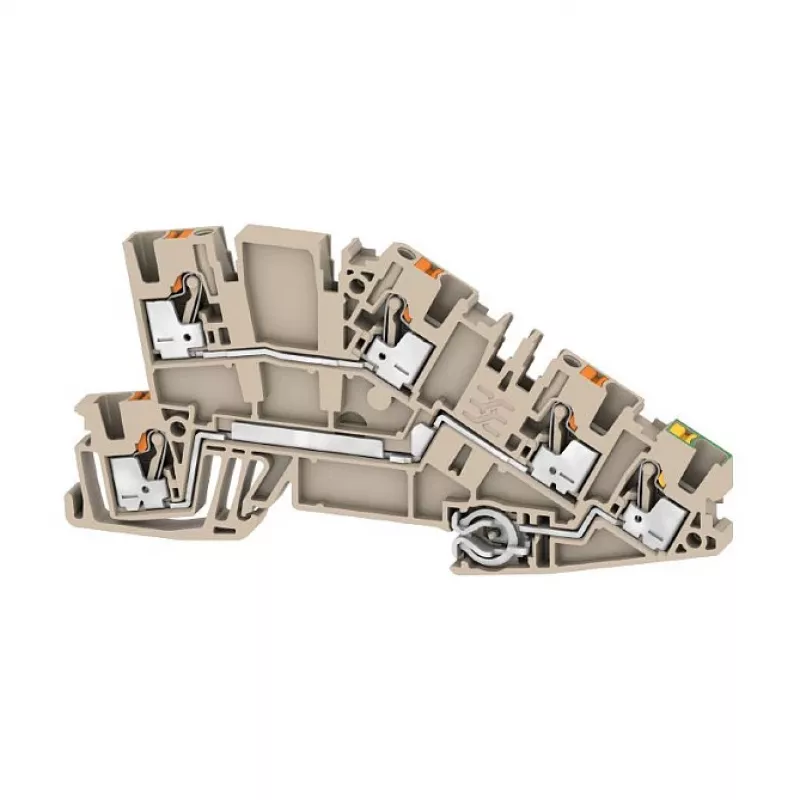

The Weidmüller AITB 2.5 L-L-PE is a high-quality installation terminal block designed for reliable and safe electrical connections. With PUSH IN connection technology, it enables fast and tool-free wiring, saving time and effort during installation. This terminal block features three potentials (L, L, PE) and six connections, making it ideal for distributing power and grounding in control cabinets and junction boxes.

Advantages

PUSH IN technology allows for direct insertion of solid conductors without tools, reducing installation time. The compact design saves space on DIN rails, and the beige color provides clear identification. The WEMID insulating material offers excellent thermal and mechanical properties, with a flammability rating of V-0 for enhanced safety.

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution in junction boxes
• Lighting and HVAC systems

Key specifications

• Rated cross-section: 2.5 mm²
• Rated voltage (IEC): 500 V
• Rated current (IEC): 24 A
• Connection technology: PUSH IN
• Number of potentials: 3 (L, L, PE)
• Number of connections: 6
• Mounting type: DIN Rail TS 35
• Color: Beige
• Insulating material: WEMID
• Flammability rating (UL 94): V-0
• Stripping length: 10 mm
• Conductor size (solid): 0.5 - 4 mm²
• Conductor size (flexible): 0.5 - 2.5 mm²
• Operating temperature: -60 °C to 130 °C
• Pollution degree: 3

Recommendations

For optimal performance, use with copper conductors and ensure proper stripping length. This terminal block is compatible with standard DIN rail accessories and can be combined with other Weidmüller components for a complete wiring solution.
