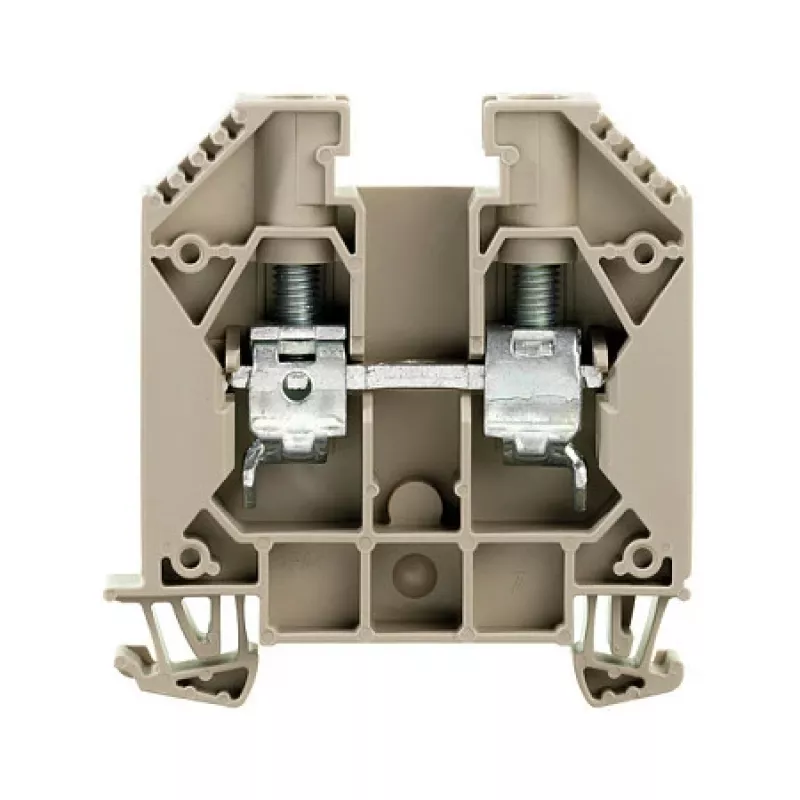

Weidmüller läpivientiliitin WDU 16, ruuviliitäntä, 16 mm², 1000 V, 76 A, tummanbeige

The Weidmüller WDU 16 feed-through terminal block is a high-quality component designed for reliable and secure electrical connections in industrial applications. With a nominal cross-section of 16 mm² and a rated voltage of 1000 V, it is suitable for a wide range of wiring tasks. The screw connection technology ensures a stable and durable contact, while the Wemid insulation material provides excellent thermal and mechanical properties.

Advantages

Robust screw connection for secure wiring; wide operating temperature range from -50 °C to +120 °C; high flammability rating UL 94 V-0 for enhanced safety; compact design saves space on DIN rail; multiple international approvals guarantee quality and reliability.

Suitable for

• Industrial control panels
• Distribution boards
• Machine building
• Automation systems
• Power supply units

Key specifications

• Connection Technology: Screw Connection
• Nominal Cross-section: 16 mm²
• Rated Voltage (IEC): 1000 V
• Rated Current (IEC): 76 A
• Number of Connections: 2
• Number of Potentials: 1
• Mounting Type: DIN Rail TS 35
• Insulation Material: Wemid (PA 66)
• Color: Dark Beige
• Operating Temperature Range: -50 °C to +120 °C
• Solid Conductor Cross-section: 0.5 - 25 mm²
• Stranded Conductor Cross-section: 0.5 - 16 mm²
• Stripping Length: 18 mm
• Tightening Torque: 2.0 - 2.4 Nm
• Pollution Degree: 3
• Flammability Rating (UL 94): V-0
• Approvals: CSA, cURus, DNV GL, EAC, KEMA, LR, RINA, UR
• Number of Levels: 1
• Product Type: Feed-through terminal block

Recommendations

For optimal performance, use with appropriate screwdrivers and ensure proper tightening torque. Suitable for use in demanding industrial environments where reliability and safety are paramount.
