Weidmüller suojamaadoitus-riviliitin WPE 50N

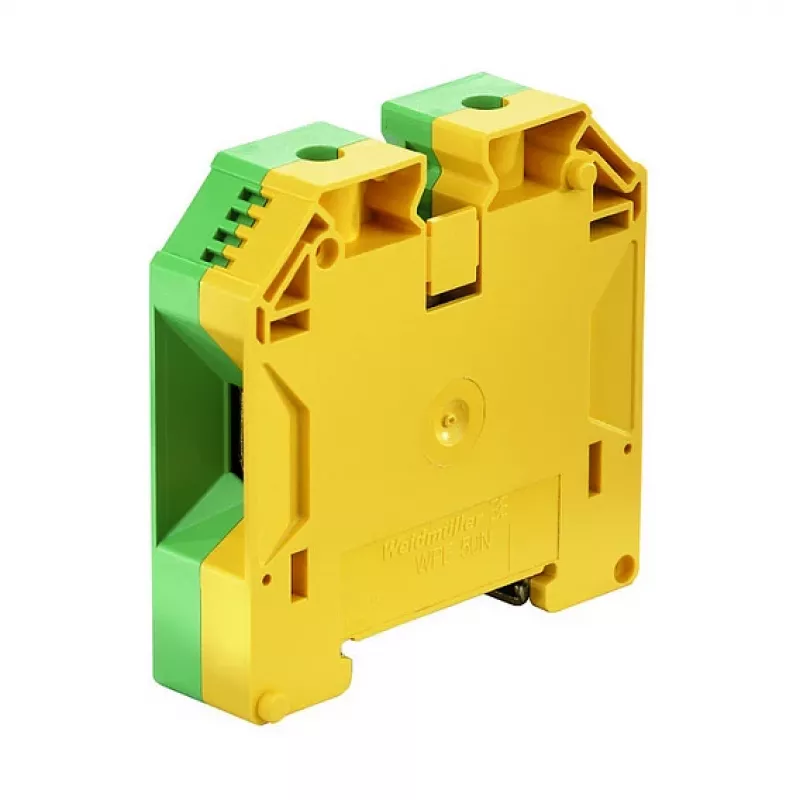

The Weidmüller WPE 50N is a high-quality protective earth (PE) terminal block from the W-Series, designed for reliable grounding and earthing applications. With a rated cross-section of 50 mm² and a robust screw connection, it ensures secure and durable connections for conductors up to 70 mm². Ideal for industrial environments, this terminal block is mounted on DIN rail TS 35 and features a distinctive green/yellow color for easy identification.

Advantages

This PE terminal block offers exceptional safety and performance. Its screw connection technology provides a reliable and vibration-resistant contact, while the wide operating temperature range (-50 °C to +120 °C) ensures suitability for demanding conditions. The Wemid insulation material (PA 66) offers high mechanical strength and excellent electrical insulation. With approvals from UL, CSA, KEMA, EAC, and cULus, it meets international standards for quality and safety.

Suitable for

• Industrial control panels and switchgear
• Power distribution systems
• Machine building and automation
• Grounding and earthing applications

Key specifications

• Terminal Type: Protective Earth (PE) Terminal Block
• Connection Technology: Screw Connection
• Rated Cross-section: 50 mm²
• Min. Conductor Cross-section (rigid): 10 mm²
• Max. Conductor Cross-section (rigid): 70 mm²
• Min. Conductor Cross-section (flexible): 10 mm²
• Max. Conductor Cross-section (flexible): 70 mm²
• Number of Connections: 2
• Number of Potentials: 1 (PE)
• Mounting Type: DIN Rail TS 35
• Color: Green/Yellow
• Insulation Material: Wemid (PA 66)
• Stripping Length: 25 mm
• Clamping Screw Torque: 4.5 - 6 Nm
• Operating Temperature: -50 °C to +120 °C
• Pollution Degree: 3
• Approvals: UL, CSA, KEMA, EAC, cULus
• Series: W-Series

Recommendations

For optimal performance, ensure proper torque settings (4.5-6 Nm) and use appropriate conductor preparation. This terminal block is part of the comprehensive W-Series, offering a wide range of accessories for flexible installation.
