Weidmüller WQV 10/2 poikittaisliitin, 2-napainen, keltainen, polyamidi, 50 kpl

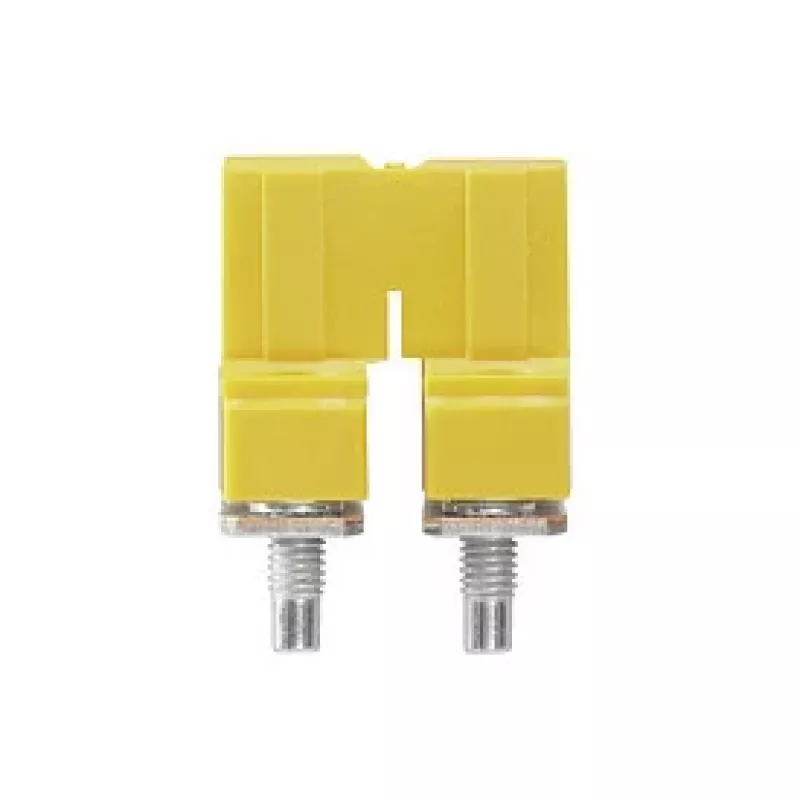

The Weidmüller WQV 10/2 is a high-quality cross-connector designed for use with Weidmüller W-Series terminal blocks. This 2-pole connector enables efficient and reliable electrical bridging between adjacent terminals, simplifying wiring and reducing installation time. Manufactured from durable polyamide (PA) with a UL 94 V-0 flammability rating, it ensures long-lasting performance and safety in demanding industrial environments.

Advantages

• Simplifies wiring by creating a common electrical connection between multiple terminals
• Saves space and reduces labor costs compared to individual wiring
• High temperature resistance from -60°C to 130°C for use in extreme conditions
• RoHS and REACH compliant, meeting environmental standards

Suitable for

• Industrial control panels and automation systems
• Power distribution and signal wiring applications
• Use with Weidmüller W-Series terminal blocks (10 mm² cross-section)

Key specifications

• Product Type: Cross-Connector
• Number of Poles: 2
• Colour: Yellow
• Insulation Material: Polyamide (PA)
• Flammability Rating: UL 94 V-0
• Operating Temperature Range: -60 to 130 °C
• Rated Voltage (IEC): 800 V
• Rated Current (IEC): 57 A
• Compatible Terminal Block Series: Weidmüller W-Series
• Nominal Cross-Section of Terminal Block: 10 mm²
• Mounting Type: Plug-in
• Packaging Unit: 50 pieces
• Approvals: CE, cULus
• Insulation Group: I (IEC 60664-1)
• Pollution Degree: 3 (IEC 60664-1)

Recommendations

For optimal performance, use with Weidmüller W-Series terminal blocks rated for 10 mm² conductors. Ensure proper installation according to manufacturer guidelines to maintain electrical safety and reliability.
