Wirewin IP55 ulkokäyttöön 19 tuuman seinäkotelo, 600x600 mm, 12U, harmaa (WCAB OUT 600X600X12U)

IP55-rated outdoor wall-mount cabinet with 12U of 19-inch rack space, built for network and telecommunications equipment in harsh environments.

Overview

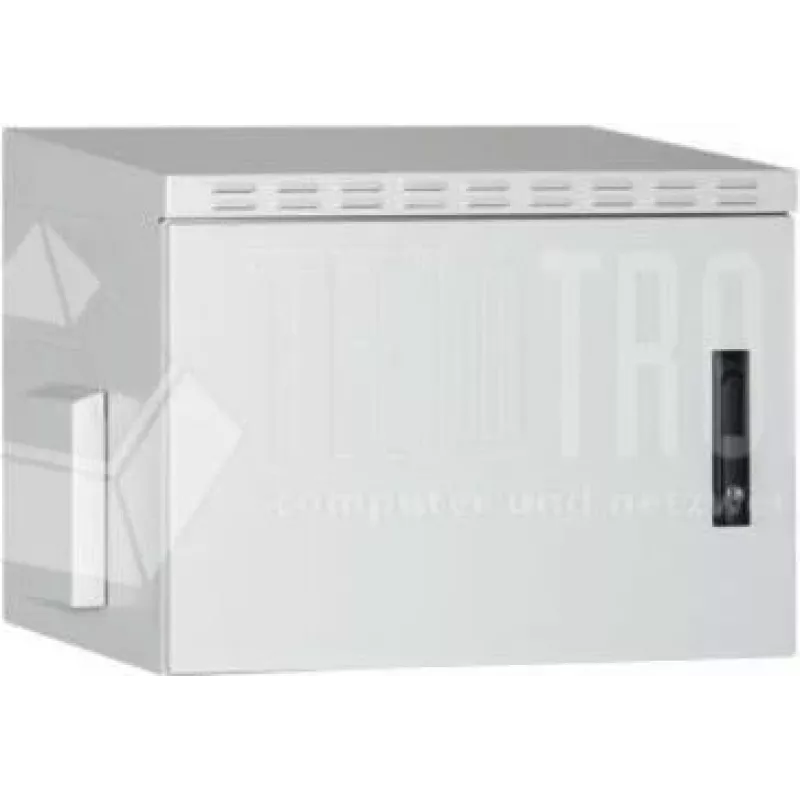

The SLIM WIREWIN WCAB OUT 600X600X12U is a robust wall-mount cabinet designed for outdoor installation. Its welded steel frame and IP55 ingress protection shield equipment from dust and water jets, making it suitable for industrial and outdoor network applications.

What stands out

• IP55 protection against dust and water
• 12U of 19-inch rack space
• Wall-mount design saves floor space
• Lockable front door for security
• Sealed cable entries top and bottom

Technical details

• External dimensions: 600 x 600 x 650 mm (W x D x H)
• Material: Steel
• Colour: Grey (RAL 7035)
• Mounting type: Wall mount
• Door type: Single front door
• Locking mechanism: Key lock
• Cable entry: Top and bottom, sealed
• Ventilation: Passive with filtered vents
• Construction: Welded frame
• Load capacity: 60 kg
• Side panels: Fixed
• 19" profiles: Adjustable depth
• Earthing kit: Included

Our verdict

A reliable choice for outdoor network deployments, offering solid protection and ample rack space in a compact wall-mount form factor.
