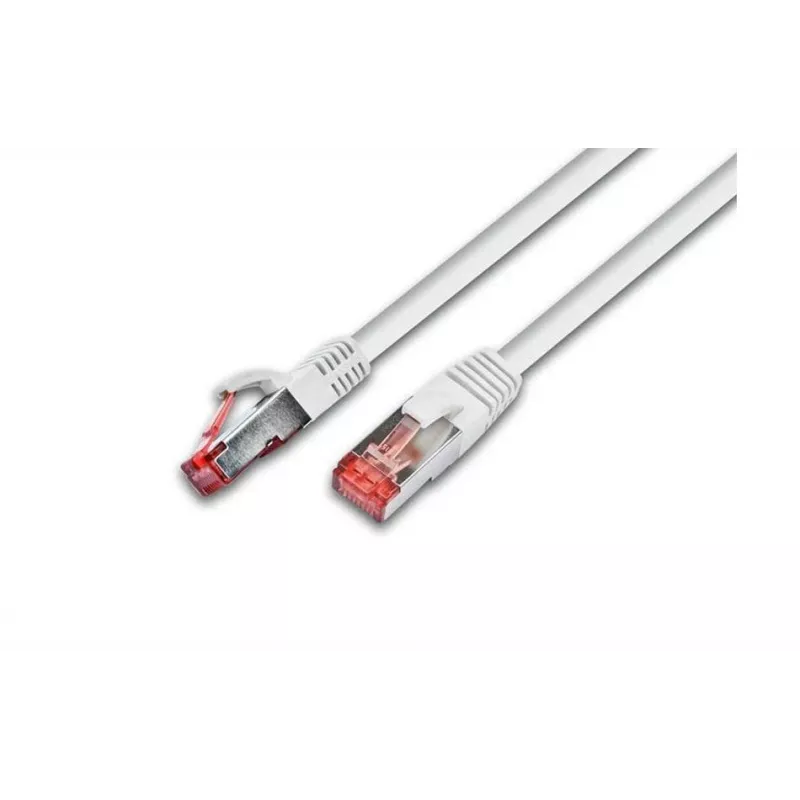

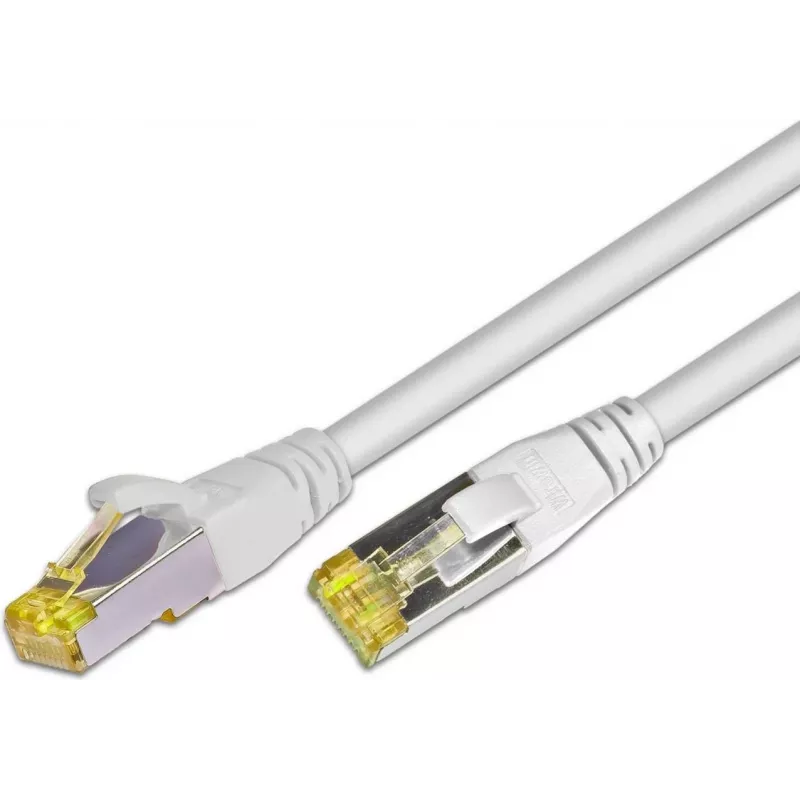

Wirewin PKW-PIMF-KAT6A -verkkokaapeli valkoinen 20 m Cat6a S/FTP (S-STP) PKW-PIMF-KAT6A 20.0 WS

Connect high-bandwidth devices in your data center or office with this 20-meter Cat6a network patch cable. The white S/FTP (S-STP) cable is ideal for 10 Gigabit Ethernet links where signal integrity is critical, such as server-to-switch connections or backbone runs in structured cabling systems.

Key specifications

• Category: Cat6a
• Length: 20 m
• Colour: White
• Shielding: S/FTP (PIMF) – overall braid shield, individual foil shield per pair
• Connectors: RJ45 male to RJ45 male
• Data rate: up to 10 Gbps
• Bandwidth: 500 MHz
• Conductor: stranded copper, AWG 27/7
• Jacket: PVC
• Wiring standard: TIA/EIA 568B
• Impedance: 100 Ohm

Why choose it

The S/FTP shielding with individually foiled pairs (PIMF) provides excellent protection against alien crosstalk and electromagnetic interference, ensuring reliable 10GBASE-T performance over the full 20-meter length. The stranded copper conductors maintain flexibility for easy routing in tight spaces.

Ideal use cases

• Data center uplinks
• High-speed workstation connections
• Network backbone runs
• Server and storage networking

Good to know

Backward compatible with Cat6, Cat5e, and Cat5 networks. The cable meets Cat6a specifications for 500 MHz bandwidth, making it suitable for demanding network environments.
