WLAN-reititin TENDA F3 300 Mbit/s IEEE 802.11b IEEE 802.11g IEEE 802.11n

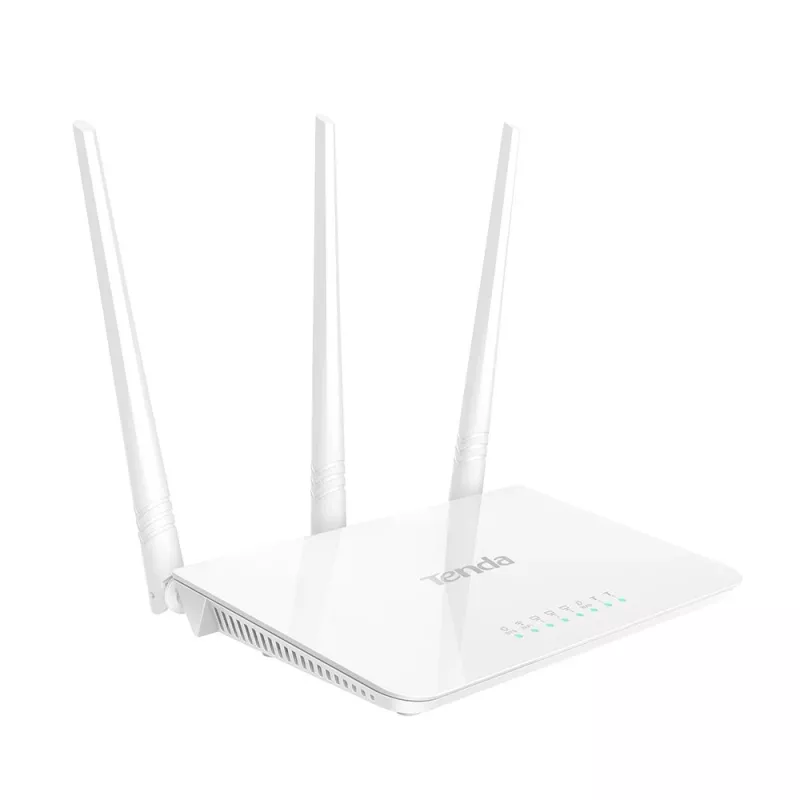

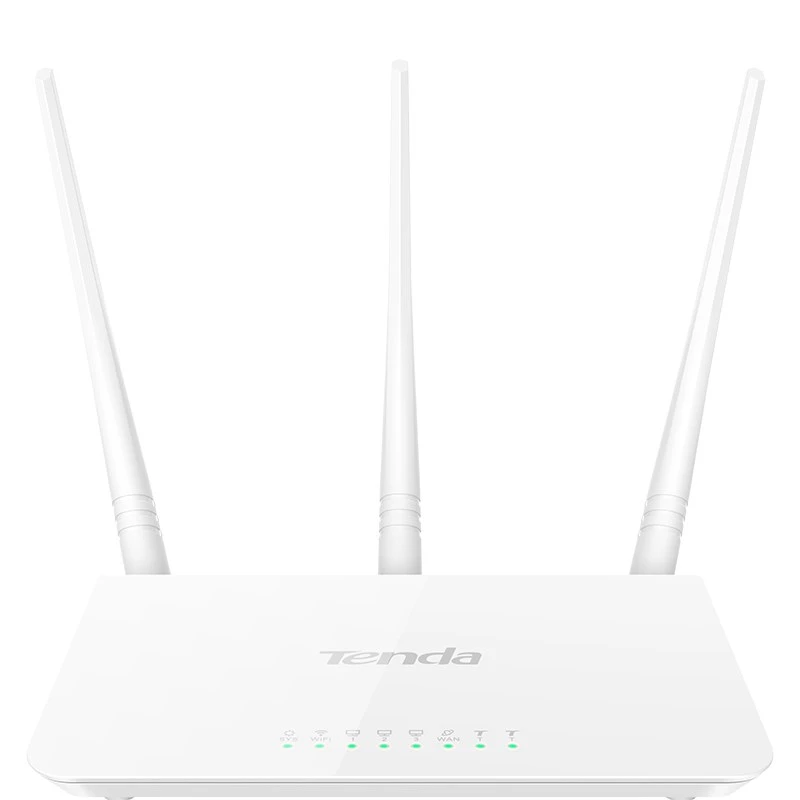

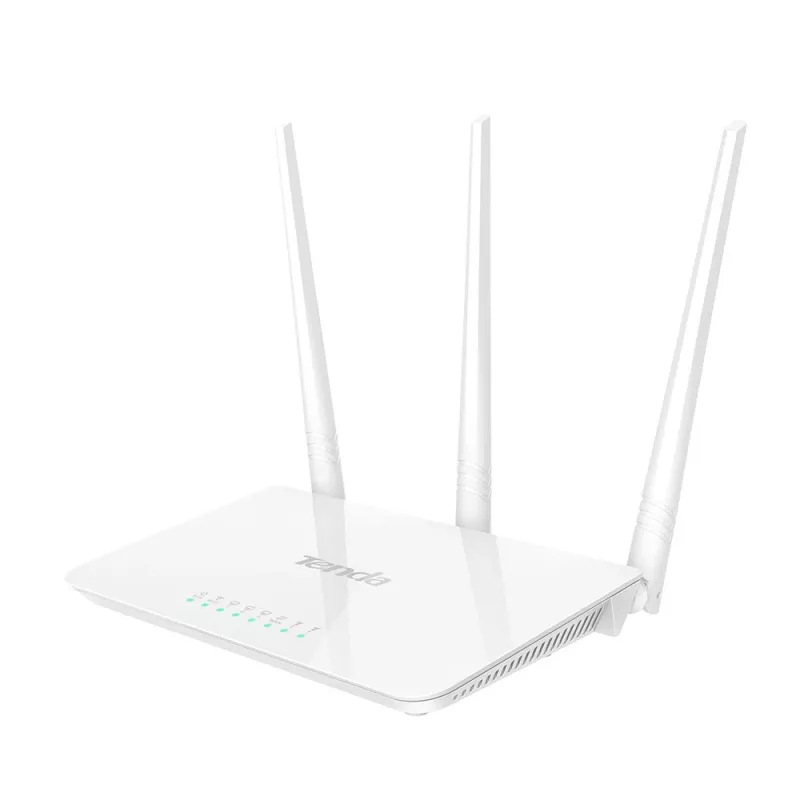

TENDA F3 is a 300 Mbps wireless router designed for home and small office networking. It supports IEEE 802.11b/g/n (Wi‑Fi 4) standards, offers one WAN and three LAN 10/100 Mbps ports, and uses three external antennas to extend coverage up to 200 m² for stable connections across multiple devices.

Advantages

The router combines a Broadcom-based chipset with three 5 dBi omni-directional antennas to provide stable wireless performance suitable for HD video streaming, music streaming, photo uploads and video calls. A straightforward setup interface allows quick configuration without technical knowledge, while IP-based bandwidth control helps allocate network resources across connected devices.

Suitable for

• Small and medium-sized homes
• Streaming HD video and online video calls
• Web browsing, music streaming and file uploads
• Multiple-device households requiring basic QoS/bandwidth allocation

Key specifications

• Wi‑Fi standard: Wi‑Fi 4 (IEEE 802.11n/g/b)
• Maximum wireless rate: 300 Mbps
• Antennas: 3 external 5 dBi omni-directional antennas
• WAN/LAN: 1 WAN port, 3 LAN ports (10/100 Mbps, Fast Ethernet)
• Product colour: White
• Manufacturer model: TENDA F3 (MPN: F3, EAN: 6932849427141)

How to use

Connect the modem to the router WAN port and power on the device. Use a computer or mobile device to join the router’s default Wi‑Fi network or connect via Ethernet to access the web setup page. Follow the on-screen wizard to select your internet connection type and set a Wi‑Fi name (SSID) and password. Optionally configure IP-based bandwidth control to prioritise traffic for specific devices.

Recommendations

Place the router centrally in the home and keep antennas upright to maximise coverage. For best performance, position the router away from large metal objects and other electronics that may cause interference. Update firmware when available and use WPA2 security with a strong password.
