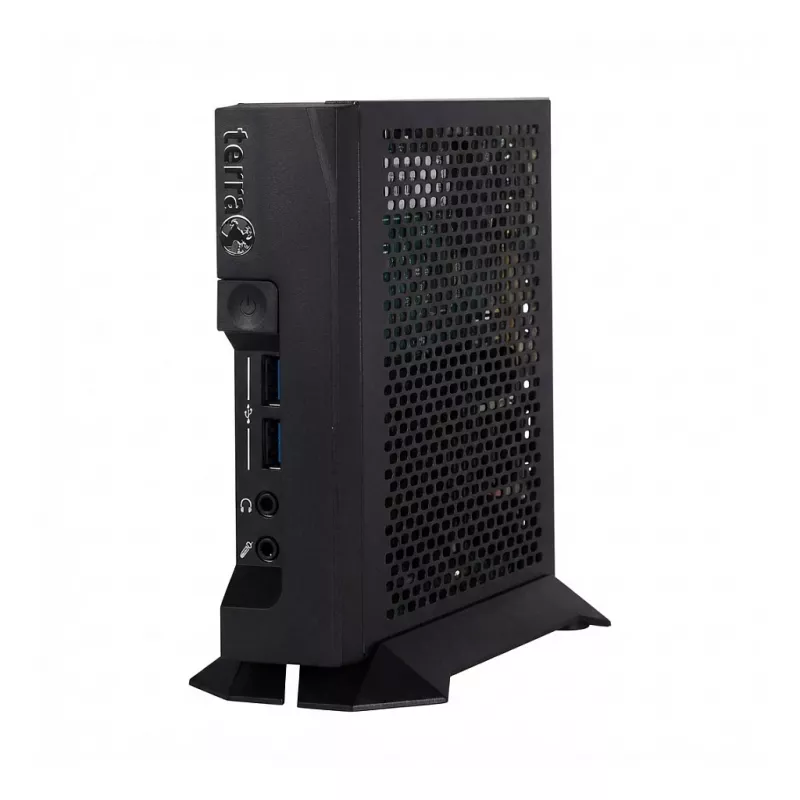

Wortmann TERRA PC-Mini 3550 tuuletinton, Intel Processor N97, Windows 11 Pro

The Wortmann TERRA PC-Mini 3550 is a fanless mini PC powered by an Intel Processor N97 with Windows 11 Pro pre-installed. It features 8 GB DDR5 memory, a 120 GB SSD, and integrated Intel UHD Graphics 605, making it suitable for business and digital signage applications.

Key features

• Fanless cooling for silent operation
• Compact mini format chassis
• Intel Processor N97 with 6M Cache, up to 3.60 GHz
• Windows 11 Pro operating system
• 8 GB DDR5 memory (1 x 8 GB, max 32 GB)
• 120 GB SSD (SATA-3)
• Intel UHD Graphics 605 (800 MHz) with dual DisplayPort support
• Wi-Fi 6 and Bluetooth 5.2
• Ethernet LAN with Realtek controllers
• TPM 2.0 and Kensington lock support
• 24-7 ready (temporary fan-maintenance required)

Specifications

• Brand: Terra
• MPN: 1000047
• Processor: Intel Processor N97, 6M Cache, up to 3.60 GHz
• Processor cores: Quad-Core (4 Core)
• Processor socket: Embedded in SOC
• Operating system: Windows 11 Pro
• Memory: 8 GB DDR5, PC4800 MHz, 1 x 8 GB, max 32 GB, 1 slot
• Storage: 120 GB SSD, SATA-3, 1x M.2 Key B socket (2242/2260/2280) SATA
• Graphics: Intel UHD Graphics 605 (800 MHz), 2x DisplayPort 1.2 (max. 4096x2160 @ 60Hz), dual-monitoring support
• Audio: 5.1 HD Audio Codec
• Wi-Fi: Intel Wi-Fi 6 AX201, Wi-Fi 6
• Bluetooth: 5.2
• Ethernet: 1x Realtek RTL8111H (10/100/1000 Mbps, WOL/PXE), 1x Realtek RTL8125BG-CG (10/100/1000/2500 Mbps)
• Front ports: 1x USB 3.2 Type A, 1x USB-C 3.2, 1x Audio
• Rear ports: 1x COM, 2x DP, 4x USB 3.2 Type A, 2x RJ45, DC-in, Kensington
• Power supply: External fanless power supply, AC 100/240 V (50/60 Hz)
• Power consumption: 24 W max input, standby 2.0 W (S3), 0.2 W (S5)
• Operating temperature: 0 °C - 60 °C
• Operating humidity: 10 - 80% (non-condensing)
• Chassis type: Mini format
• Dimensions (W x D x H): 14.7 (18.8) cm x 16.5 (17.5) cm x 3.6 (4.2) cm
• Weight: 0.9 kg
• Certification: ISO 9001, Assembled in Germany, EnergyStar 8.0, EN60950, EN55022, EN55024, EN61000-3-2/3, 89/336/ECC
• Compliance: CE, PC2001, SMBios (DMI) 2.3, PCI 2.2, WFM 2.0
• Special features: Kensington Lock, Supports PowerOn after Power loss, TPM 2.0, Windows Autopilot-ready
• Included accessories: Quick Install Guide (DE/EN), Driver CD, power supply, Europlug CEE7/16 1.8 m, Pedestal for vertical use
• Optional: VESA mounting Kit, keyboard, mouse
