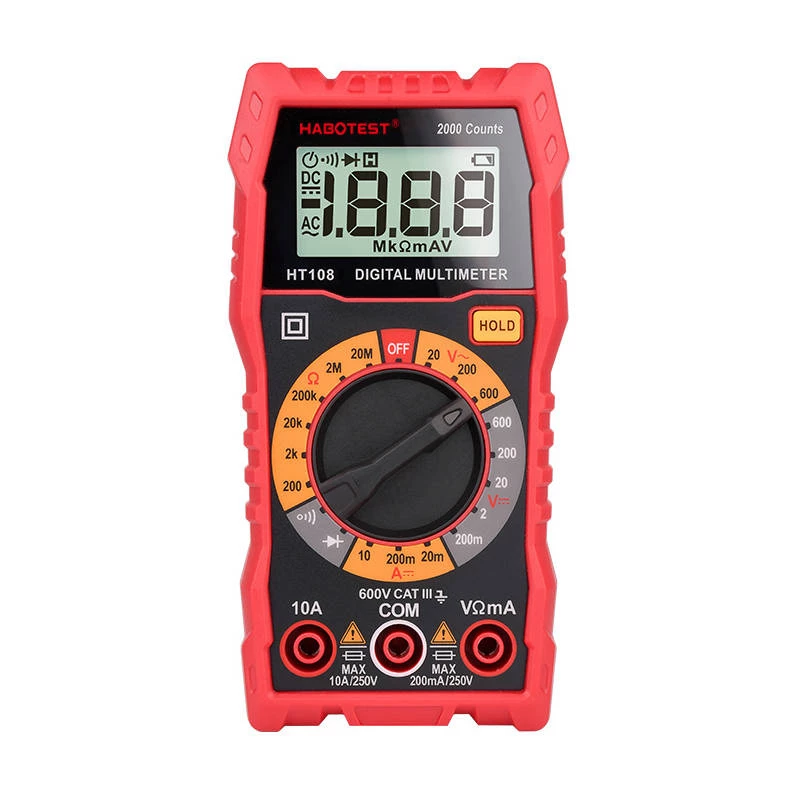

Yleismittari Habotest HT108L – DC 600 V asti, AC 600 V asti, 10 A alue

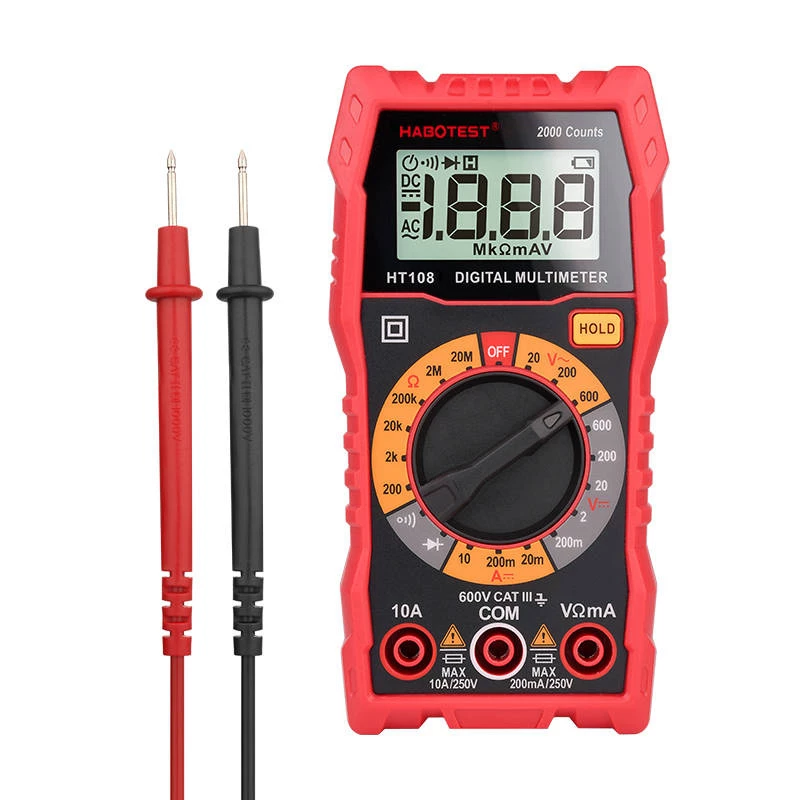

Digital multimeter for DC up to 600V and AC up to 600V, designed for general electrical measurements. The compact handheld device offers multiple functions including DC current and voltage, AC voltage, resistance, diode test and continuity check. The instrument features a backlit display, data hold, true RMS measurement, low battery indicator and an automatic power-off function. It includes test leads; batteries are not supplied.

Advantages

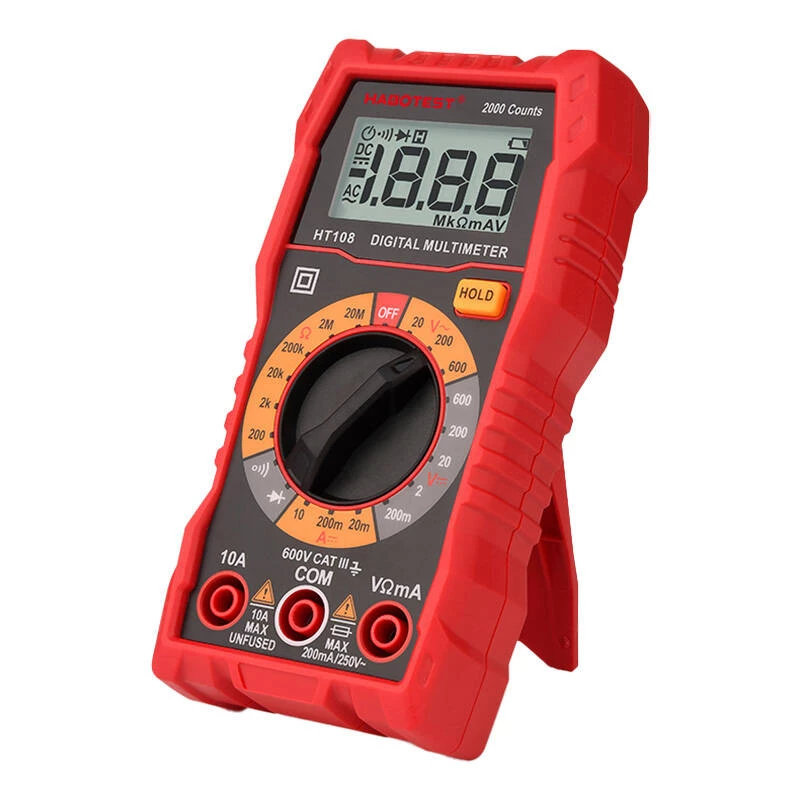

The multimeter combines several measurement modes in a single portable unit with a 2000-count display for clear readings. Ergonomic housing and a fold-out stand improve handling and viewing angle. True RMS capability provides more accurate AC measurements, while backlight and data hold increase usability in varied lighting conditions. Compact and lightweight construction makes it convenient for field or workshop use.

Key specifications

• DC voltage ranges: 200 mV, 2 V, 20 V, 200 V, 600 V; accuracy ±(1.0%+5)
• AC voltage ranges: 20 V, 200 V, 600 V; accuracy ±(1.0%+5)
• DC current ranges: 20 mA, 200 mA; accuracy ±(1.5%+5)
• DC current 10 A range; accuracy ±(2.0%+5)
• Resistance ranges: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ; accuracy ±(1.2%+5)
• Counts: 2000
• Display: backlit
• Continuity test: yes
• Diode test: yes
• Data hold: yes
• True RMS: yes
• Auto power off: yes
• Range selection: manual (auto/manual switch)
• Power supply: 2 × 1.5 V AAA batteries (not included)
• Weight: 91 g; Size: 151 × 75 × 48 mm
• Safety: EN61010-2-030, EN61010-2-033, CAT III 600 V
• Warranty: 24 months

How to use

Insert two 1.5 V AAA batteries, connect the supplied test leads to the meter and to the circuit under test following polarity markings. Select the required measurement function and appropriate range; for AC measurements use the AC voltage function. Use the stand to position the meter for easier reading and press the data hold button to freeze the displayed value if needed. Observe safety category limits and never exceed the rated input values.

Recommendations

For safe operation, verify battery condition before use, inspect test leads for damage and avoid measuring voltages above the CAT III 600 V rating. Store the multimeter in a dry, dust-free place and replace batteries when the low battery indicator appears.
