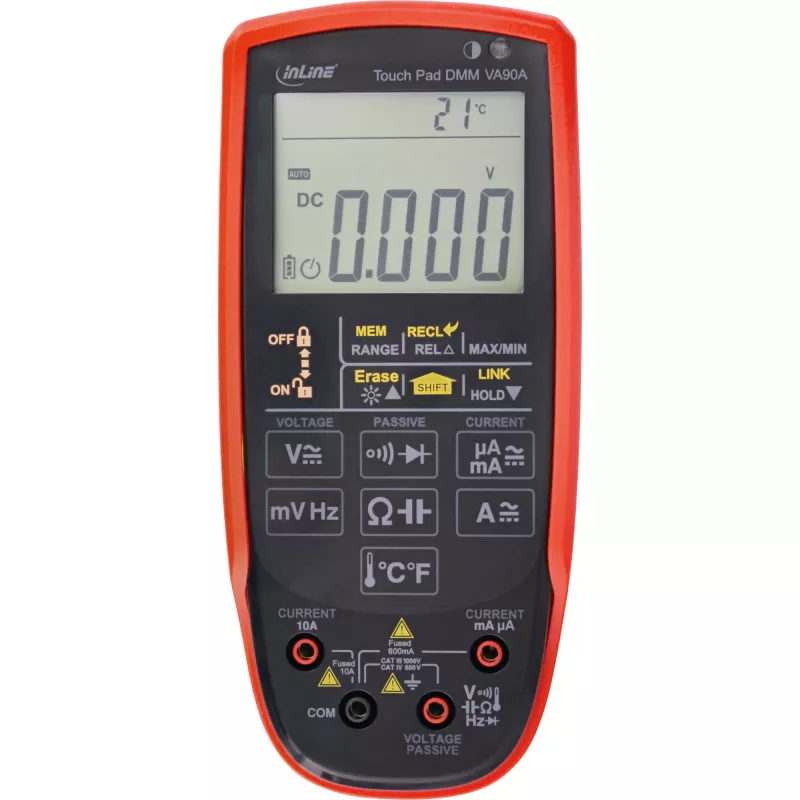

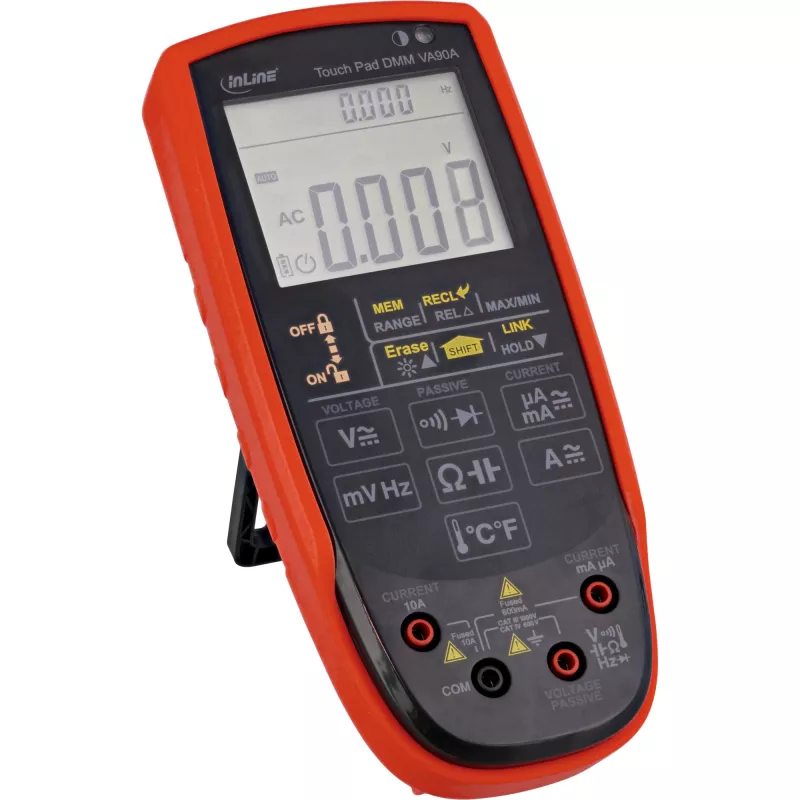

InLine 43127 yleismittari kosketuslevyllä ja valaistulla näytöllä, CAT III/CAT IV

The InLine 43127 is a digital multimeter with touchpad operation, a large 2x4 digit double value display and background illumination. It offers protection class CAT III 1000V / CAT IV 600V and features digital calibration.

Key features

• Touchpad operation – no mechanical switching of measuring ranges
• Large 2x4 digit double value display, resolution 6000, dimensions approx. 62 x 50 mm, with LED backlight
• 2-colour backlighting to display various operating states
• Automatic AC / DC switching
• Digital calibration
• Protection class CAT III 1000V / CAT IV 600V

Specifications

• AC and DC voltage measurement: 6 / 60 / 600 / 1000 V
• Current measurement: 600 / 6000 µA, 60 / 600 mA, 6 / 10 A
• Resistance measurement: 600 Ohm, 6 k / 60 k / 600 k Ohm, 6 M / 60 M Ohm
• Capacitance measurement: 6 n / 60 n / 600 n, 6 µ / 60 µ / 600 µ, 6 m / 60 mF
• Continuity check: 0~600.0 OHM
• Diode test: 0~3.0 V
• Frequency and duty cycle measurement: 0~999.9 kHz
• Temperature measurement: -200 to 1000 °C
• Display: Large 2x4 digits double value display, resolution 6000, dimensions approx. 62 x 50 mm, with LED backlight
• Article dimensions: 19.5 cm (length) x 9 cm (width) x 4 cm (height)
• Net weight: 0.358 kg

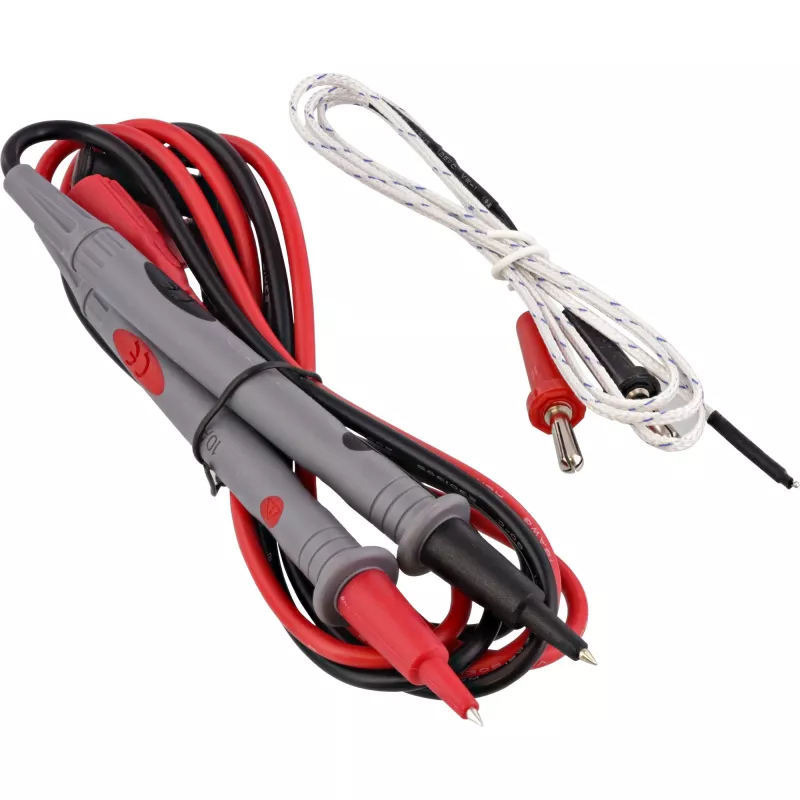

• Delivery includes: multimeter, test strips, temperature sensor, manual, batteries (2x 1.5V type AA)
• Country of origin: Taiwan
• Brand: InLine
• MPN: 43127
